SETUP INSTRUCTIONS (continued)
Connecting the system to other types of pool
After you have connected the Saltwater System to the pump, connect it to the pool. This is
depicted in Drawings #1 and #2.
Following are the common connection types:

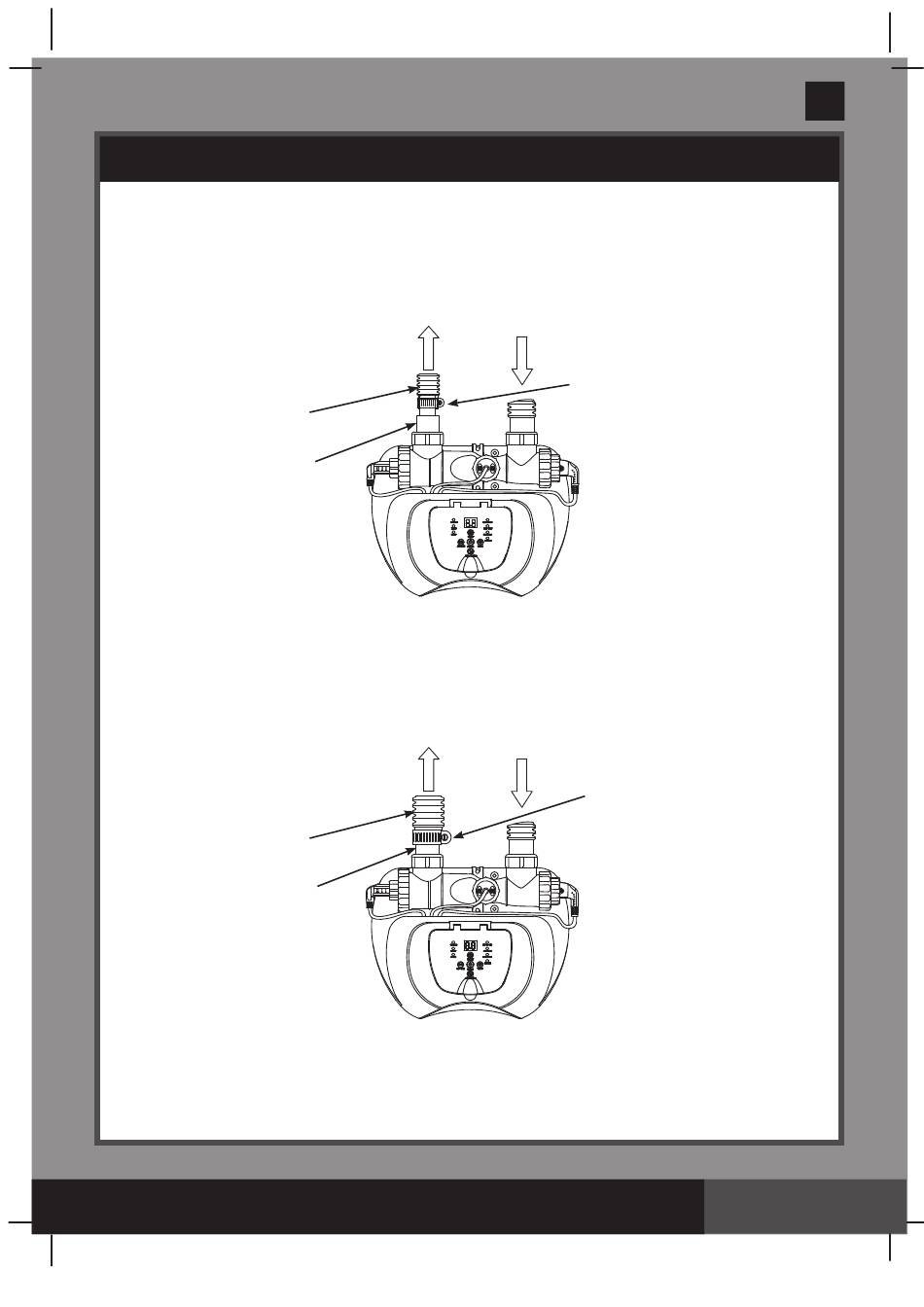

Connection to 1-1/4" (32mm) connectors:
ID 1-1/4" (32mm)
HOSE
1
1. Connect the adaptor A (1) to the electrolytic cell (3) outlet. Tighten securely.
2. The adaptor A (1) is now fitted to the Saltwater System. The following step is to connect the
water return hose to the adaptor A (1) with a hose clamp.
Connection to 1-1/2" (38mm) connectors without thread:
ID 1-1/2" (38mm)
HOSE
1
1. Connect the adaptor A (1) to the electrolytic cell (3) outlet. Tighten securely.
2. With the adaptor A (1) fixed to the Saltwater System, connect the water return hose to the
adaptor, using a large hose clamp.
SAVE THESE INSTRUCTIONS
SALTWATER SYSTEM WITH E.C.O.
(ELECTROCATALYTIC OXIDATION)
SALTWATER SYSTEM WITH E.C.O.
(ELECTROCATALYTIC OXIDATION)
English
HOSE CLAMP
LARGE HOSE CLAMP
