Installation and connection
SKM 2-00
3 Installation and connection
The SKM 2-00 can either be operated in a headend basic unit SKS x-xx or in stand alone mode.
3.1 Installation and connection in a headend base unit
If the SKM 2-00 should operate in a headend basic unit SKS x-xx, the twin module is plugged in the output
collection field  and fastened with screws. Each free slot may be used. The power supply of the module
is provided by the output collection field.
Before inserting or changing a module, pull the mains plug of the headends basic unit from the socket!
Ground the base plate in order to avoid dangerous overvoltages according to EN 50083-1, EN 60728-
11:2010 (attention: risk of fire/death)
For detailed information on the headend base unit, refer to whose operating instructions.
1
base plate without modules
base plate fully equipped

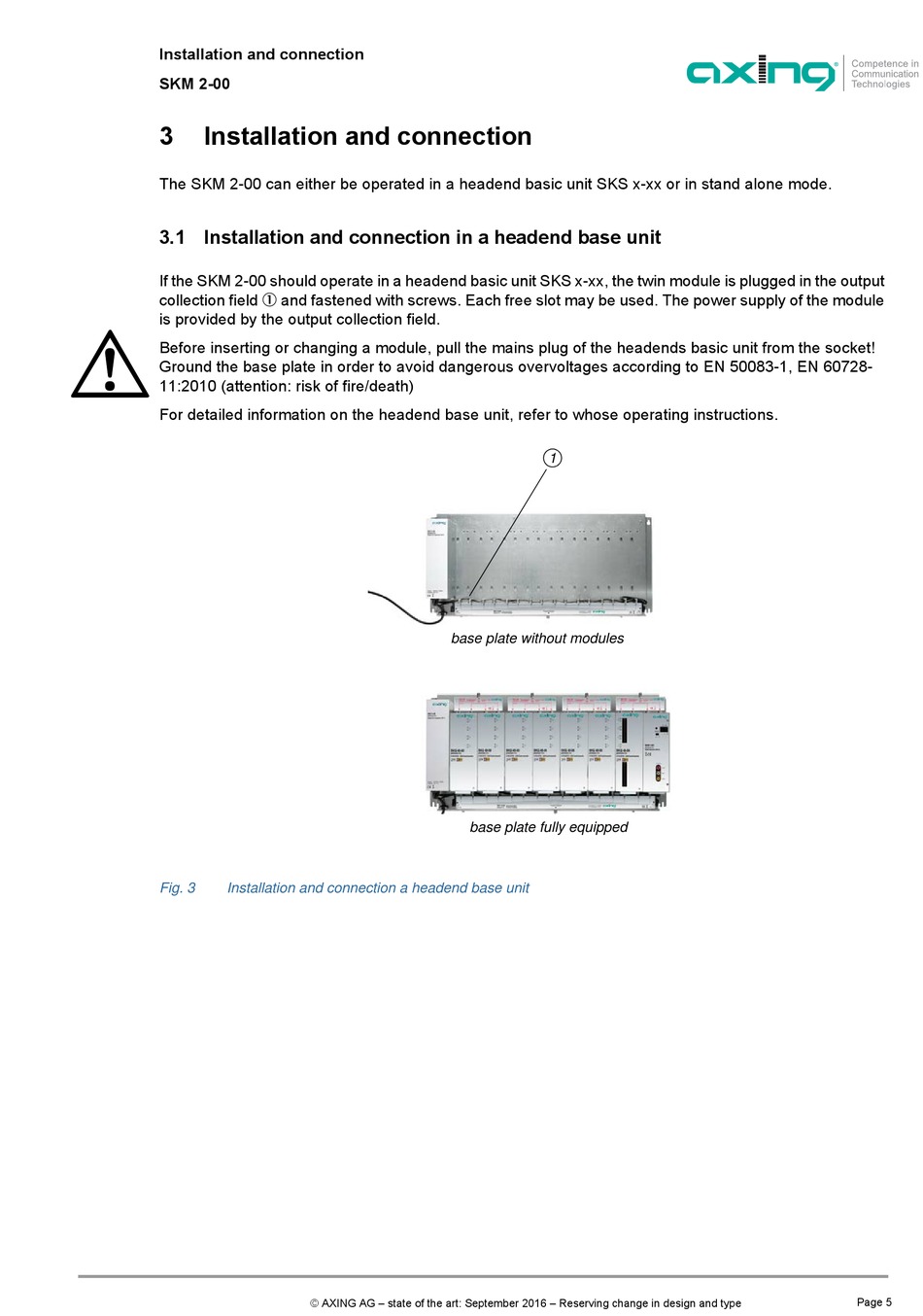

Fig. 3 Installation and connection a headend base unit
Page 5
