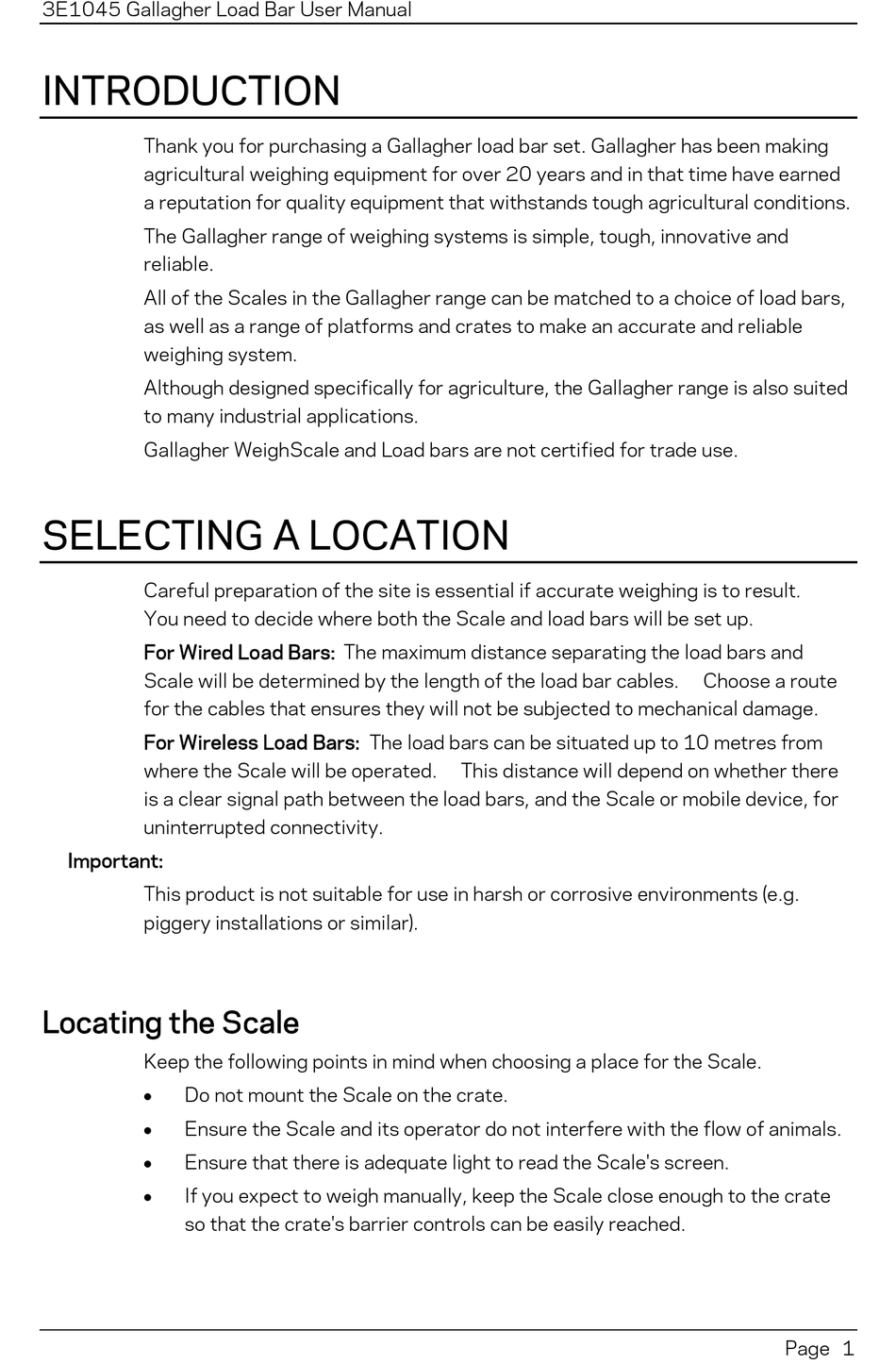

3E1045 Gallagher Load Bar User Manual
INTRODUCTION
Thank you for purchasing a Gallagher load bar set. Gallagher has been making
agricultural weighing equipment for over 20 years and in that time have earned
a reputation for quality equipment that withstands tough agricultural conditions.
The Gallagher range of weighing systems is simple, tough, innovative and
reliable.
All of the Scales in the Gallagher range can be matched to a choice of load bars,
as well as a range of platforms and crates to make an accurate and reliable
weighing system.
Although designed specifically for agriculture, the Gallagher range is also suited
to many industrial applications.
Gallagher WeighScale and Load bars are not certified for trade use.
SELECTING A LOCATION
Careful preparation of the site is essential if accurate weighing is to result.
You need to decide where both the Scale and load bars will be set up.
For Wired Load Bars: The maximum distance separating the load bars and
Scale will be determined by the length of the load bar cables.
for the cables that ensures they will not be subjected to mechanical damage.
For Wireless Load Bars: The load bars can be situated up to 10 metres from
where the Scale will be operated.
is a clear signal path between the load bars, and the Scale or mobile device, for
uninterrupted connectivity.
Important:
This product is not suitable for use in harsh or corrosive environments (e.g.
piggery installations or similar).
Locating the Scale
Keep the following points in mind when choosing a place for the Scale.
Do not mount the Scale on the crate.

Ensure the Scale and its operator do not interfere with the flow of animals.

Ensure that there is adequate light to read the Scale's screen.

If you expect to weigh manually, keep the Scale close enough to the crate

so that the crate's barrier controls can be easily reached.
This distance will depend on whether there
Choose a route
Page 1
