EN

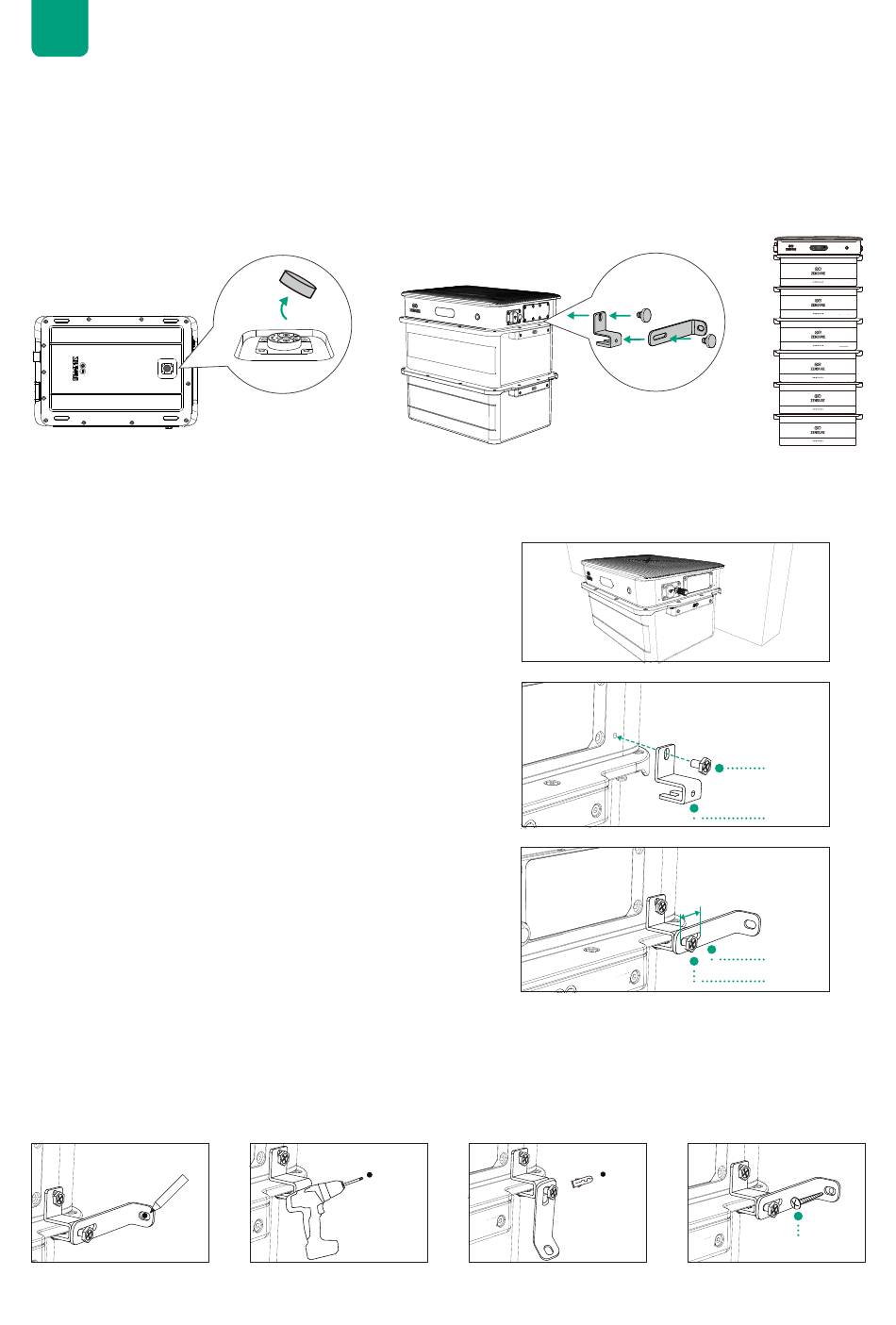

1. Remove the Protective Cover
Remove the battery terminal protective cover at the bottom of the SolarFlow 2400 AC.
2. Connect to the Battery
Place the SolarFlow 2400 AC on AB3000X, ensuring the battery cable terminals lock into place. A SolarFlow
2400 AC can be connected to up to 6 AB3000X batteries, reaching a maximum capacity of 17,280 Wh.
• Do not disconnect them during the charging/discharging process.
• Do not touch the metal pins of the ports with your hands or other objects. Gently clean them with a dry cloth
when necessary.
8.4 Mounting AB3000X Batteries
This is especially important when stacking multiple batteries, as the mounting kit (included with the SolarFlow
2400 AC but not in the AB3000X package) is designed to secure only the topmost battery in the stack, ensuring it
remains stable and firmly in place.
Step 1: Positioning
• Place the AB3000X and SolarFlow 2400 AC unit in the
designated installation location, ensuring adequate clearance
between the device and the wall.
Step 2: Securing Part 1
• Align the slots on Part 1 with the mounting rivets on the
edge of the AB3000X and press down firmly until locked
in place.
• Insert Screw 3 through the top hole of Part 1, aligning it
with the mounting hole at the base of the SolarFlow unit,
and tighten using a hex screwdriver (not included).
Step 3: Adjusting and Securing Part 2
• Insert Screw 1 into the sliding rail of Part 2 and loosely
attach it to the lower hole of Part 1.
• Slide Part 2 horizontally until it is perpendicular to the wall
and its mounting surface sits flush against it.
Step 4: Wall Preparation and Final Fixing
• Mark the positions of the mounting holes where Part 2 contacts the wall, then move Part 2 aside to create
space for drilling.
• Use a power drill (not included; M6 drill bit recommended) to drill holes at the marked spots and insert plastic
wall anchors.
• Secure Part 2 by inserting Screw 2 through its mounting holes and tightening it into the wall anchors. Then, fully
tighten Screw 1 to ensure the device is stable and secure.
8
Screw 3
Part 1
Part 2
Screw 1
Screw 2
