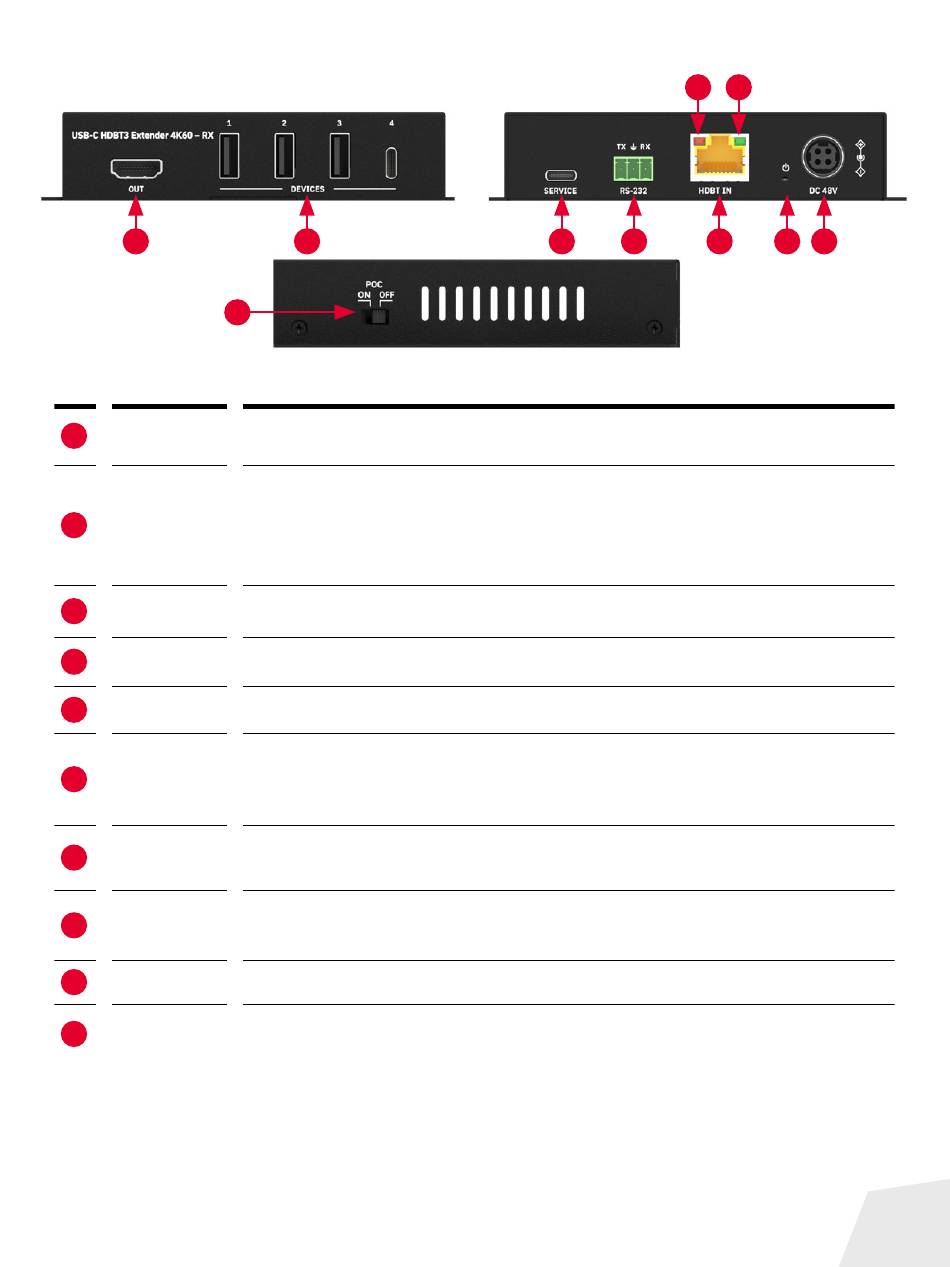

5.2 Receiver
1
10
No
Name
HDMI OUT
1
USB 2.0
2
Devices
Service
3
RS-232
4
HDBT IN
5
Yellow LED
6
Green LED
7
Power LED
8
DC 48V
9
PoC
10
20
2
Description
1 x HDMI output
> 3 x USB 2.0 Type A, for connecting, a mouse, keyboard or USB
camera. Supplies up to 5 V / 1 A power.
> 1 x USB 2.0 Type C, for connecting a mouse, keyboard or USB
camera. Supplies up to 5 V / 1 A power.
Firmware updates and control
Bi-directional pass-through to / from the transmitter.
HDBT input, for connection to the HDBT input on the transmitter.
> Lights up: Video transmission with HDCP encryption.
> Blinking: Video transmission without HDCP encryption.
> Not lit: No video transmission.
> Lights up: Transmitter and receiver are connected.
> Not lit: Transmitter and receiver are not connected.
> Lights up: The transmitter is receiving power.
> Not lit: The transmitter is not receiving power.
Mains connection (alternative to transmitter)
(De-)activates the PoC function. Used to supply power to the other
device via Cat cable.
6
7
3
4
5
8
9
