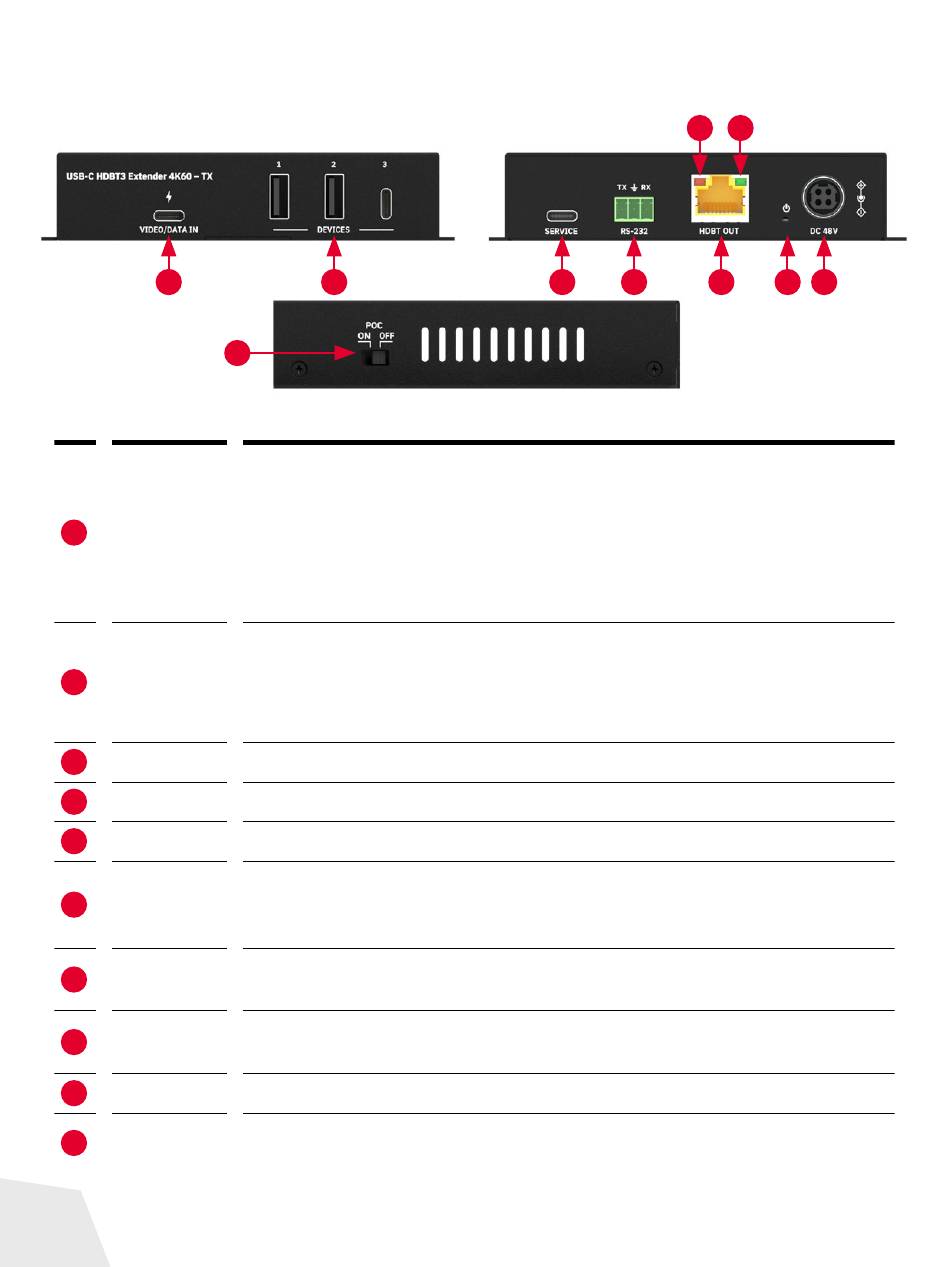

5 Device description
5.1 Transmitter
1
10
No
Name
USB-C In
1
USB 2.0
2
Devices
Service
3
RS-232
4
HDBT OUT
5
Yellow LED
6
Green LED
7
Power LED
8
DC 48V
9
PoC
10
EN
2
Description
USB Type C, supports PD 3.0 specification and USB data transfer.
Connects to a USB host such as a laptop.
The connector supports three functions:
> Video input, which is output to the HDMI output.
> USB 2.0 - data transfer to and from the USB devices.
> Charging function for connected laptops with up to 60 W.
> 2 x USB 2.0 Type-A, for connecting, for example, a mouse,
keyboard or USB camera. Supplies up to 5 V / 1 A power.
> 1 x USB 2.0 Type C, for connecting e.g. a mouse, keyboard or
USB camera. Supplies up to 5 V / 1 A power.
Firmware updates and control
Bi-directional pass-through to / from the receiver.
HDBT output, for connection to the HDBT input on the receiver.
> Lights up: Video transmission with HDCP encryption.
> Blinking: Video transmission without HDCP encryption.
> Not lit: No video transmission.
> Lights up: Transmitter and receiver are connected.
> Not lit: Transmitter and receiver are not connected.
> Lights up: The transmitter is receiving power.
> Not lit: The transmitter is not receiving power.
Mains connection (alternative to receiver)
(De-)activates the PoC function. Used to supply power to the other
device via Cat cable.
6
7
3
4
5
8
9
19
