ENGLISH

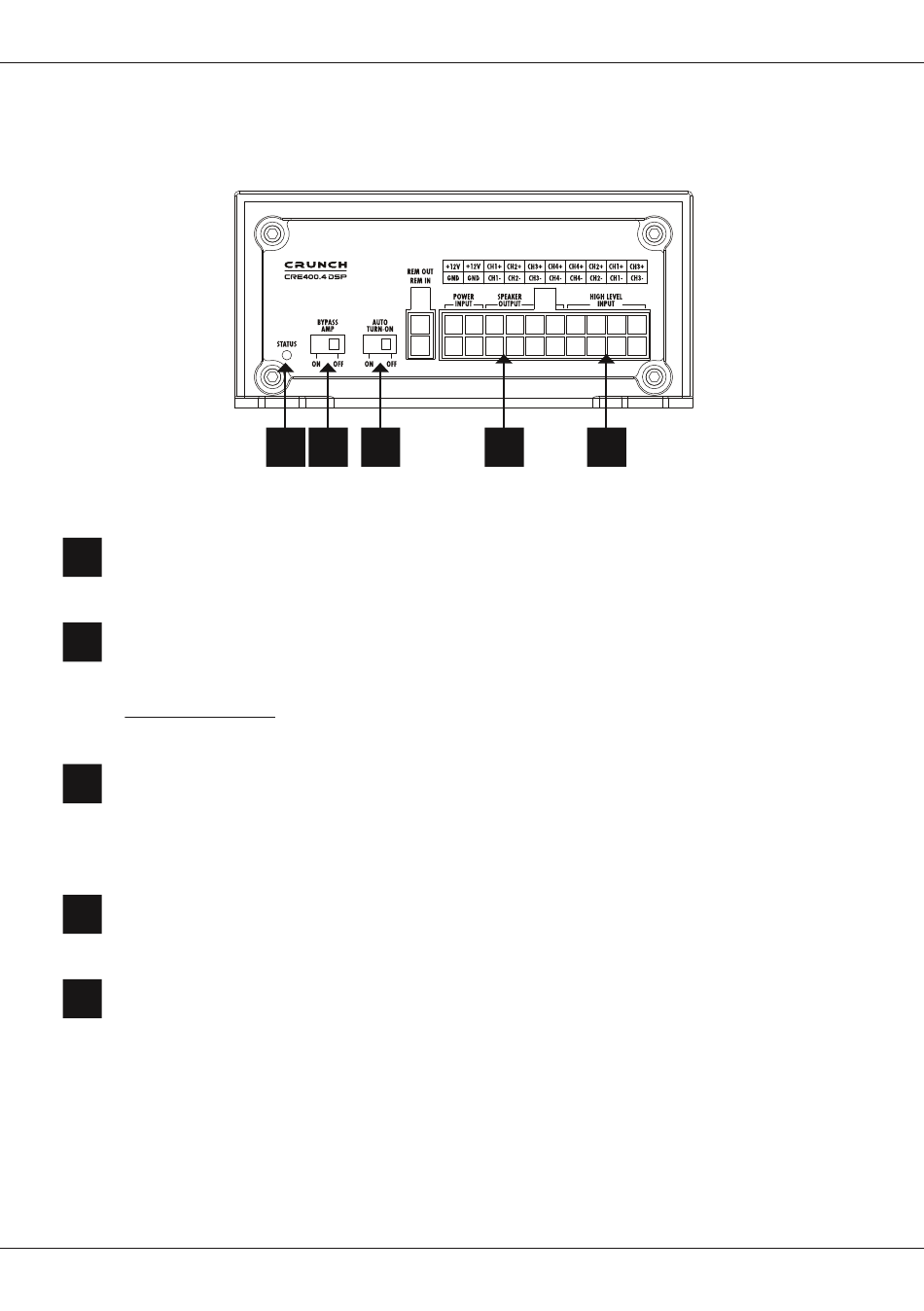

FUNCTIONAL DESCRIPTION
STATUS
6
If this LED lights up blue, the amplifier is ready for operation. If the LED lights up red, there is a mal-
function. Then refer to the TROUBLESHOOTING section on page 29.
BYPASS AMP
7
This switch allows the amplifier section to be bypassed to use the onboard 6-channel DSP as a stand-
alone DSP device.
IMPORTANT NOTE: If there is no sound during normal operation (amplifier and DSP), make sure this
switch is set to OFF.
AUTO TURN-ON
8
If your head unit does not have a turn-on signal (REM), you can use the automatic turn-on function of
the device. Bring then the switch AUTO TURN-ON into Position ON. The device then detects a voltage
rise to 6 volts when the head unit is turned on by a so-called "DC offset" and then turns on the device.
As soon as the head unit is switched off again, the device switches itself off.
SPEAKER OUTPUT
9
Connect the cable ends of the 20-pin wire harness to the corresponding loudspeakers of the sound
system. Pay attention to the correct polarity of the connections.
HIGH LEVEL INPUT
10
Connect the cable ends of the 20-pin wireharness to the corresponding loudspeaker outputs (high-
level signal) of the car stereo/head unit. Pay attention to the correct polarity of the connections.
The threshold value for prioritized input signals can be set with the HIGH LEVEL MIX function in the "DSP
Master" software. This enables, for example, traffic announcements to be recognized and played back.
24
6
7
8
9
10
