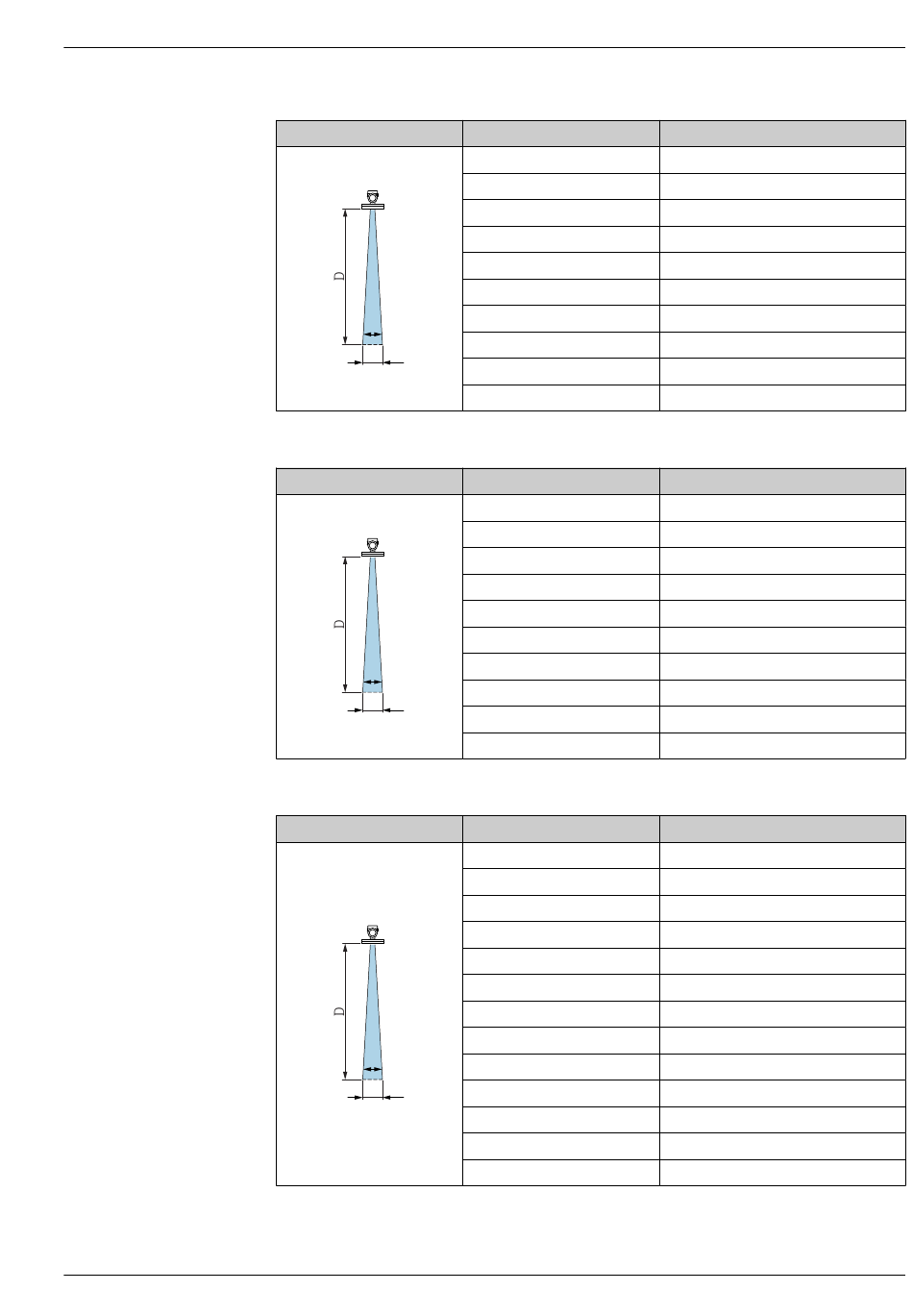

Drip-off Antenne, PTFE 50 mm (2 in), α = 6 °
W = D × 0,10
α
W
Antenne PTFE plattiert, frontbündig 50 mm (2 in), α 7 °
W = D × 0,12
α
W
Antenne PTFE plattiert, frontbündig 80 mm (3 in), α 3 °
W = D × 0,05
α
W
D
5 m (16 ft)
10 m (33 ft)
15 m (49 ft)
20 m (66 ft)
25 m (82 ft)
30 m (98 ft)
35 m (115 ft)
40 m (131 ft)
45 m (148 ft)
50 m (164 ft)
D
5 m (16 ft)
10 m (33 ft)
15 m (49 ft)
20 m (66 ft)
25 m (82 ft)
30 m (98 ft)
35 m (115 ft)
40 m (131 ft)
45 m (148 ft)
50 m (164 ft)
D
5 m (16 ft)
10 m (33 ft)
15 m (49 ft)
20 m (66 ft)
25 m (82 ft)
30 m (98 ft)
35 m (115 ft)
40 m (131 ft)
45 m (148 ft)
50 m (164 ft)
60 m (197 ft)
70 m (230 ft)
80 m (262 ft)
W
0,52 m (1,70 ft)
1,04 m (3,41 ft)
1,56 m (5,12 ft)
2,08 m (6,82 ft)
2,60 m (8,53 ft)
3,12 m (10,24 ft)
3,64 m (11,94 ft)
4,16 m (13,65 ft)
4,68 m (15,35 ft)
5,20 m (17,06 ft)
W
0,61 m (2,00 ft)
1,22 m (4,00 ft)
1,83 m (6,00 ft)
2,44 m (8,01 ft)
3,05 m (10,01 ft)
3,66 m (12,01 ft)
4,27 m (14,01 ft)
4,88 m (16,01 ft)
5,50 m (18,04 ft)
6,11 m (20,05 ft)
W
0,25 m (0,82 ft)
0,50 m (1,64 ft)
0,75 m (2,46 ft)
1,00 m (3,28 ft)
1,25 m (4,10 ft)
1,50 m (4,92 ft)
1,75 m (5,74 ft)
2,00 m (6,56 ft)
2,25 m (7,38 ft)
2,50 m (8,20 ft)
3,00 m (9,84 ft)
3,50 m (11,48 ft)
4,00 m (13,12 ft)
