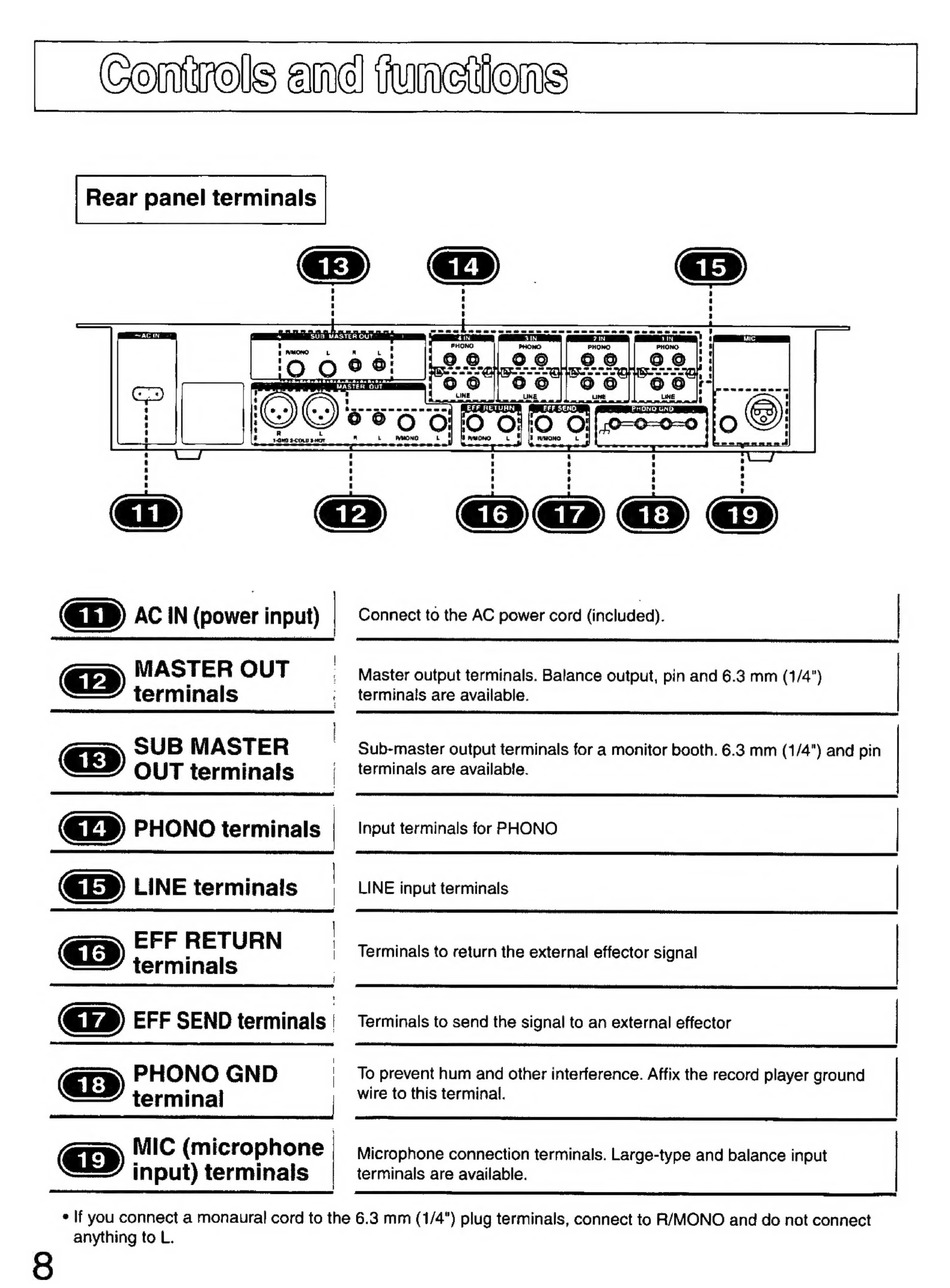

Controls and functions
Rear panel terminals
AC IN (power input) |
MASTER OUT |
terminals i
SUB MASTER
OUT terminals
EFF RETURN
terminals
EFF SEND terminals |
PHONOGND |
terminal |
MIC (microphone |
input) terminals
—
Connect to the AC power cord (included).
Master output terminals. Balance output, pin and 6.3 mm (1/4")
terminals are available.
— .
Sub-master output terminals for a monitor booth. 6.3 mm (1/4") and pin
terminals are available.
Input terminals for PHONO
—À
LINE input terminals
Terminals to return the external effector signal
Terminals to send the signal to an external effector
To prevent hum and other interference. Affix the record player ground
wire to this terminal.
Án
Microphone connection terminals. Large-type and balance input
terminals are available.
M
• If you connect a monaural cord to the 6.3 mm (1/4") plug terminals, connect to R/MONO and do not connect
anything to L.
