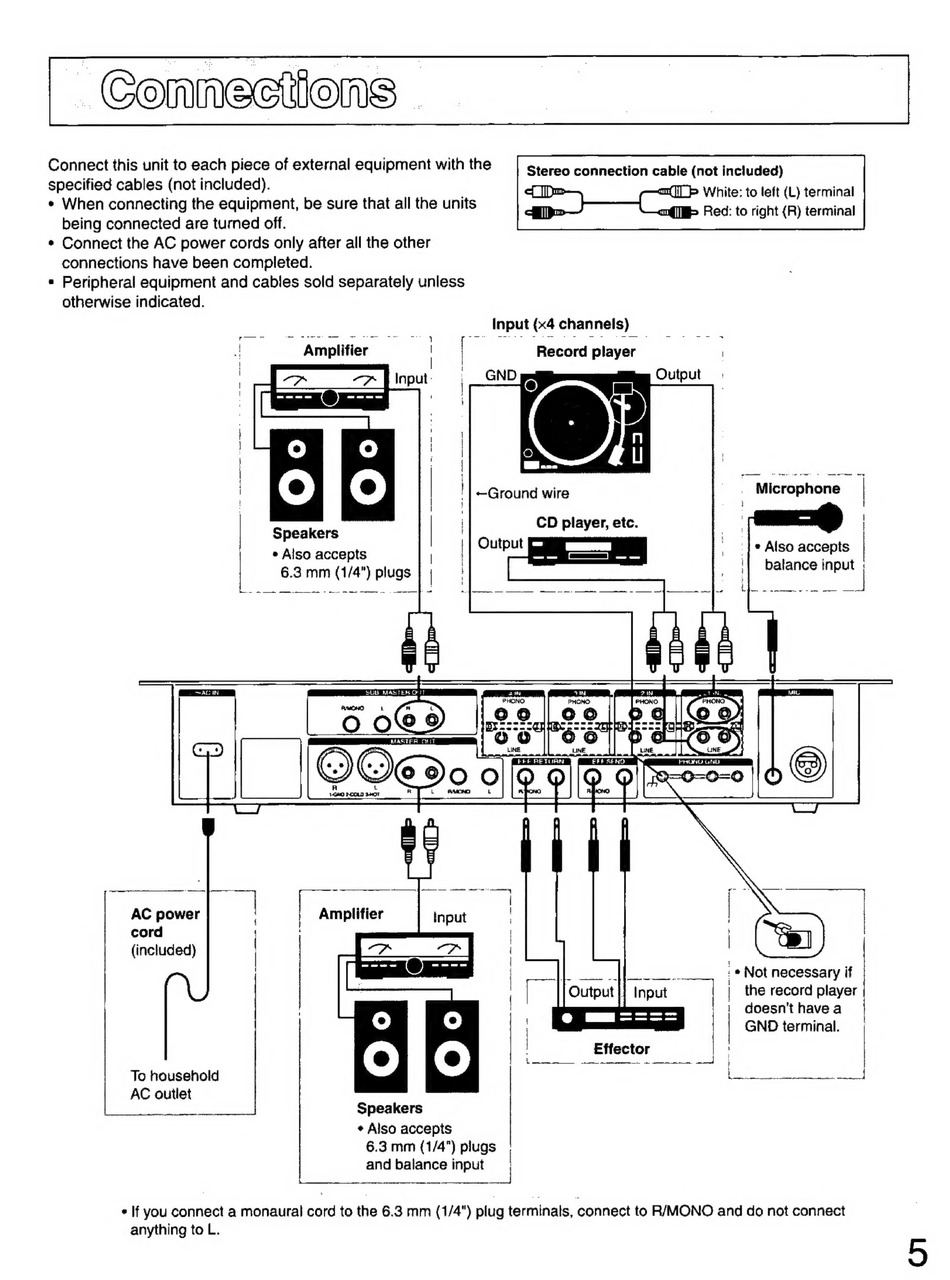

Connections
Connect this unit to each piece of external equipment with the
specified cables (not included).
e When connecting the equipment, be sure that all the units
being connected are turned off.
* Connect the AC power cords only after all the other
connections have been completed.
* Peripheral equipment and cables sold separately unless
otherwise indicated.
£. асы ВЕ
Input {х4 channels)
Speakers
* Also accepts
| Output
Record player
«Ground wire
CD player, etc.
Output
AC power
cord
(included)
— À anne a mar mar mama
To household
AC outlet
Speakers
* Also accepts
6.3 mm (1/4") plugs
and balance input
————————————
ps
mp чи ae en о hg
Effector
=
I
Stereo connection cable (not inctuded)
White: to left (L) terminal
Red: to right (R) terminal
. Microphone
: * Also accepts
! | balance input
|
x
ee
: e Not necessary if
the record player
doesn't have a
GND terminal.
• |f you connect a monaural cord to the 6.3 mm (1/4") plug terminals, connect to R/MONO and do not connect
anything to L.
———
