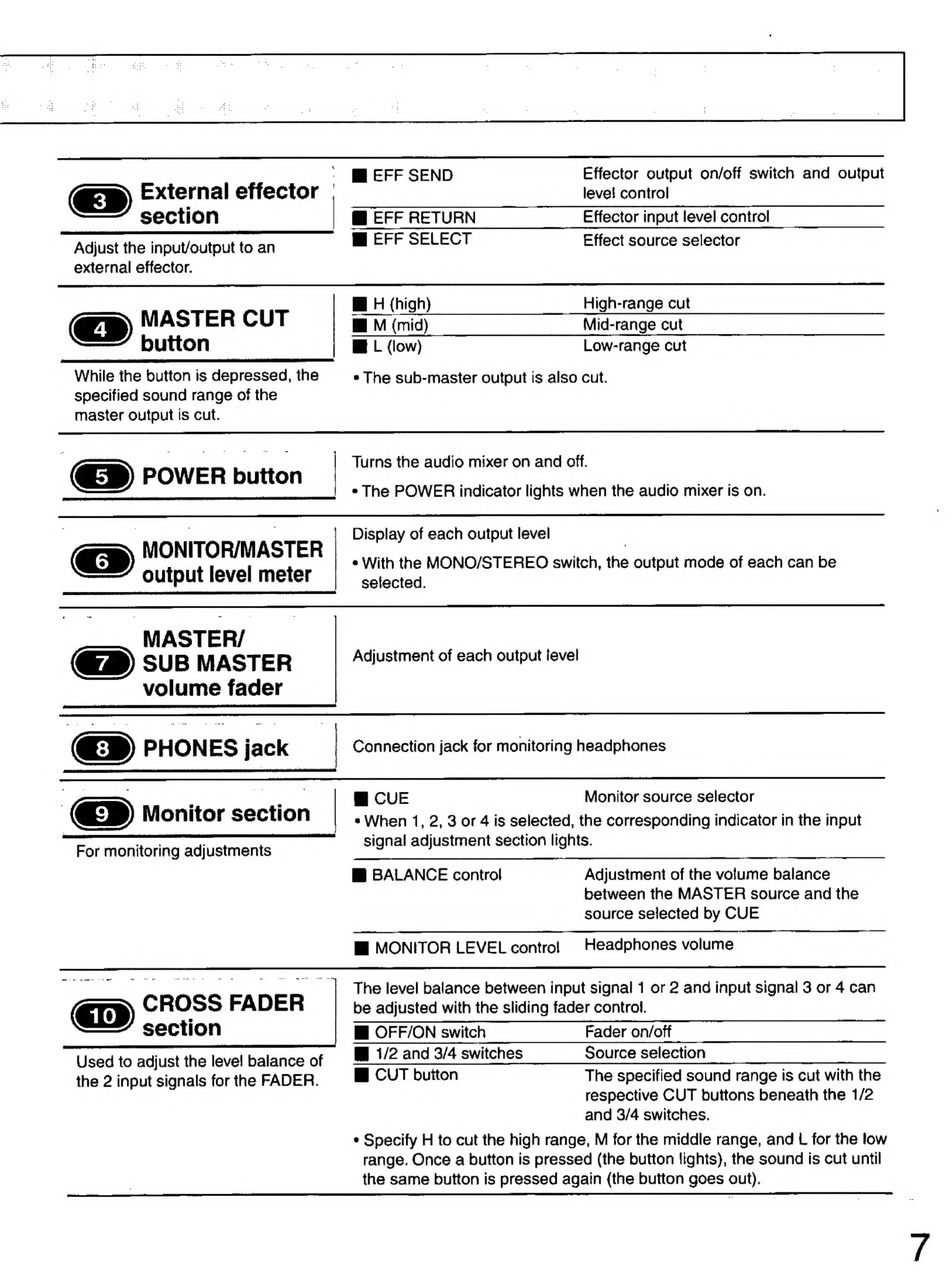

Ш EFF SEND Effector output on/off switch and output
External effector | level control
section Ш EFF RETURN Effector input level control
Adjust the input/output to an В EFF SELECT Effect source selector
external effector.
WU (high) High-range cut
MASTER CUT Ш M (mid) Mid-range cut
button B L (low) Low-range cut
While the button is depressed, the • Тһе sub-master output is also cut.
specified sound range of the
master output is cut.
* The POWER indicator lights when the audio mixer is on.
Display of each output level
* With the MONO/STEREO switch, the output mode of each can be
selected.
MONITOR/MASTER
output level meter
"
MASTER/
Ф PHONES jack
Connection jack for monitoring headphones
mg CUE Monitor source selector
* When 1, 2, 3 or 4 is selected, the corresponding indicator in the input
signal adjustment section lights.
Monitor section
А
For monitoring adjustments
ll BALANCE control Adjustment of the volume balance
between the MASTER source and the
source selected by CUE
The level balance between input signal 1 or 2 and input signal 3 or 4 can
CROSS FADER be adjusted with the sliding fader control.
respective CUT buttons beneath the 1/2
and 3/4 switches.
* Specify H to cut the high range, M for the middle range, and L for the low
range. Once a button is pressed (the button lights), the sound is cut until
the same button is pressed again (the button goes out).
