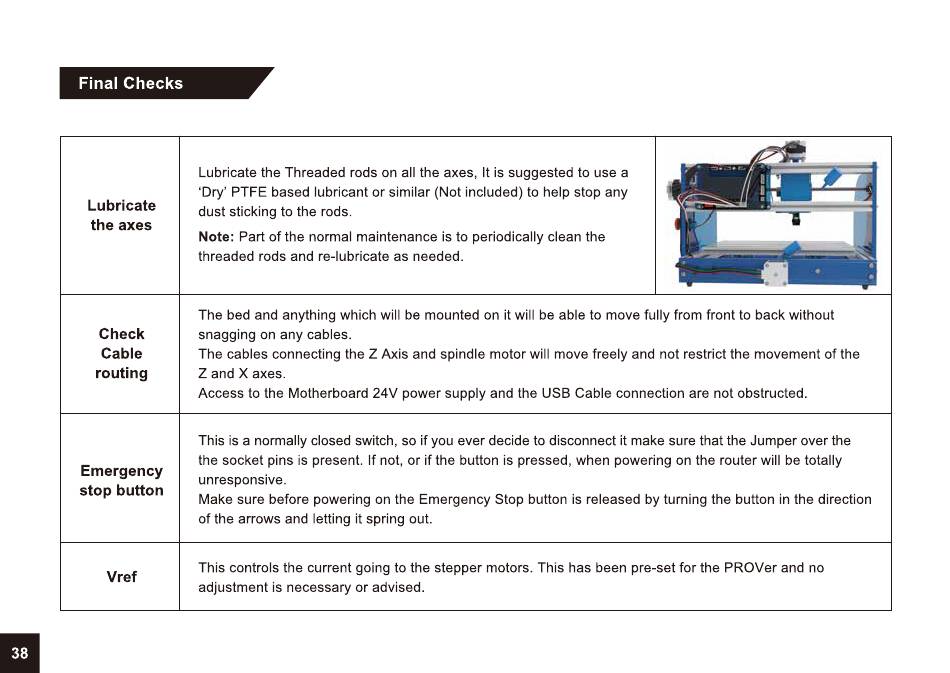

Final
Checks
Lubricate
the
axes
Check
Cable
routing
Emergency
stop button
Vref
38
Lubricate the Threaded
rods on all the axes, It is suggested to use a
'Dry' PTFE based lubricant or similar (Not included) to help stop any
dust sticking to the rods.
Note: Part of the normal maintenance
threaded
rods
and
re-lubricate
The bed and anything which will be mounted on it will be able to move fully from front to back without
snagging on any cables.
The cables connecting
the Z Axis and spindle motor will move freely and not restrict the movement
Z and
X axes.
Access to the Motherboard
24V power supply and the USB Cable connection
This is a normally closed switch, so if you ever decide to disconnect it make sure that the Jumper over the
the socket pins is present. If not, or if the button is pressed, when powering on the router will be totally
unresponsive.
Make sure before powering on the Emergency
of the arrows and letting it spring out.
This controls the current going to the stepper motors. This has been pre-set for the PROVer and no
adjustment
is necessary
or advised
is to periodically
clean the
as
needed
Stop button is released by turning the button in the direction
of the
are not obstructed
