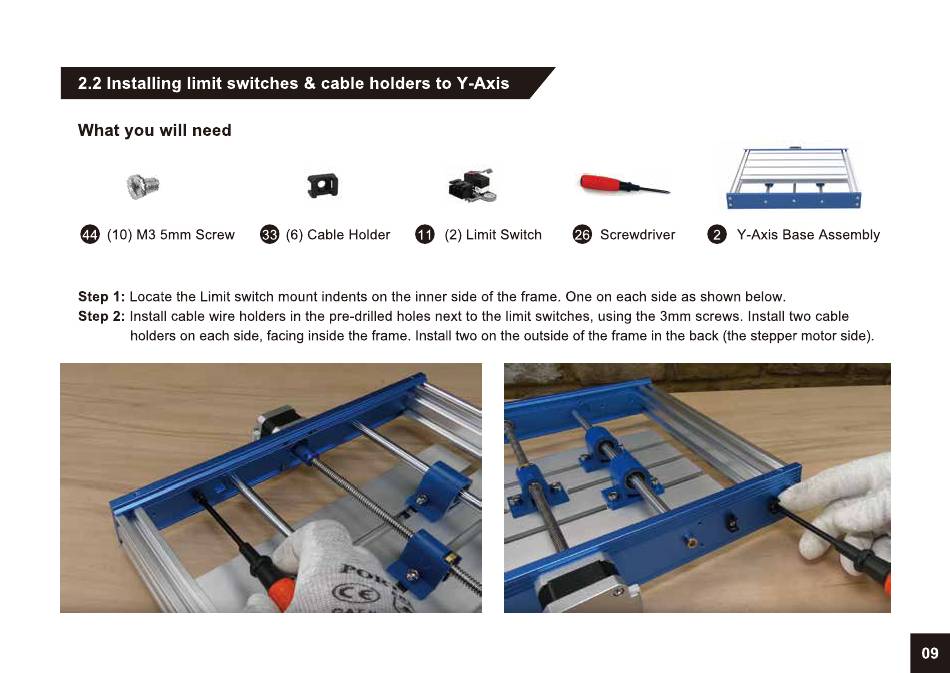

2.2 Installing
limit switches
& cable holders to Y-Axis
What you will need
(10) M3 5mm Screw
(6) Cable Holder
(2) Limit Switch
Screwdriver
Y-Axis Base Assembly
Step 1: Locate the Limit switch mount indents on the inner side of the frame. One on each side as shown below
Step 2: Install cable wire holders in the pre-drilled
holes next to the limit switches, using the 3mm screws. Install two cable
holders on each side, facing inside the frame. Install two on the outside of the frame in the back (the stepper motor side).
09
