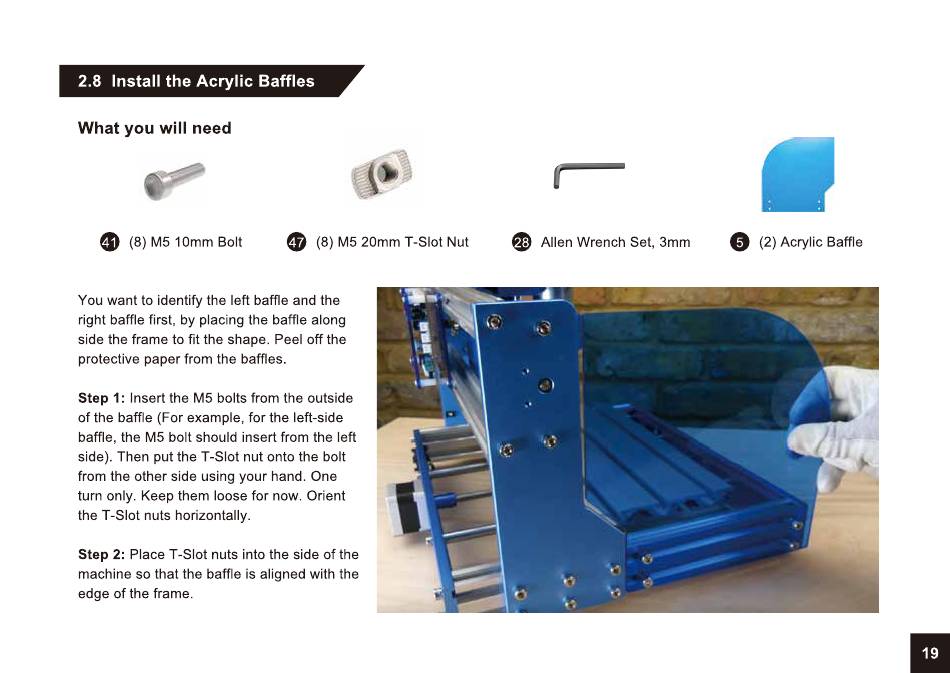

2.8
Install
the Acrylic
Baffles
What you will need
O (8)M510mm Bolt
O (8)M520mm T-Slot N ut
Allen Wrench
Set, 3mm
(2) Acrylic Baffle
You want to identify the left baffle and the
right baffle first, by placing the baffle along
side the frame to fit the shape. Peel off the
protective
paper from the baffles
Step 1: Insert the M5 bolts from the outside
of the baffle (For example, for the left-side
baffle,
the M5 bolt should
insert from the left
side). Then put the T-Slot nut onto the bolt
from the other side using your hand. One
turn only. Keep them loose for now. Orient
the T-Slot nuts horizontally.
Step 2: Place T-Slot nuts into the side of the
machine so that the baffle is aligned with the
edge of the frame.
