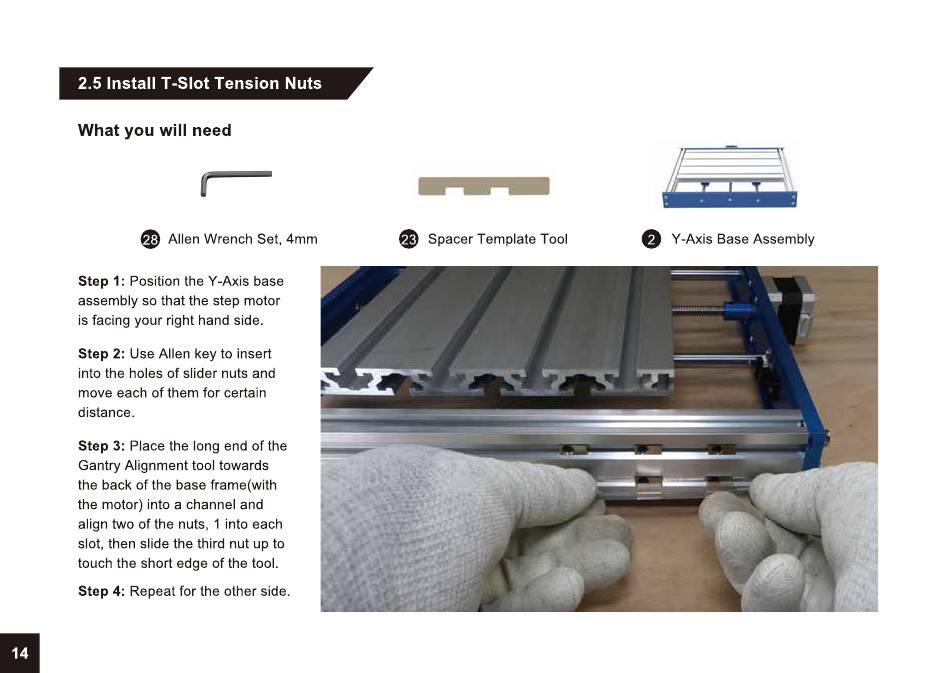

2.5
Install
T-Slot
Tension
Nuts
What you will need
0
Allen Wrench
Set, 4mm
Spacer Template Tool
Y-Axis Base Assembly
Step 1: Position the Y-Axis base
assembly so that the step motor
is facing your right hand side
Step 2: Use Allen key to insert
into
the
holes
of slider
nuts
and
move
each
of them
for certain
distance
Step 3: Place the long end of the
Gantry Alignment
tool towards
the back of the base frame(with
the motor) into a channel and
align two of the nuts, 1 into each
slot, then slide the third nut up to
touch the short edge of the tool
Step 4: Repeat for the other side.
