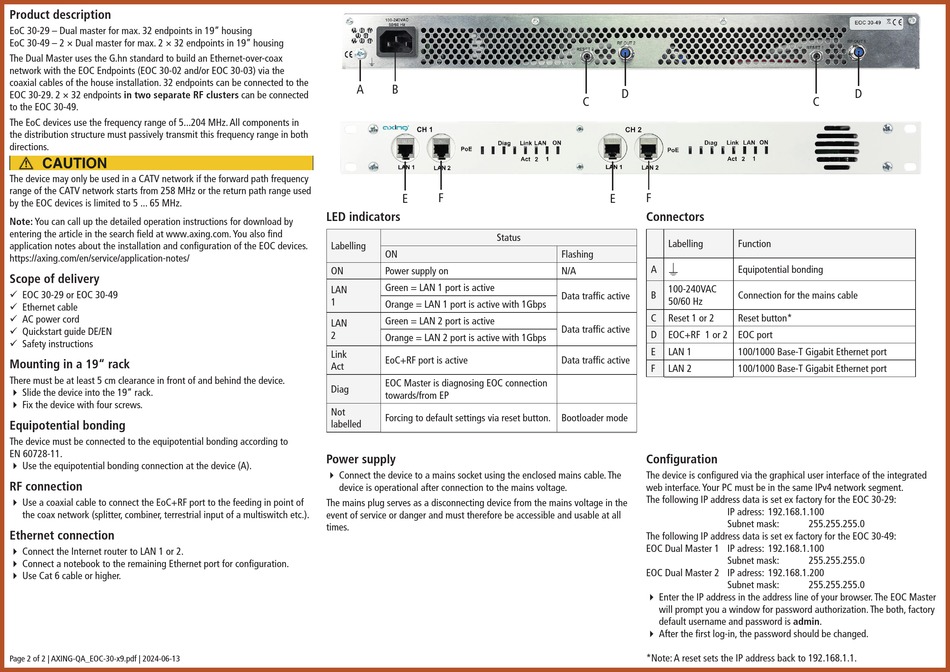

Product description
EoC 30-29 – Dual master for max. 32 endpoints in 19" housing
EoC 30-49 – 2 × Dual master for max. 2 × 32 endpoints in 19" housing
The Dual Master uses the G.hn standard to build an Ethernet-over-coax
network with the EOC Endpoints (EOC 30-02 and/or EOC 30-03) via the
coaxial cables of the house installation. 32 endpoints can be connected to the
EOC 30-29. 2 × 32 endpoints in two separate RF clusters can be connected
to the EOC 30-49.
The EoC devices use the frequency range of 5...204 MHz. All components in
the distribution structure must passively transmit this frequency range in both
directions.
The device may only be used in a CATV network if the forward path frequency
range of the CATV network starts from 258 MHz or the return path range used
by the EOC devices is limited to 5 ... 65 MHz.
Note: You can call up the detailed operation instructions for download by
entering the article in the search field at www.axing.com. You also find
application notes about the installation and configuration of the EOC devices.
https://axing.com/en/service/application-notes/
Scope of delivery
9 EOC 30-29 or EOC 30-49
9 Ethernet cable
9 AC power cord
9 Quickstart guide DE/EN
9 Safety instructions
Mounting in a 19" rack
There must be at least 5 cm clearance in front of and behind the device.
 Slide the device into the 19" rack.
 Fix the device with four screws.
Equipotential bonding
The device must be connected to the equipotential bonding according to
EN 60728-11.
 Use the equipotential bonding connection at the device (A).
RF connection
 Use a coaxial cable to connect the EoC+RF port to the feeding in point of
the coax network (splitter, combiner, terrestrial input of a multiswitch etc.).
Ethernet connection
 Connect the Internet router to LAN 1 or 2.
 Connect a notebook to the remaining Ethernet port for configuration.
 Use Cat 6 cable or higher.
Page 2 of 2 | AXING-QA_EOC-30-x9.pdf | 2024-06-13
A B
F
E
LED indicators
Status
Labelling
ON
ON Power supply on
Green = LAN 1 port is active
LAN
1
Orange = LAN 1 port is active with 1Gbps
Green = LAN 2 port is active
LAN
2
Orange = LAN 2 port is active with 1Gbps
Link
EoC+RF port is active
Act
EOC Master is diagnosing EOC connection
Diag
towards/from EP
Not
Forcing to default settings via reset button.
labelled
Power supply
 Connect the device to a mains socket using the enclosed mains cable. The
device is operational after connection to the mains voltage.
The mains plug serves as a disconnecting device from the mains voltage in the
event of service or danger and must therefore be accessible and usable at all
times.
D
C
F
E
Connectors
Labelling Function
Flashing
A Equipotential bonding
N/A
100-240VAC
B Connection for the mains cable
Data traffic active
50/60 Hz
C Reset 1 or 2 Reset button*
Data traffic active
D EOC+RF 1 or 2 EOC port
E LAN 1 100/1000 Base-T Gigabit Ethernet port
Data traffic active
F LAN 2 100/1000 Base-T Gigabit Ethernet port
Bootloader mode
Configuration
The device is configured via the graphical user interface of the integrated
web interface. Your PC must be in the same IPv4 network segment.
The following IP address data is set ex factory for the EOC 30-29:
IP adress: 192.168.1.100
Subnet mask:
The following IP address data is set ex factory for the EOC 30-49:
EOC Dual Master 1 IP adress: 192.168.1.100
Subnet mask:
EOC Dual Master 2 IP adress: 192.168.1.200
Subnet mask:
 Enter the IP address in the address line of your browser. The EOC Master
will prompt you a window for password authorization. The both, factory
default username and password is admin.
 After the first log-in, the password should be changed.
*Note: A reset sets the IP address back to 192.168.1.1.
D
C
255.255.255.0
255.255.255.0
255.255.255.0
