LaserRange-Master Gi7 Pro
f
g
h
i
j
k
n
q
t
5.
6.

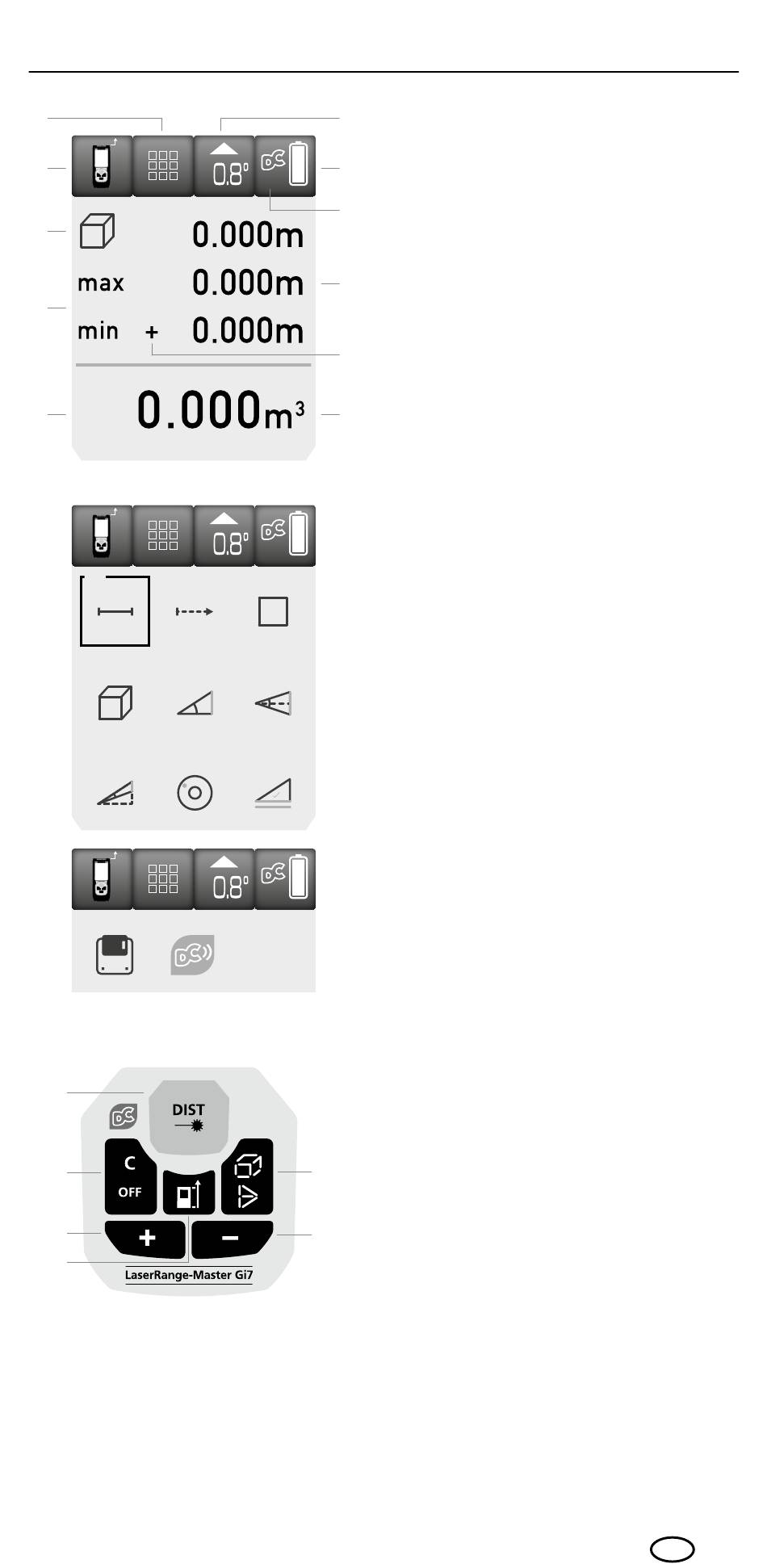

DISPLAY:
a Function display
b Measurement point (reference)
rear / front
c Display min./max. continuous
measurement / area / volume /
angle function 1 + 2 + 3
d Min/max continuous measurement
e Measurement values /
measurement results /
malfunction / service required
f Slope angle device
g Battery symbol
h Digital Connection activated
i Intermediate values /
min/max values
j Addition / subtraction of lengths,
areas, volumes
k Unit m / inch / ft
l Length measurement
m Min/max continuous
measurement
n Area measurement
o Volume measurement
p Angle function 1
q Angle function 2
r Angle function 3
s Digital bubble level
t Tilt sensor calibration
u Memory
v Digital Connection
KEYPAD:
1. ON / measure
2. Delete last measurement
values / OFF
3. Addition of lengths, areas,
volumes / view saved
measurements
4. Measurement point (reference)
rear / front; unit m / inch / ft
5. Length / min/max continuous
measurement / area / volume /
angle function 1 + 2 + 3 /
digital bubble level / tilt sensor
calibration / memory / Digital
Connection
6. Subtraction of lengths,
areas, volumes / view saved
measurements
