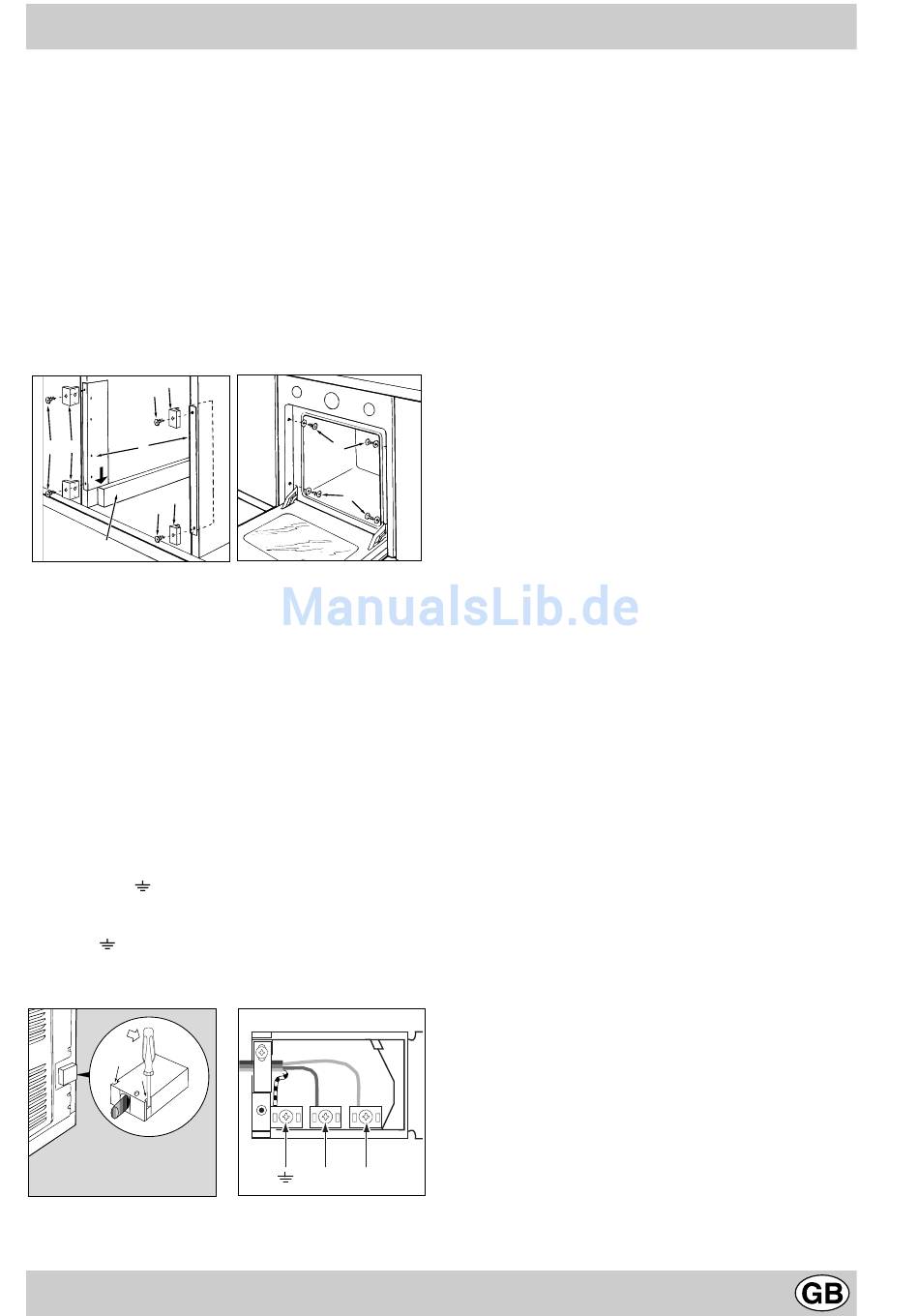

Fastening the oven to the cabinet (only on models
FC...)
1. Place brackets "A" up against the oven support "B".
2. Place the tabs "C" up against brackets "A". In particular,
if the cabinet side panel:
•
is 16 mm thick: mount the tab so that the number 16 it
features is facing you;
•
is 18 mm thick: mount the tab so that the part without
any wording is facing you;
•
is 20 mm thick: do not mount the tab.
3. Fasten the brackets and tabs on the oven cabinet side
panel using screws "D".
4. Fasten the oven to the cabinet using the screws and
plastic washers "E".
C
D
D
A
C
C
D
B
Electrical Connection
Those ovens equipped with a three-pole power supply
cable are designed to operate with an alternating current
with the voltage and frequency indicated on the data plate
(located on the appliance) and in the instruction manual.
The wire for earthing the appliance is yellow-green in col-
our.
Fitting on a Power Supply Cable
Opening the terminal board:
•
Using a screwdriver, prise on the side tabs of the ter-
minal board cover;
•
Pull open the cover of the terminal board.
To install the cable, proceed as follows:
•
Remove the wire clamp screw and the three contact
screws L-N-
•
Fasten the wires beneath the screwheads using the
following colour scheme: Blue (N) Brown (L) Yellow-
Green
•
Fasten the supply cable in place with the clamp and
close the cover of the terminal board.
Connecting the supply cable to the mains
Install a standardised plug corresponding to the load indi-
cated on the data plate. When connecting the cable di-
rectly to the mains, install an omnipolar circuit-breaker with
a minimum contact opening of 3 mm between the appli-
ance and the mains. The omnipolar circuit breaker should
be sized according to the load and should comply with
current regulations (the earth wire should not be inter-
rupted by the circuit breaker).
The supply cable should be positioned so that it does not
reach a temperature of more than 50°C with respect to
the room temperature, anywhere along its length.
Before making the connection, check that:
•
The electrical safety of this appliance can only be guar-
anteed if the cooker is correctly and efficiently earthed,
in compliance with regulations on electrical safety. Al-
ways ensure that the earthing is efficient; if you have
any doubts call in a qualified technician to check the
system. The manufacturer declines all responsibility
E
for damage resulting from a system which has not been
earthed.
E
•
Before plugging the appliance into the mains, check
that the specifications indicated on the date plate (on
the appliance and/or packaging) correspond to those
of the electrical mains system of your home.
•
Check that the electrical capacity of the system and
sockets will support the maximum power of the appli-
ance, as indicated on the data plate. If you have any
doubts, call in a qualified technician.
•
If the socket and appliance plug are not compatible,
have the socket replaced with a suitable model by a
qualified technician. The latter, in particular, will also
have to ensure that the cross section of the socket
cables are suitable for the power absorbed by the ap-
pliance. The use of adapters, multiple sockets and/or
extensions, is not recommended. If their use cannot
be avoided, remember to use only single or multiple
adapters and extensions which comply with current
safety regulations. In these cases, never exceed the
maximum current capacity indicated on the single
adapter or extension and the maximum power indicated
on the multiple adapter. The plug and socket must
be easily accessible.
N
L
25
