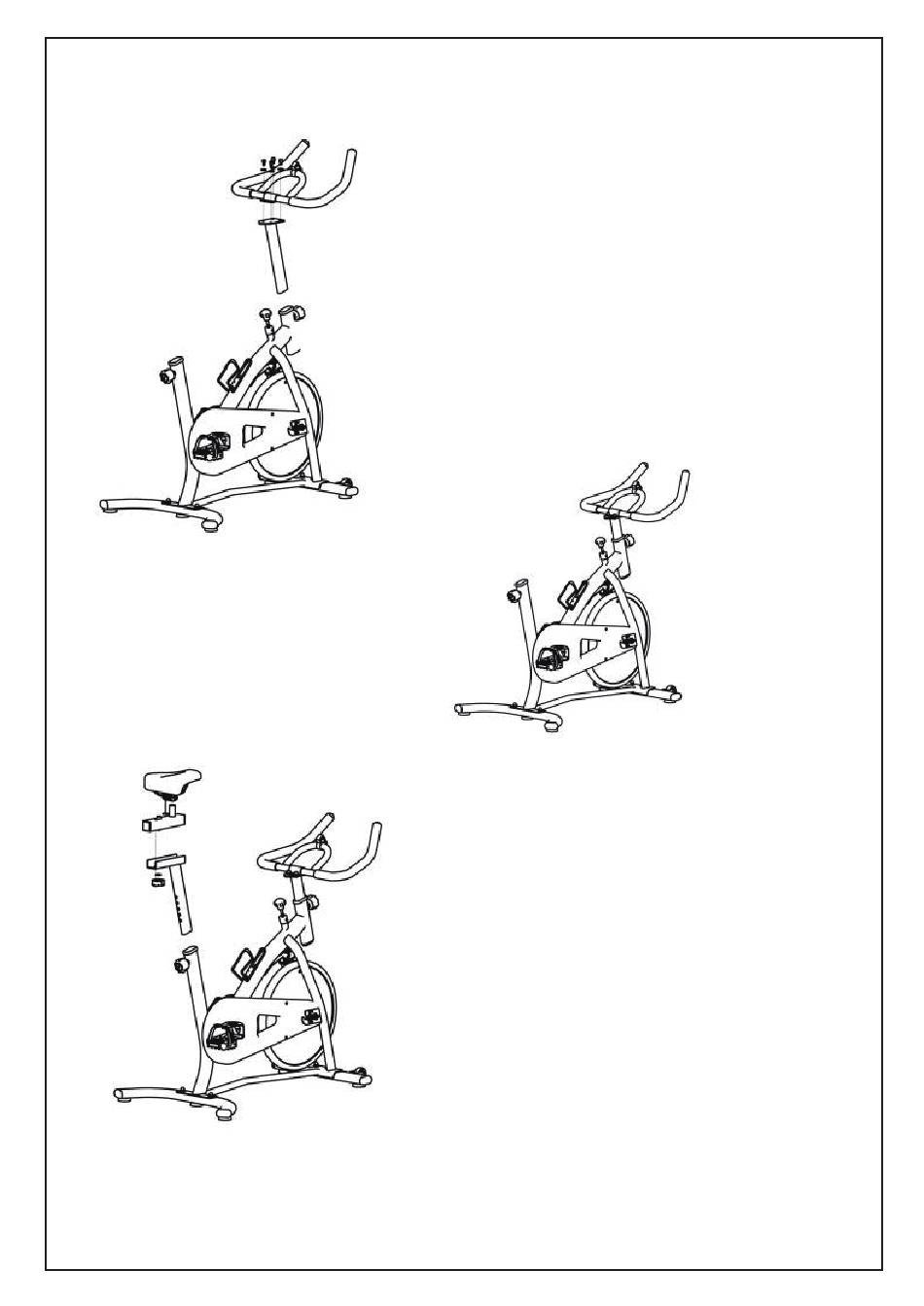

③ HANDLE & MONITOR ASSEMBLY Loosen the
lock knob and insert the handle post assembly-
(#8) into the opening tube, and tighten the lock
knob when the handle post frame(#8) at desired
position.
Attach the monitor holder to the handle frame(#7)
and fix the monitor(#10), connect sensor wire into
the monitor.
④ SADDLE ASSEMBLY Loosen the lock knob
and pull i t out, inserting the saddle post- assem-
bly(#5) into the rear opening tube, then tighten the
lock knob. Loosen the lock nut to select the
correct position and fix the knob.
Place the saddle onto the saddle adjustment
frame(#6) and tighten the saddle locking nut.
EN-6
