To change the light bulb, undo the screw.
Press the light bulb cover as shown and slide it backwards.
Change the defective light bulb.
Refit the light bulb cover and the screw.
Put the refrigerator back into operation.

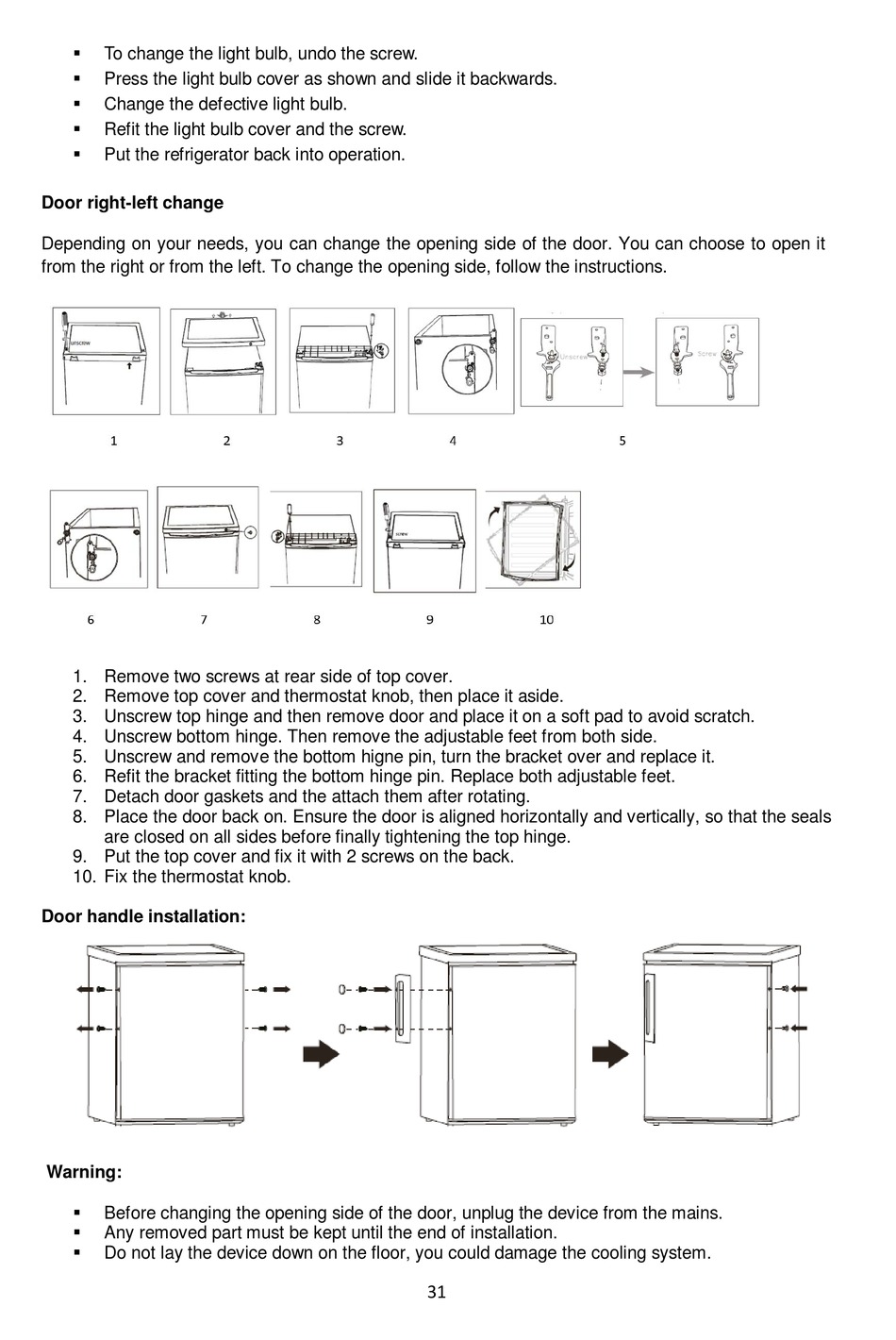

Door right-left change
Depending on your needs, you can change the opening side of the door. You can choose to open it
from the right or from the left. To change the opening side, follow the instructions.
1. Remove two screws at rear side of top cover.
2. Remove top cover and thermostat knob, then place it aside.
3. Unscrew top hinge and then remove door and place it on a soft pad to avoid scratch.
4. Unscrew bottom hinge. Then remove the adjustable feet from both side.
5. Unscrew and remove the bottom higne pin, turn the bracket over and replace it.
6. Refit the bracket fitting the bottom hinge pin. Replace both adjustable feet.
7. Detach door gaskets and the attach them after rotating.
8. Place the door back on. Ensure the door is aligned horizontally and vertically, so that the seals
are closed on all sides before finally tightening the top hinge.
9. Put the top cover and fix it with 2 screws on the back.
10. Fix the thermostat knob.
Door handle installation:
Warning:
Before changing the opening side of the door, unplug the device from the mains.
Any removed part must be kept until the end of installation.
Do not lay the device down on the floor, you could damage the cooling system.
31
