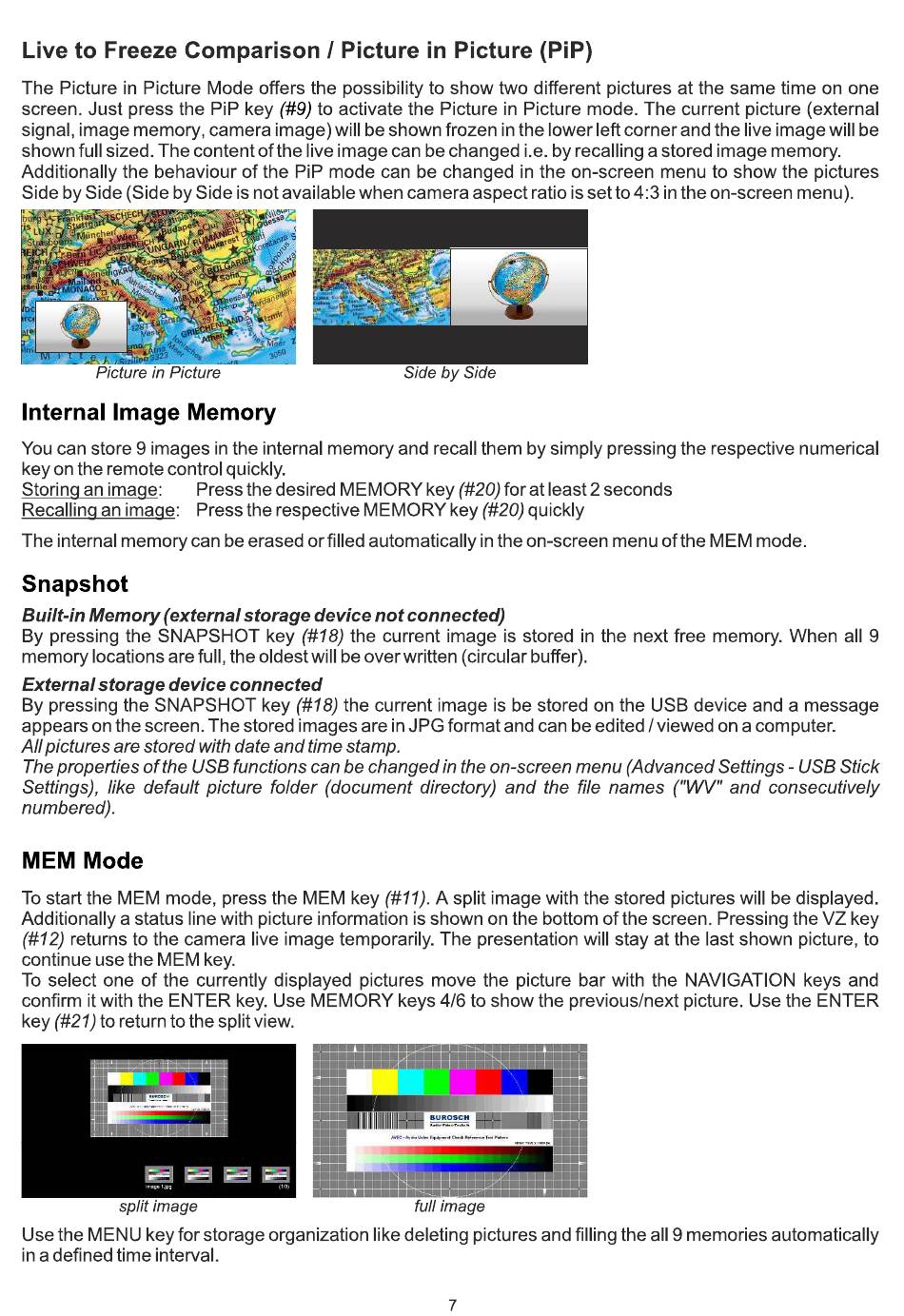

Live to Freeze Comparison
The Picture in Picture Mode offers the possibility
screen. Just press the PiP key (#9) to activate the Picture in Picture mode. The current picture (external
signal, image memory, camera image) will be shown frozen in the lower left corner and the live image will be
shown full sized. The content of the live image can be changed i.e. by recalling a stored image memory.
Additionally the behaviour of the PiP mode can be changed in the on-screen menu to show the pictures
Side by Side (Side by Side is not available when camera aspect ratio is set to 4:3 in the on-screen menu)
Picture in Picture
Internal Image Memory
You can store 9 images in the internal memory and recall them by simply pressing the respective numerical
key on the remote control quickly.
Storing an image:
Recalling an image:
The internal memory can be erased or filled automatically in the on-screen menu of the MEM mode.
Snapshot
Built-in Memory (external
By pressing the SNAPSHOT key (#18) the current image is stored in the next free memory. When all 9
memory locations are full, the oldest will be over written (circular buffer).
External storage device connected
By pressing the SNAPSHOT
appears on the screen. The stored images are in JPG format and can be edited / viewed on a computer.
All pictures are stored with date and time stamp.
The properties of the USB functions can be changed in the on-screen menu (Advanced
Settings), like default picture folder (document directory) and the file names ("WV" and consecutively
numbered).
MEM Mode
To start the MEM mode, press the MEM key (#11). A split image with the stored pictures will be displayed.
Additionally a status line with picture information
(#12) retums to the camera live image temporarily. The presentation will stay at the last shown picture, to
continue use the MEM key.
To select one of the currently displayed pictures move the picture bar with the NAVIGATION keys and
confirm it with the ENTER key. Use MEMORY keys 4/6 to show the previous/next picture. Use the ENTER
key (#21) to return to the split view.
split image
Use the MENU key for storage organization like deleting pictures and filling the all 9 memories automatically
in a defined time interval.
I Picture
Press the desired MEMORY key (#20) for at least 2 seconds
Press the respective MEMORY key (#20) quickly
storage device not connected)
key (#18) the current image is be stored on the USB device and a message
in Picture (PiP)
to show two different
Side by Side
is shown on the bottom of the screen. Pressing the VZ key
full image
7
pictures at the same time on one
Settings - USB Stick
