Reverb User Manual
B
D

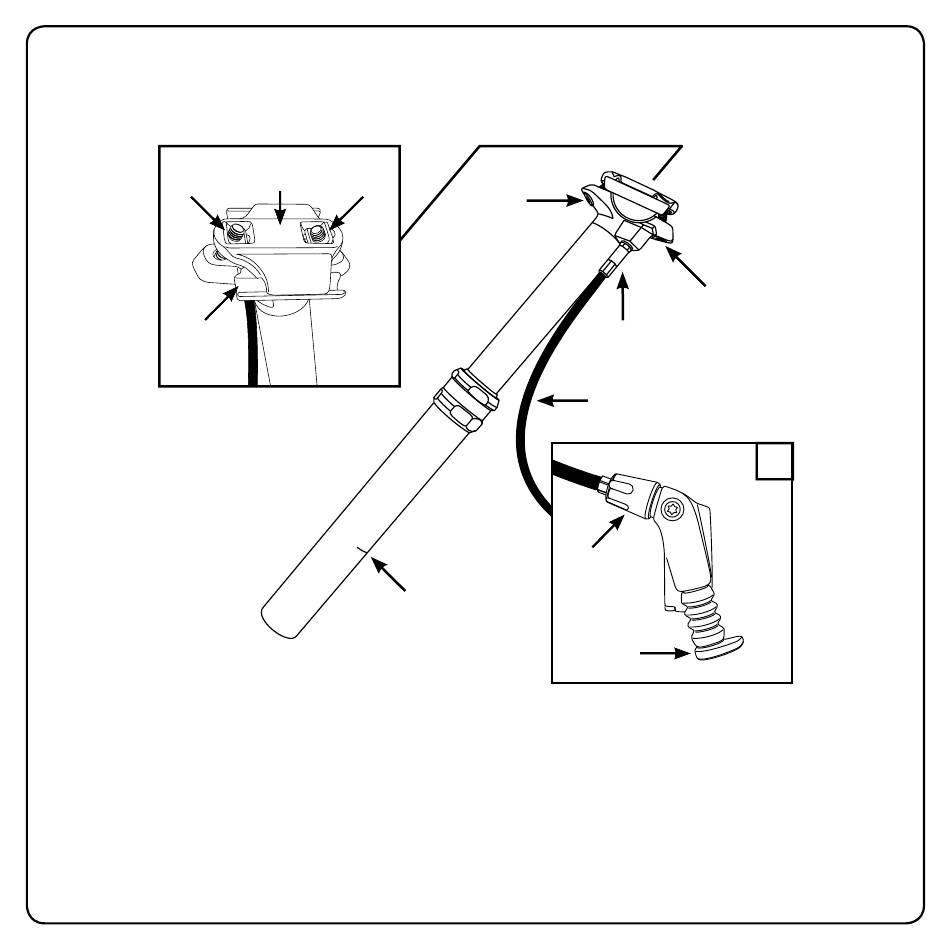

A - Saddle clamp bolts (2)
B - Saddle clamp nuts (2)
C - Top clamp
D - Bottom clamp
E - Minimum insertion line
Copyright © 2011 SRAM, LLC
identify PARtS
C
B
E
A
G
F
J
I
F - Remote hose
G - Strain relief
H - Remote assembly
I - Actuator
J - Speed adjuster
English
