The mains connection must have a
16A surge-proof fuse.
Only use power cords marked
H07RN-F
Connections and repairs to the
electrical equipment may only be
carried out by qualified electricians.

5.4 Starting operation

You can start the machine with the
green ON-button (B). The red Stop /
Emergency off-button (C) on the
control box stops the machine.
The coolant pump (E) can be switched
on and off independently.
The High Speed/ Low Speed switch
(D) may only be operated when motor
power has been stopped before.
WARNING:
Do not change the speed while
machine is running.
Improper operation may damage the
switch.

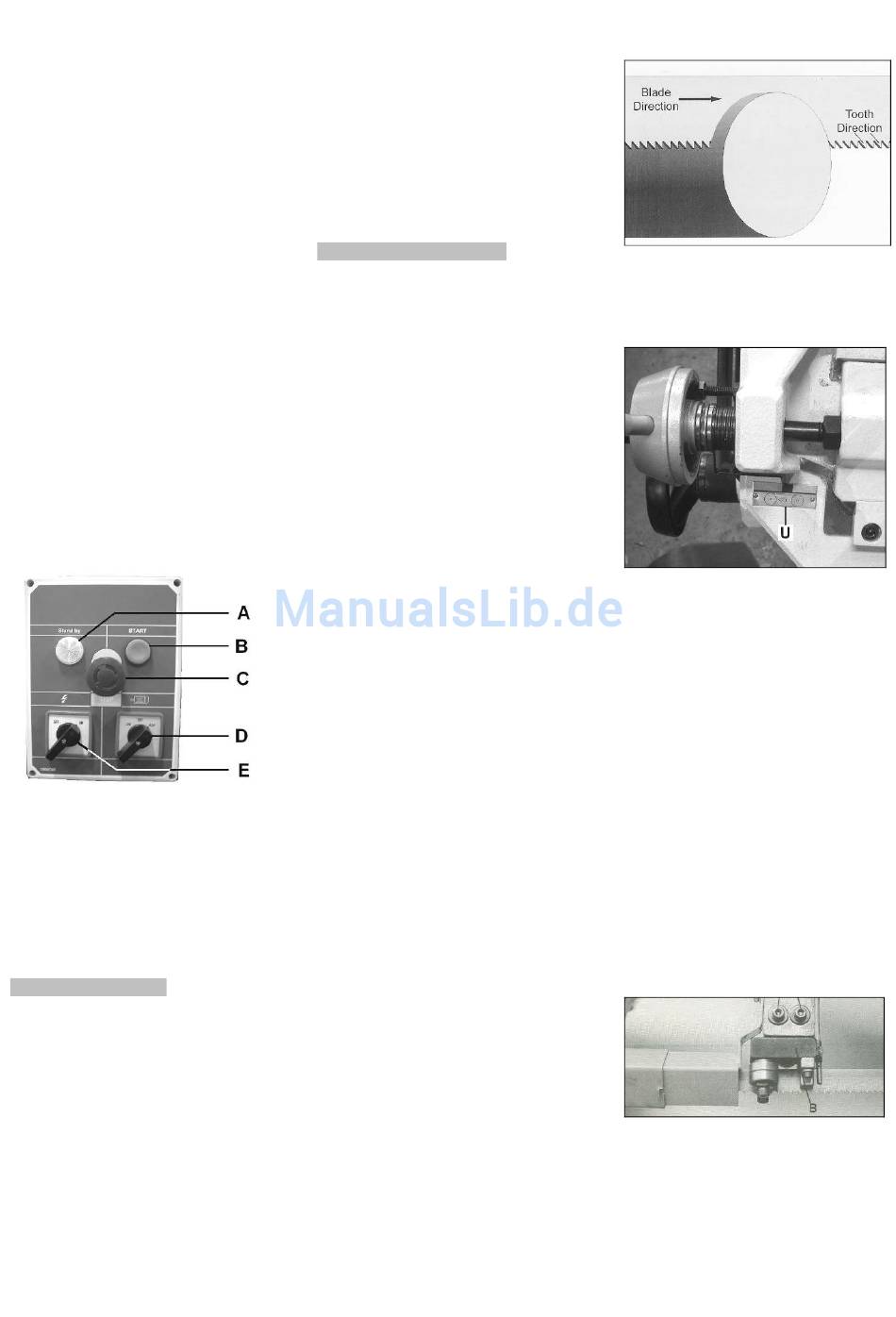

Fig 4
Note:
The saw is equipped with an
automatic Shut-Off.
The saw should stop just after the cut
has been completed. The stop tip has
to be adjusted accordingly.
6. Machine operation
Support long workpieces with helping
roller stands.
Work only with a sharp and flawless
sawblade.
Don't take measurements when the
machine is running
Don't chuck too short in vice.
Use the coolant facility to keep cutting
temperatures down, reduce friction
and extend the life of your sawblade.
Make sure the cutting liquid is properly
contained to the machine.
Use only water soluble cutting
emulsions and dispose of it in an
environmentally friendly manner.
Don't cut magnesium-
high danger to fire!
7. Setup and adjustments
General note:
Setup and adjustment work may
only be carried out after the
machine is protected against
accidental starting by pulling the
mains plug.
7.1 Changing blade speed
The general rule is the harder the
material being cut, the slower the
blade speed.
Low Speed (35 or 40 m/min)
for mild steel, alloy steel and bronzes.
High Speed (70 or 80 m/min)
for aluminium or other light materials.
WARNING:
Do not change the speed while
machine is running.

7.2 Changing sawblade

Disconnect the machine from the
power source.
The sawblade has to meet the
technical specification.
Check sawblade for flaws (cracks,
broken teeth, bending) before
installation. Do not use faulty
sawblades.
Always wear suitable gloves when
handling sawblades.
Raise the saw arm to the vertical
position and lock in place (close both
valves F and G).
Remove the wheel cover.
Move the blade guide assembly (N,
Fig 2) away from the wheel.
Remove the brush assembly.
Release the blade tension and remove
the blade.
Place new blade and make sure the
teeth are pointing the cutting direction
(Fig 5).
6
Fig 5
Turn the blade tension knob until the
proper blade tension is achieved at
green block of tension scale (U)
Fig 6
Place a few drops of lightweight oil on
the blade.
Install the red blade guard, the brush
assembly and the wheel cover.
Connect to the power source.

7.3 Blade guide adjustment

Slide the blade guide assembly (N,
Fig 2) as close as possible to the
material being cut.
7.4 Guide bearing adjustment
Disconnect the machine from the
power source.
Loosen bolts and adjust assembly (B)
so that back roller bearing is
approximately 0,1mm from the back
of the blade. Tighten bolt.
Fig 7
