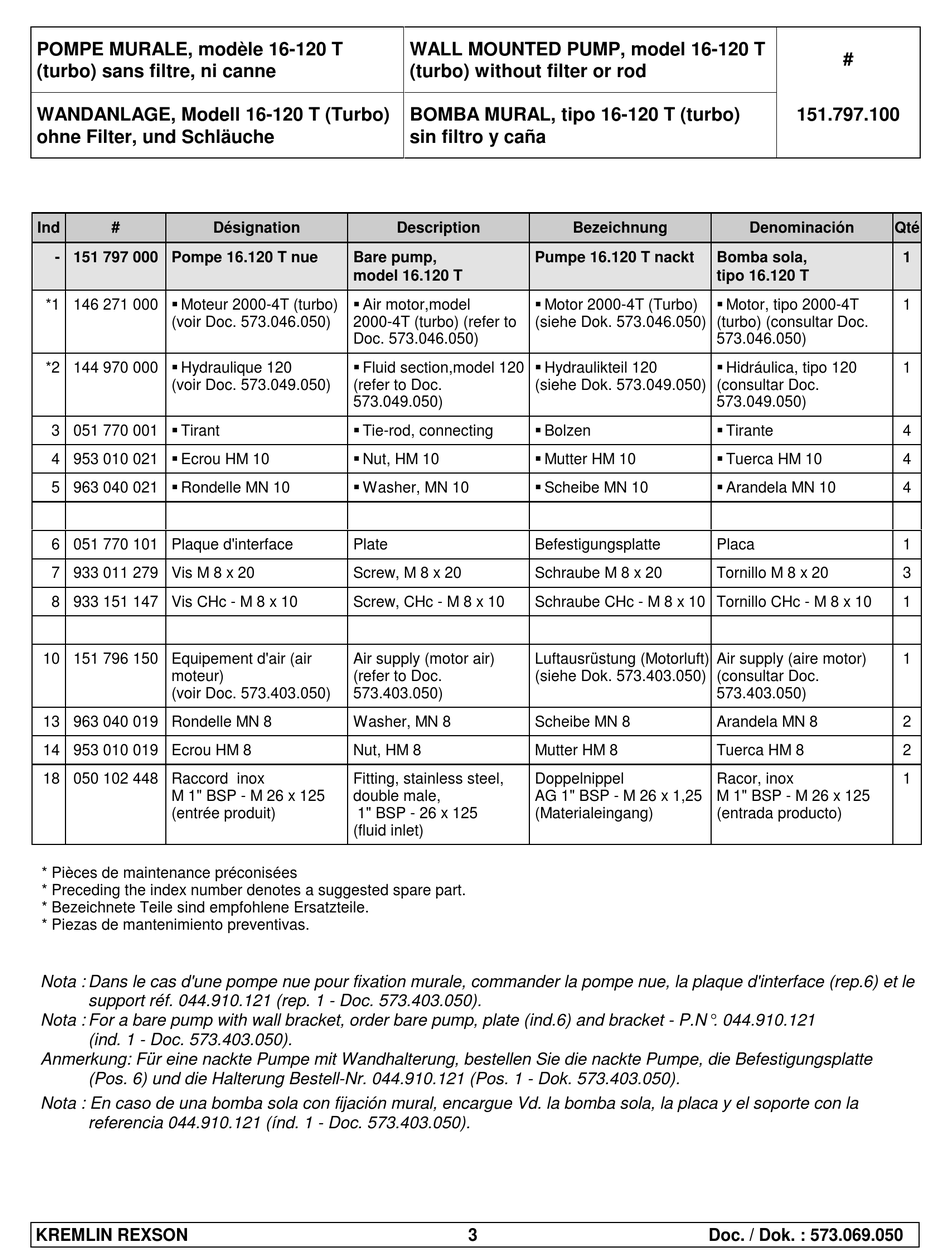

POMPE MURALE, modèle 16-120 T
(turbo) sans filtre, ni canne
WANDANLAGE, Modell 16-120 T (Turbo)
ohne Filter, und Schläuche
Ind
#
Désignation
- 151 797 000 Pompe 16.120 T nue
*1 146 271 000  Moteur 2000-4T (turbo)
(voir Doc. 573.046.050)
*2 144 970 000  Hydraulique 120
(voir Doc. 573.049.050)
3 051 770 001  Tirant
4 953 010 021  Ecrou HM 10
5 963 040 021  Rondelle MN 10
6 051 770 101 Plaque d'interface
7 933 011 279 Vis M 8 x 20
8 933 151 147 Vis CHc - M 8 x 10
10 151 796 150 Equipement d'air (air
moteur)
(voir Doc. 573.403.050)
13 963 040 019 Rondelle MN 8
14 953 010 019 Ecrou HM 8
18 050 102 448 Raccord inox
M 1" BSP - M 26 x 125
(entrée produit)
* Pièces de maintenance préconisées
* Preceding the index number denotes a suggested spare part.
* Bezeichnete Teile sind empfohlene Ersatzteile.
* Piezas de mantenimiento preventivas.
Nota : Dans le cas d'une pompe nue pour fixation murale, commander la pompe nue, la plaque d'interface (rep.6) et le
support réf. 044.910.121 (rep. 1 - Doc. 573.403.050).
Nota : For a bare pump with wall bracket, order bare pump, plate (ind.6) and bracket - P.N°. 044.910.121
(ind. 1 - Doc. 573.403.050).
Anmerkung: Für eine nackte Pumpe mit Wandhalterung, bestellen Sie die nackte Pumpe, die Befestigungsplatte
(Pos. 6) und die Halterung Bestell-Nr. 044.910.121 (Pos. 1 - Dok. 573.403.050).
Nota : En caso de una bomba sola con fijación mural, encargue Vd. la bomba sola, la placa y el soporte con la
referencia 044.910.121 (índ. 1 - Doc. 573.403.050).
KREMLIN REXSON
WALL MOUNTED PUMP, model 16-120 T
(turbo) without filter or rod
BOMBA MURAL, tipo 16-120 T (turbo)
sin filtro y caña
Description
Bare pump,
model 16.120 T
 Air motor,model
2000-4T (turbo) (refer to
Doc. 573.046.050)
 Fluid section,model 120
(refer to Doc.
573.049.050)
 Tie-rod, connecting
 Nut, HM 10
 Washer, MN 10
Plate
Screw, M 8 x 20
Screw, CHc - M 8 x 10
Air supply (motor air)
(refer to Doc.
573.403.050)
Washer, MN 8
Nut, HM 8
Fitting, stainless steel,
double male,
1" BSP - 26 x 125
(fluid inlet)
3
Bezeichnung
Pumpe 16.120 T nackt
 Motor 2000-4T (Turbo)
(siehe Dok. 573.046.050)
 Hydraulikteil 120
(siehe Dok. 573.049.050)
 Bolzen
 Mutter HM 10
 Scheibe MN 10
Befestigungsplatte
Schraube M 8 x 20
Schraube CHc - M 8 x 10 Tornillo CHc - M 8 x 10
Luftausrüstung (Motorluft)
(siehe Dok. 573.403.050)
Scheibe MN 8
Mutter HM 8
Doppelnippel
AG 1" BSP - M 26 x 1,25
(Materialeingang)
Doc. / Dok. : 573.069.050
#
151.797.100
Denominación
Qté
Bomba sola,
tipo 16.120 T
 Motor, tipo 2000-4T
(turbo) (consultar Doc.
573.046.050)
 Hidráulica, tipo 120
(consultar Doc.
573.049.050)
 Tirante
 Tuerca HM 10
 Arandela MN 10
Placa
Tornillo M 8 x 20
Air supply (aire motor)
(consultar Doc.
573.403.050)
Arandela MN 8
Tuerca HM 8
Racor, inox
M 1" BSP - M 26 x 125
(entrada producto)
1
1
1
4
4
4
1
3
1
1
2
2
1
