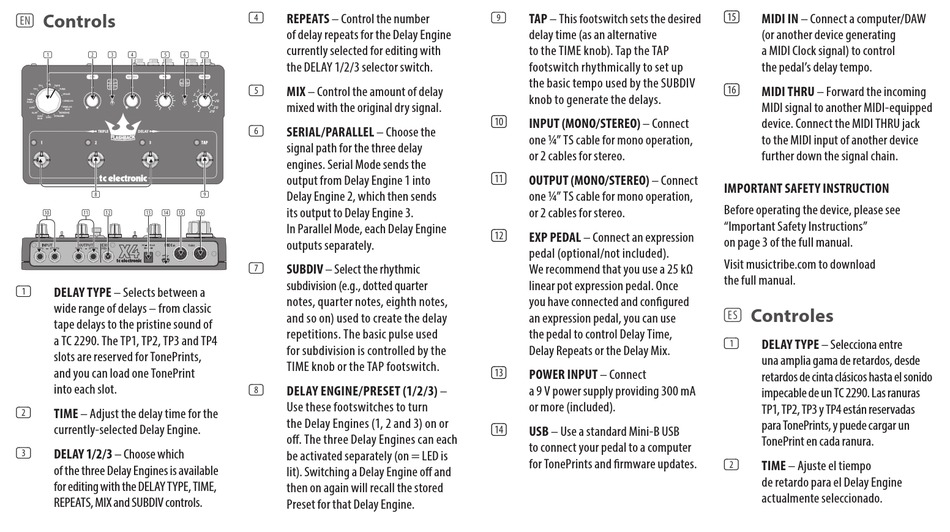

(EN) Controls
(1)
(2)
(3)
(4)
(5)
(6)
(8)
(10)
(11)
(12)
(13)
(14)
(15)
DELAY TYPE – Selects between a
(1)
wide range of delays – from classic
tape delays to the pristine sound of
a TC 2290. The TP1, TP2, TP3 and TP4
slots are reserved for TonePrints,
and you can load one TonePrint
into each slot.
TIME – Adjust the delay time for the
(2)
currently-selected Delay Engine.
DELAY 1/2/3 – Choose which
(3)
of the three Delay Engines is available
for editing with the DELAY TYPE, TIME,
REPEATS, MIX and SUBDIV controls.
REPEATS – Control the number
(4)
of delay repeats for the Delay Engine
currently selected for editing with
(7)
the DELAY 1/2/3 selector switch.
MIX – Control the amount of delay
(5)
mixed with the original dry signal.
SERIAL/PARALLEL – Choose the
(6)
signal path for the three delay
engines. Serial Mode sends the
output from Delay Engine 1 into
Delay Engine 2, which then sends
(9)
its output to Delay Engine 3.
(16)
In Parallel Mode, each Delay Engine
outputs separately.
SUBDIV – Select the rhythmic
(7)
subdivision (e.g., dotted quarter
notes, quarter notes, eighth notes,
and so on) used to create the delay
repetitions. The basic pulse used
for subdivision is controlled by the
TIME knob or the TAP footswitch.
DELAY ENGINE/PRESET (1/2/3) –
(8)
Use these footswitches to turn
the Delay Engines (1, 2 and 3) on or
off. The three Delay Engines can each
be activated separately (on = LED is
lit). Switching a Delay Engine off and
then on again will recall the stored
Preset for that Delay Engine.
TAP – This footswitch sets the desired
(9)
delay time (as an alternative
to the TIME knob). Tap the TAP
footswitch rhythmically to set up
the basic tempo used by the SUBDIV
knob to generate the delays.
INPUT (MONO/STEREO) – Connect
(10)
one ¼" TS cable for mono operation,
or 2 cables for stereo.
OUTPUT (MONO/STEREO) – Connect
(11)
one ¼" TS cable for mono operation,
or 2 cables for stereo.
EXP PEDAL – Connect an expression
(12)
pedal (optional/not included).
We recommend that you use a 25 kΩ
linear pot expression pedal. Once
you have connected and configured
an expression pedal, you can use
the pedal to control Delay Time,
Delay Repeats or the Delay Mix.
POWER INPUT – Connect
(13)
a 9 V power supply providing 300 mA
or more (included).
USB – Use a standard Mini-B USB
(14)
to connect your pedal to a computer
for TonePrints and firmware updates.
MIDI IN – Connect a computer/DAW
(15)
(or another device generating
a MIDI Clock signal) to control
the pedal's delay tempo.
MIDI THRU – Forward the incoming
(16)
MIDI signal to another MIDI-equipped
device. Connect the MIDI THRU jack
to the MIDI input of another device
further down the signal chain.
IMPORTANT SAFETY INSTRUCTION
Before operating the device, please see
"Important Safety Instructions"
on page 3 of the full manual.
Visit musictribe.com to download
the full manual.
(ES) Controles
DELAY TYPE – Selecciona entre
(1)
una amplia gama de retardos, desde
retardos de cinta clásicos hasta el sonido
impecable de un TC 2290. Las ranuras
TP1, TP2, TP3 y TP4 están reservadas
para TonePrints, y puede cargar un
TonePrint en cada ranura.
TIME – Ajuste el tiempo
(2)
de retardo para el Delay Engine
actualmente seleccionado.
