Functional description
S34000 EX purifies the air in two steps.
In the first step, dust is separated in the cyclone. The air is taken in tangentially into the filter cyclone and begins
to circulate powerfully. This causes the particles to be pressed out against the casing surface and then fall to the
bottom.
In the second step, the air passes through a fine filter.
At a signal from the control system, the filters are automatically cleaned by means of an air pulse in the opposite
suction direction. This results in extremely effective cleaning whilst being gentle on the filters. When the filters are
cleaned, a number of very clearly audible air shocks will be heard at intervals of a number of seconds.
S34000 EX is composed of modules and can be fitted in several different ways. The inlet can be twisted and turned
to allow the filter cyclone to fit into the premises.

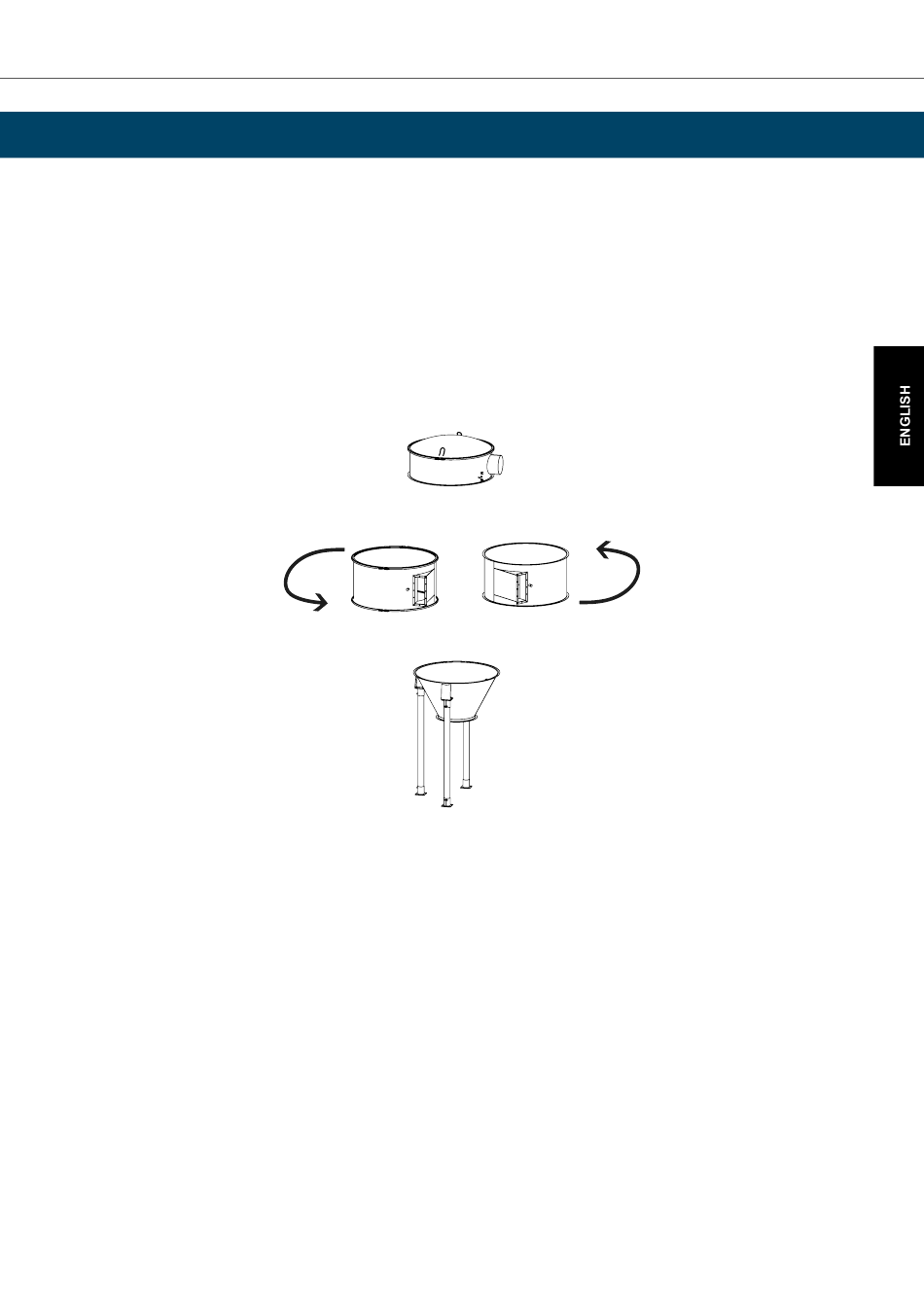

Above: an example of how to configure a filter cyclone
For ATEX-classified filter cyclones, separated material must be collected in a container.
