The outdoor enclosure is designed to house the control unit, the toroidal transformer and any buffer batteries
(Optional).
To secure the toroidal transformer and the board support, consult
the specific instructions.
To secure the control board, follow the instructions below:
1. Position the supplied spacers (Ref. a) on the columns identified
by the following letters: D-L-O-P-R-H-E.
2. Secure the board using the supplied screws (Ref. b).
The spacer located on letter O serves only as a rest for the
board.
3. Locate the cables required for your installation.
To position and wire the battery kit, refer to the relevant
4.
instructions.
If you are using the battery kit, YOU MUST clear the
pre-drilled hole in the lower part of the enclosure (Ref. c)
as specified by current safety laws.

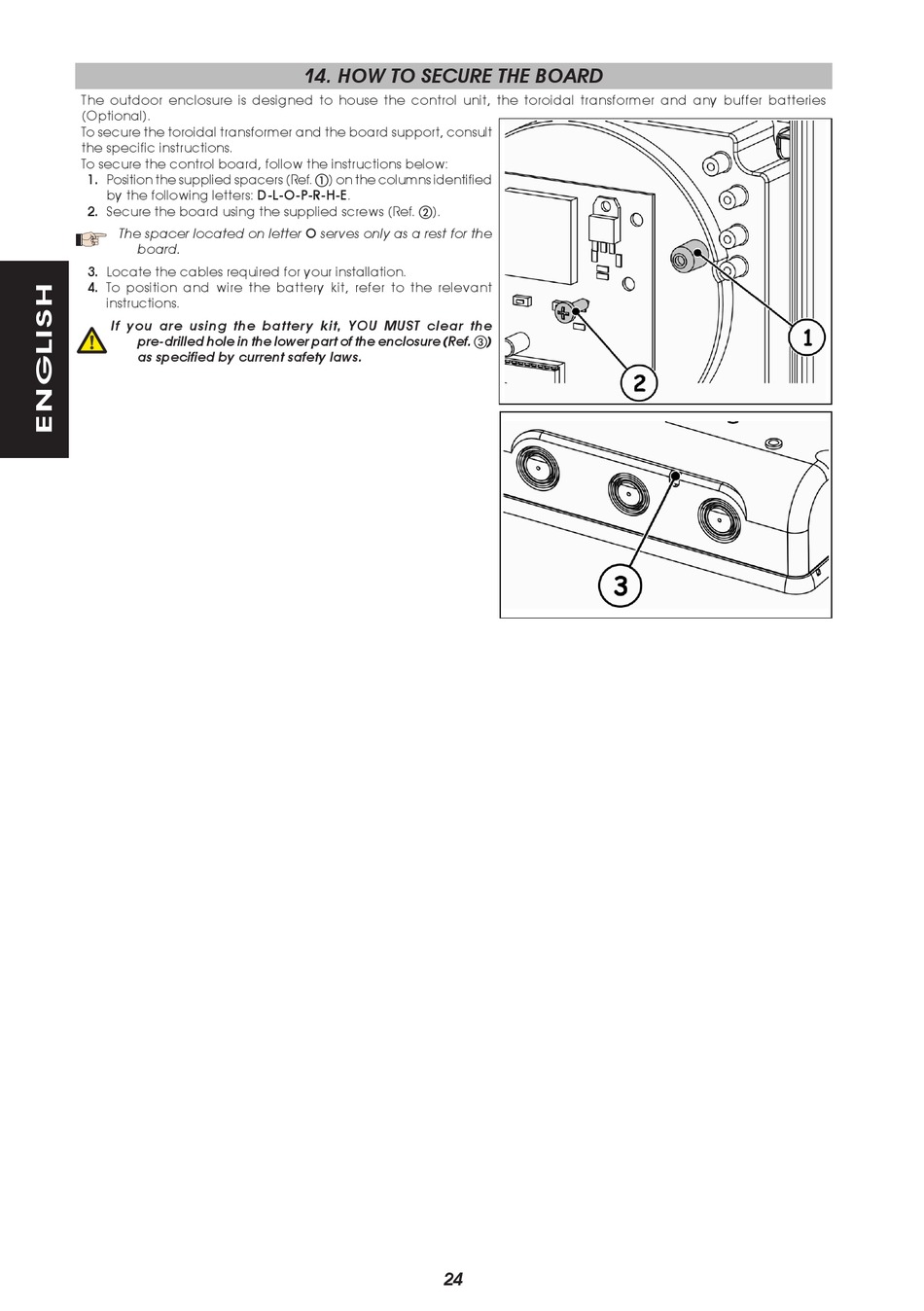

4. HOW TO SECURE THE BOARD
