Checking the WF 25i Robacta Drive and WF 60i Ro-
bacta Drive CMT
Preparation
An electric shock can be fatal.
Before working with the welding system:
► Switch the power switch on the power source to - O -
► Disconnect the power source from the grid
► Ensure that the power source remains disconnected from the grid until all work is com-
► Follow the safety rules and safety instructions for all system components
1
2
3
Checking the
1
1
Drive Unit
3
3
WARNING!
plete

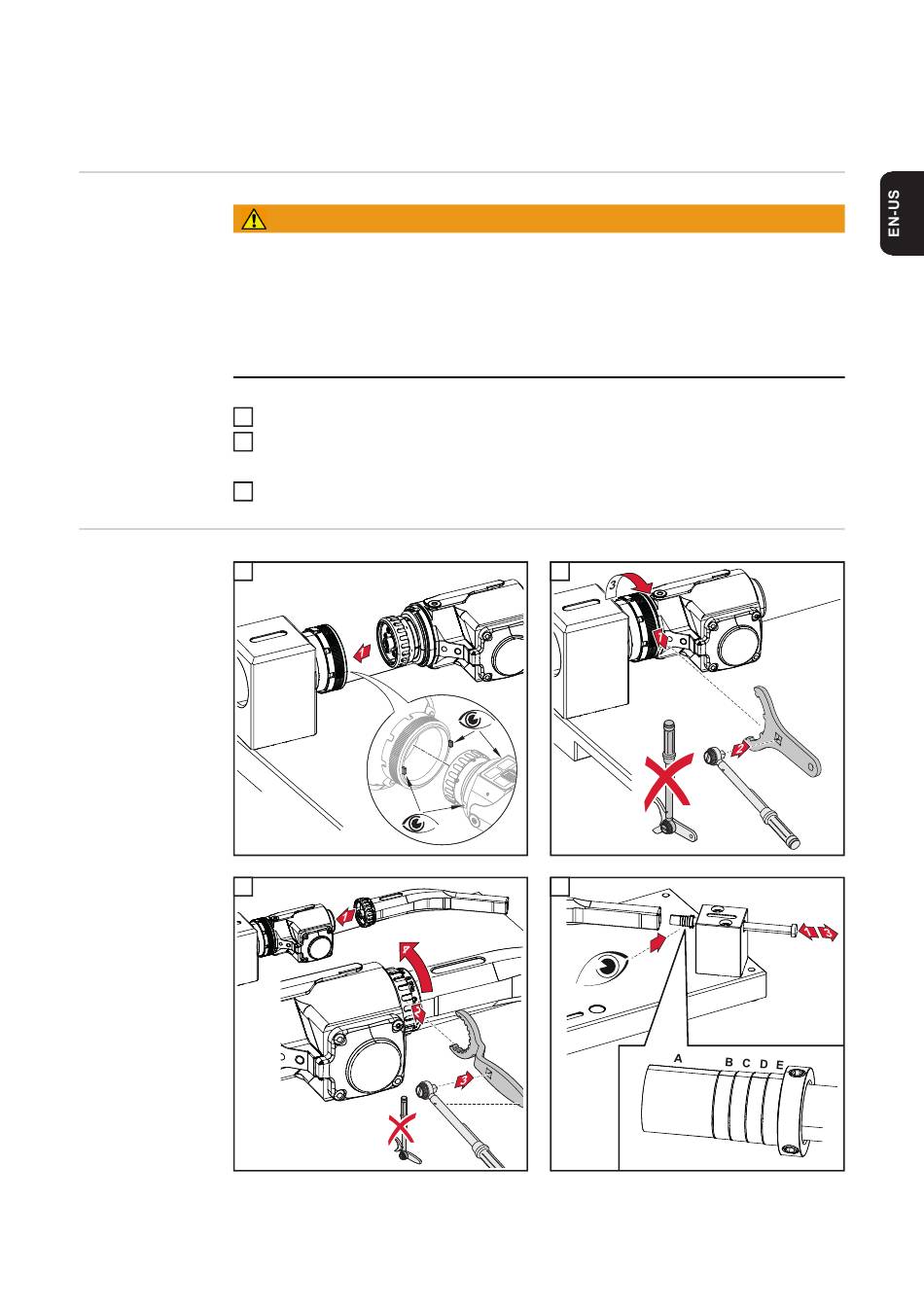

Remove the torch body from the drive unit
If present, close off the wirefeeding hose from the drive unit
Close off the hosepack from the drive unit
Remove the drive unit from the welding system
18 Nm
2
2
4
4
45,0200,1261
A = 1.0 ±0.5 mm, B = 0.8 ±0.4 mm, C = 0.6 ±0.3 mm
D = 0.4 ±0.2 mm, E = 0.2 ±0.1 mm
18 Nm
42,0201,4896
