General
Safety
Incorrect operation and incorrectly performed work can cause serious injury and
material damage.
► Only trained and qualified personnel may carry out the activities described below
► Follow the safety rules in the power source Operating Instructions

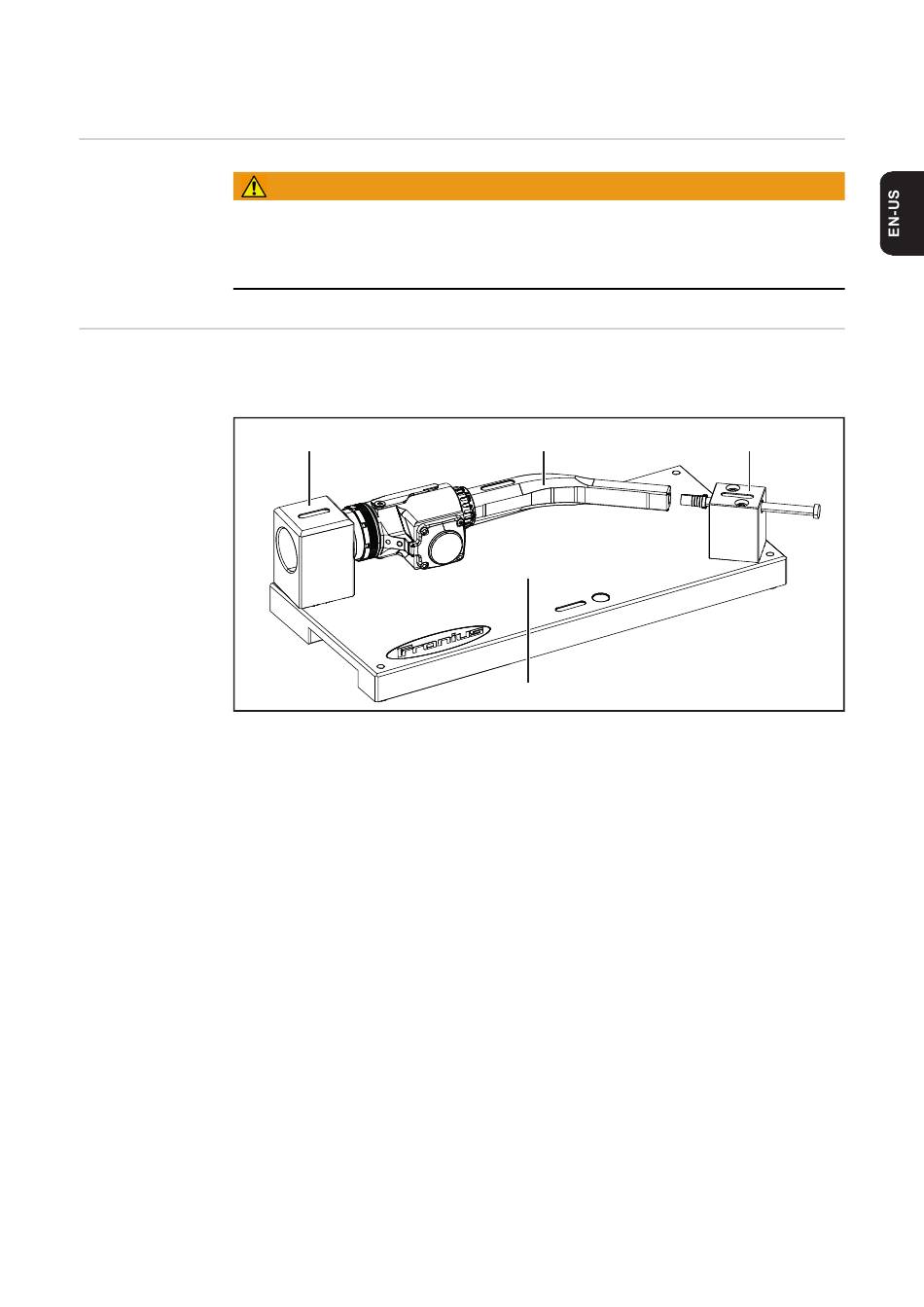

General The testing system is used to check for dimensional deviations on the WF 25i Robacta
Drive and WF 60i Robacta Drive CMT drive units.
The testing system comprises the following:
(1)
(2)
(3)
(4)
The drive unit holder (2) and testing unit (4) are permanently screwed to the base plate (1).
IMPORTANT! Do not loosen the screws on the drive unit holder (2) and testing unit (4),
otherwise the testing system will have to be adjusted and calibrated again.
WARNING!
(2)
Base plate
Drive unit holder
Test bracket
Testing unit
(3)
(1)
(4)
