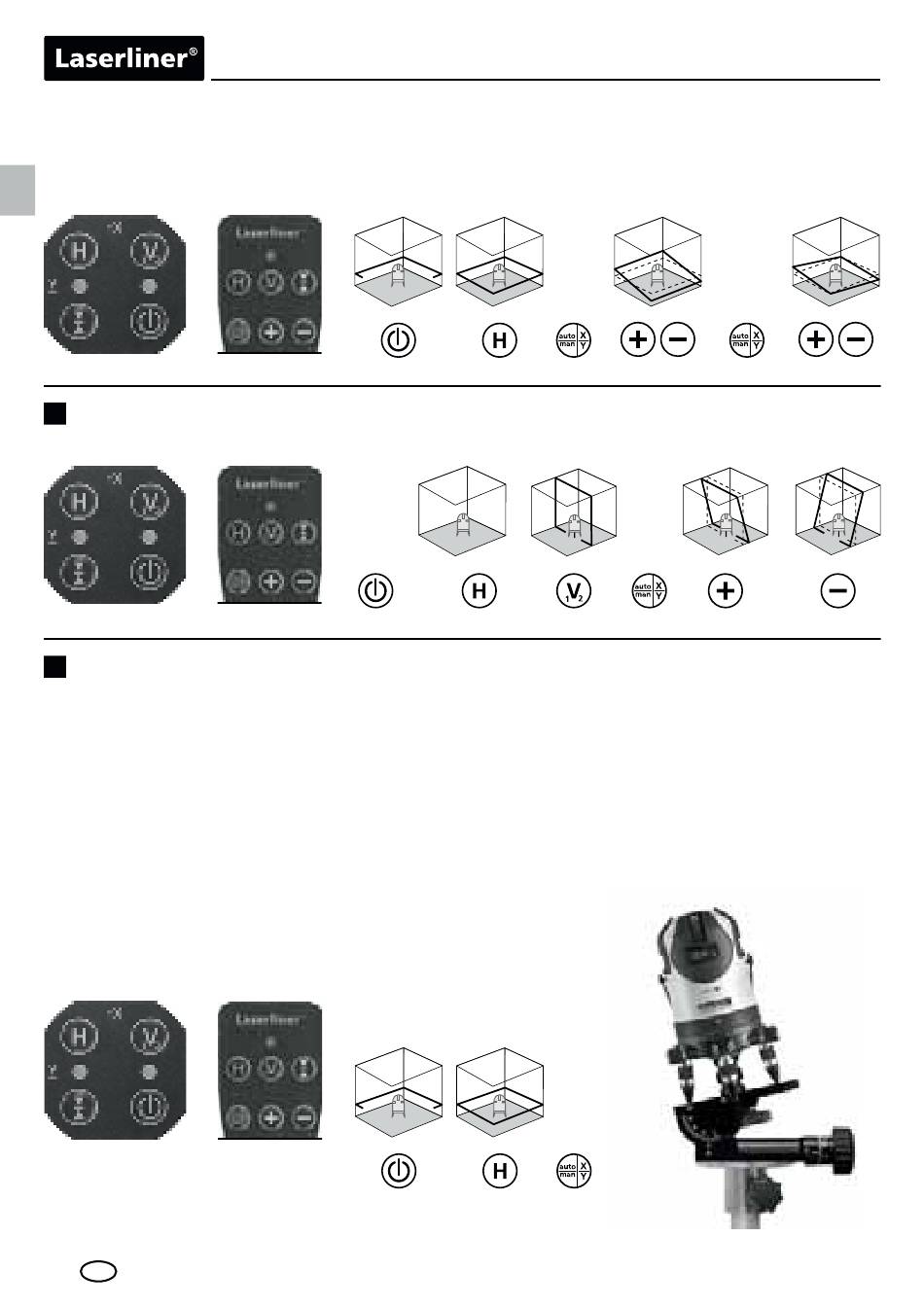

Adjustment of X/ Y axes
The LEDs of the X-axis (15) light up in green.
The LEDs of the Y-axis (16) light up in red.
Adjust vertical slope, to a max. of 3° (Z axis)
6
Slope function > 3°
7
Steeper slopes can be set using the angle plate, w hich is available as an
optional extra (product ref. 080.75). To this end you need to use a crank
tripod, such as the 300 cm professional crank tripod, product ref. 080.34.
Refer to the illustrations below .
TIP: Set the angle plate to the zero position and allow the device to align
itself automatically. Then press the auto/man button to sw itch the automatic
sensor off. Finally, incline the device to the angle you require.
Slope adjustment > 3°
