BraunAbility Caroslide Einbauanleitung Seite 17

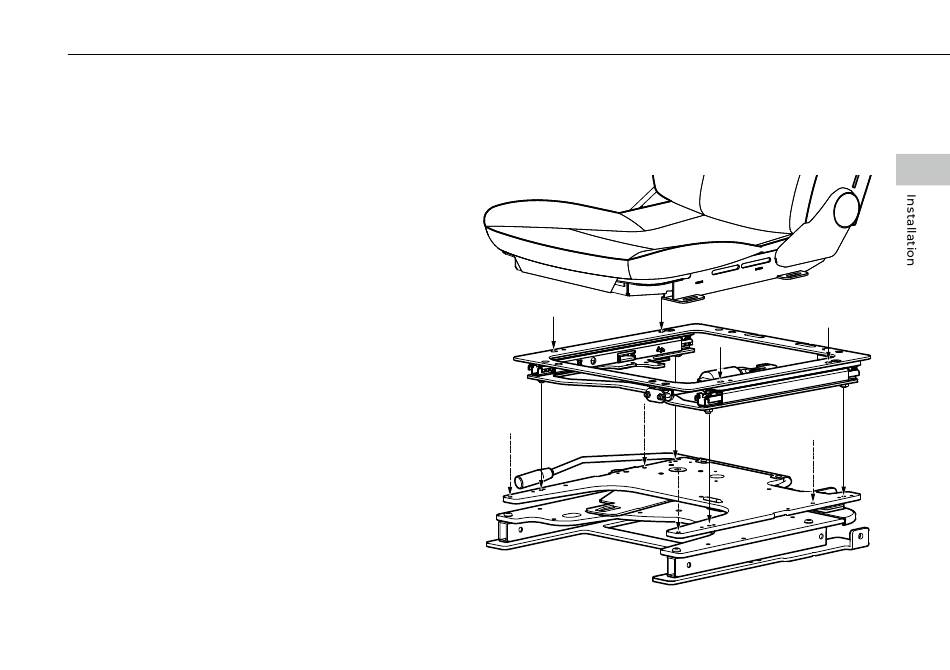

Mounting on top of Turnout with a BEV-seat or Caroseat
1
Remove the four bottom M8 nuts.
2
Screw the four screws, either in the rear drill
pattern or in the front drill pattern, depending
on what is required. Drive back and forth to be
able to reach the screws.
Do NOT use the front drill pattern in vehicles
with a narrow door opening. Using the front
drill pattern would require a door opening of
at least 650 mm, to be able to swivel inside
the vehicle with the rails in a max forward/
out position when a motor failure has
occurred.
Drive Caroslide backwards. Remove the four
3
upper M8 nuts (B), exchange the four M8
screws for the enclosed M8x35 screws. Screw
the seat onto the Caroslide.
The wiring diagram is found on
page 52.
Front drill
pattern
Caroslide
Flex
®
Rear drill
pattern
