Caroslide

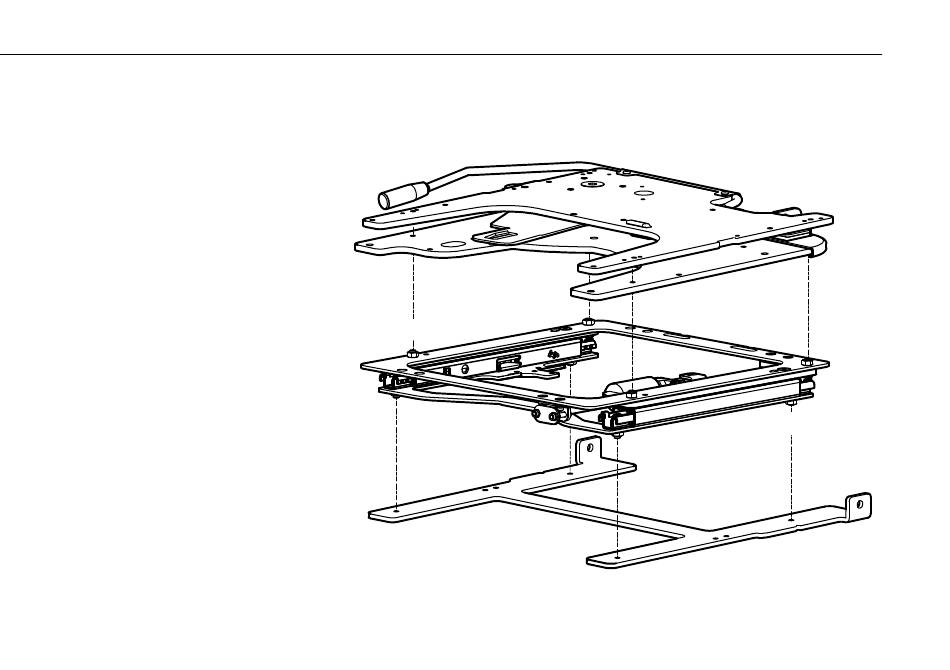

Mounting underneath the Turnout
1
Countersink the holes in the
mounting bracket to use for
mounting the bracket legs.
Remove the four M8 nuts
2
from the underside of
Caroslide.
Fix the four M8 screws in the
3
(M8) holes on the Turnout
mounting bracket. Drive back
and forth to be able to reach
the screws.
Drive Caroslide backwards.
4
Remove the upper M8 nuts.
Screw the four remaining M8
5
screws in the Turnout.
The wiring diagram is found
on page 52.
Upper nut
Bottom nut
Mounting bracketl
