Caroslide
Installation

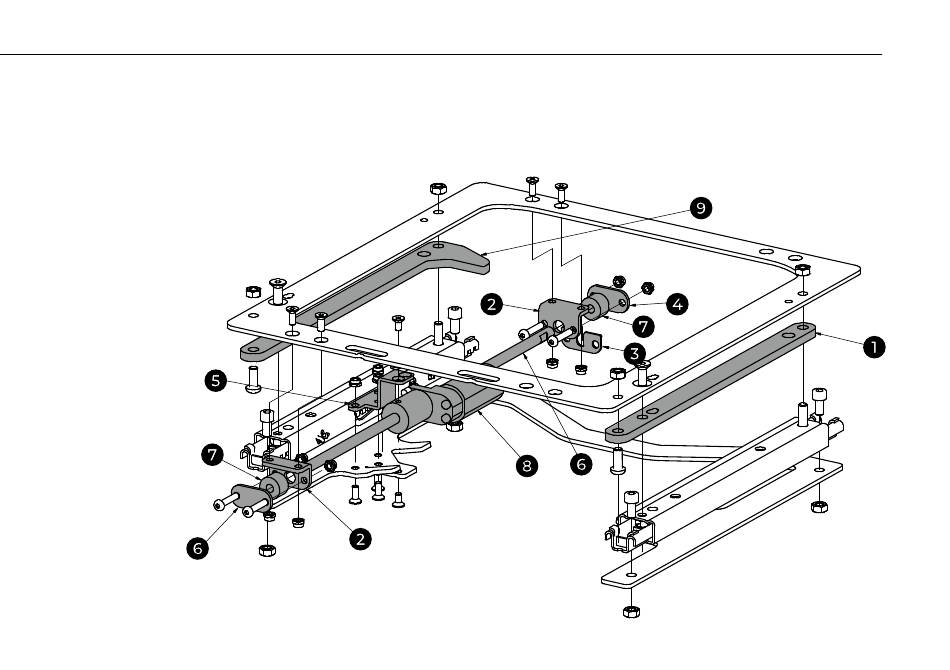

Rebuilding the Caroslide for left side operation
If the Turnout is in a left side version the Caroslide must be rebuilt
for left side operation.
Following parts must be moved and
mirror-inverted, marked in grey.
1 Spacer
2 Bracket
3 Rotation lock
4
Locking plate
5
Motor bracket
6 Threaded axle
7 Nuts, 2 pcs.
8 Motor
9 Stop spacer
