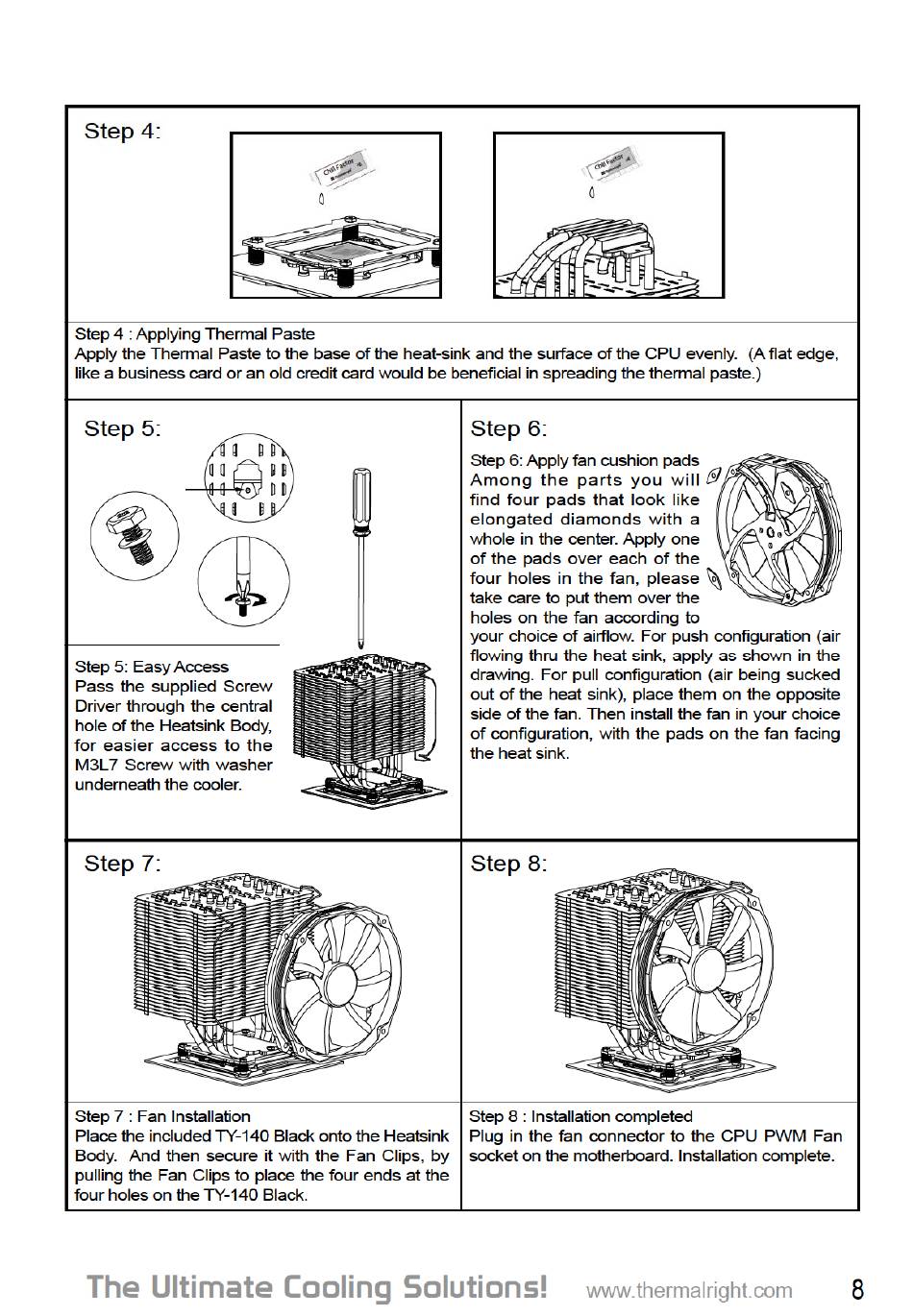

Thermalright Macho Direct Bedienungsanleitung Seite 11

Step 4:
Step 4 : Applying Thermal Paste
Apply the Thermal Paste to the base of the heat-sink and the surface of the CPU evenly.
like a business card or an old credit card would be beneficial
Step 5:
Step 5: Easy Access
Pass the supplied Screw
Driver through the central
hole of the Heatsink Body,
for easier access to the
M3L7 Screw with washer
underneath the cooler.
step 7:
Step 7 : Fan Installation
Place the included TY-140
Body. And then secure
pulling the Fan Clips to place the four ends at the
four holes on the TY-140
The Ultimate
0
Black onto the Heatsink
it with the Fan Clips, by
Black.
Cooling Solutions!
in spreading the thermal paste.)
Step 6:
Step 6: Apply fan cushion pads
Among the parts you
find four pads that look like
elongated diamonds
whole in the center. Apply one
of the pads over each of the
four holes in the fan, please
take care to put them over the
holes on the fan according
your choice of airflow. For push configuration
flowing thru the heat sink, apply as shown in the
drawing. For pull configuration
out of the heat sink), place them on the opposite
side of the fan. Then install the fan in your choice
of configuration, with the pads on the fan facing
the heat sink.
step 8:
Step 8 : Installation completed
Plug in the fan connector
socket on the motherboard.
www.thermalright.com
(A flat edge,
will
with a
00 0
to
(air
(air being sucked
O
to the CPU PWM Fan
Installation complete.
8
