Technical Information

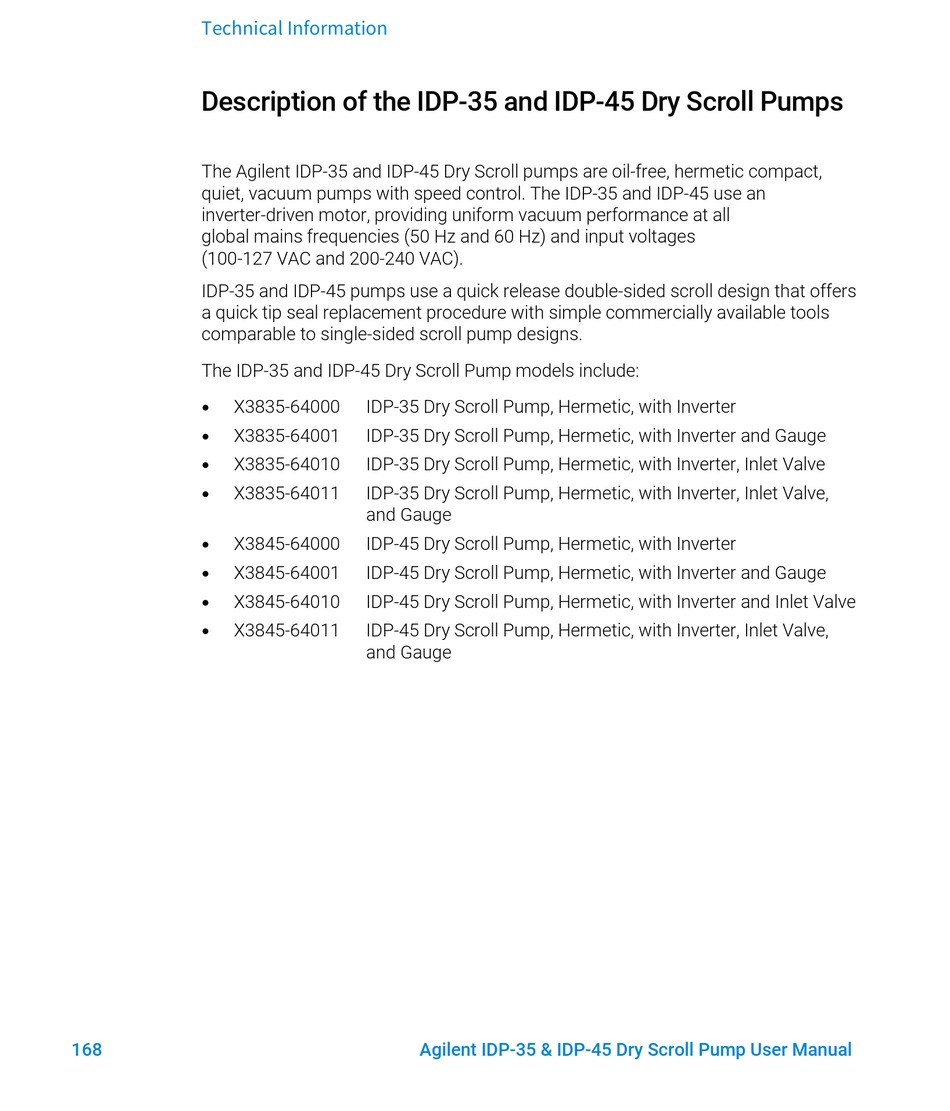

Description of the IDP-35 and IDP-45 Dry Scroll Pumps
The Agilent IDP-35 and IDP-45 Dry Scroll pumps are oil-free, hermetic compact,
quiet, vacuum pumps with speed control. The IDP-35 and IDP-45 use an
inverter-driven motor, providing uniform vacuum performance at all
global mains frequencies (50 Hz and 60 Hz) and input voltages
(100-127 VAC and 200-240 VAC).
IDP-35 and IDP-45 pumps use a quick release double-sided scroll design that offers
a quick tip seal replacement procedure with simple commercially available tools
comparable to single-sided scroll pump designs.
The IDP-35 and IDP-45 Dry Scroll Pump models include:
X3835-64000
X3835-64001
X3835-64010
X3835-64011
X3845-64000
X3845-64001
X3845-64010
X3845-64011
168
IDP-35 Dry Scroll Pump, Hermetic, with Inverter
IDP-35 Dry Scroll Pump, Hermetic, with Inverter and Gauge
IDP-35 Dry Scroll Pump, Hermetic, with Inverter, Inlet Valve
IDP-35 Dry Scroll Pump, Hermetic, with Inverter, Inlet Valve,
and Gauge
IDP-45 Dry Scroll Pump, Hermetic, with Inverter
IDP-45 Dry Scroll Pump, Hermetic, with Inverter and Gauge
IDP-45 Dry Scroll Pump, Hermetic, with Inverter and Inlet Valve
IDP-45 Dry Scroll Pump, Hermetic, with Inverter, Inlet Valve,
and Gauge
Agilent IDP-35 & IDP-45 Dry Scroll Pump User Manual
