QT-12HS/HR/HB/HY/B
QT-12ES/ER/EB/EY

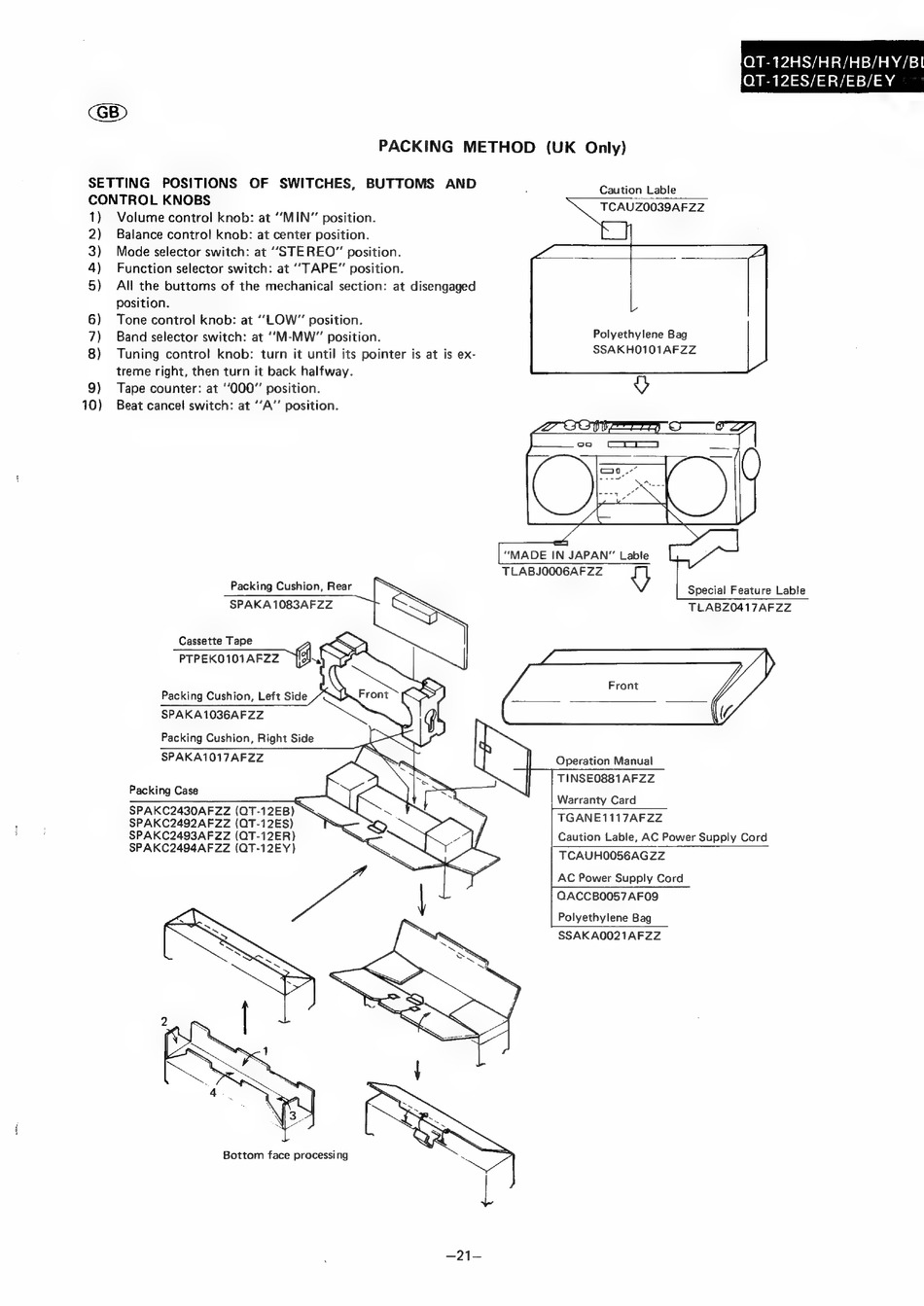

PACKING
METHOD
(UK Only)
SETTING
POSITIONS
OF
SWITCHES,
BUTTOMS
AND
CONTROL
KNOBS
1)
Volume control knob: at "MIN" position.
2)
Balance control knob: at center position.
3)
Mode selector switch: at "STEREO" position.
4)
Function selector switch: at '"'TAPE" position.
5)
All the buttoms of the mechanical section: at disengaged
Caution Lable
TCAUZO039AFZZ
position.
6)
Tone control knob: at ''"LOW" position.
7)
Band selector switch: at "'M-MW" position.
Polyethylene Bag
SSAKHO101AFZZ
8)
Tuning control knob:
turn it until its pointer is at is ex-
treme right, then turn it back halfway.
9)
Tape counter: at '000" position.
10)
Beat cancel switch: at ''A'' position.
"MADE
IN JAPAN" Lable
TLABJOOOGAFZZ
}
Packing Cushion, Rear
SPAKA1083AFZZ
Cassette Tape
yy
PTPEKO101AFZZ
a
Packing Cushion, Left Side
SPAKA1036AFZZ
Special Feature Lable
TLABZ0417AFZZ
Packing Cushion, Right Side
SPAKA1017AFZZ
Operation Manual
TINSEO881AFZZ
Packing Case
SPAKC2430AF2ZZ (QT-12EB)
SPAKC2492AFZZ (QT-12ES)
SPAKC2493AFZZ
(QT-12ER)
SPAKC2494AFZZ
(QT-12EY)
Warranty Card
TGANE1117AFZZ
Caution Lable, AC Power Supply Cord
TCAUHO0O56AGZZ
AC Power Supply Cord
QACCBO0057 AFO9
Polyethylene Bag
SSAKA0021AFZZ
Bottom face processing
21
