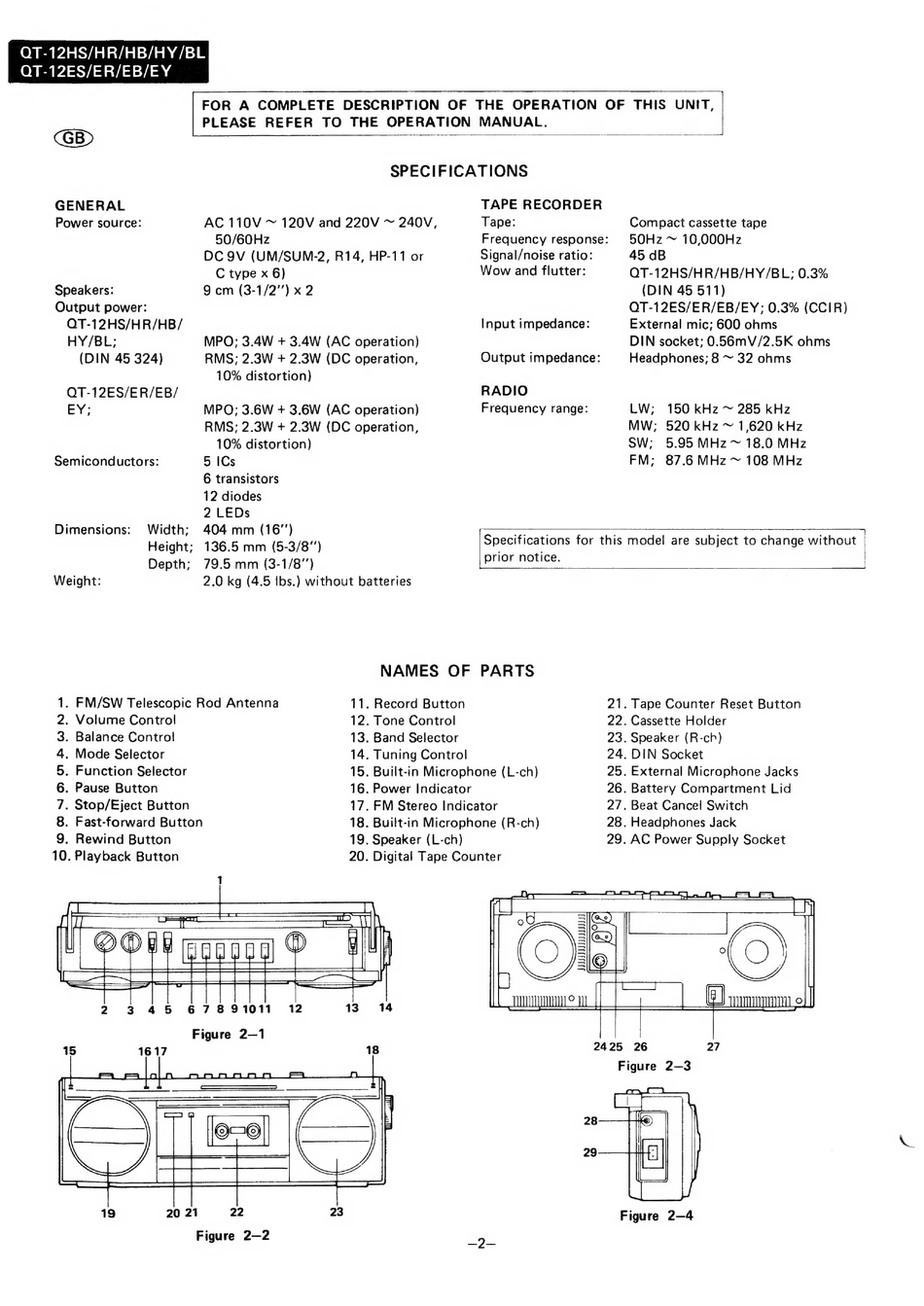

QT-12HS/HR/HB/HY/BL
OQT-12ES/ER/EB/EY
ae A COMPLETE
DESCRIPTION
OF THE
OPERATION
OF THIS
UNIT,
PLEASE
REFER
TO THE
OPERATION
MANUAL.
SPECIFICATIONS
GENERAL
TAPE RECORDER
Power source:
AC 110V ~ 120V and 220V ~ 240V,
Tape:
Compact cassette tape
50/60Hz
Frequency response:
50Hz ~ 10,000Hz
DC 9V (UM/SUM-2, R14, HP-11 or
Signal/noise ratio:
45 dB
C type x 6)
Wow and flutter:
QT-12HS/HR/HB/HY/BL; 0.3%
Speakers:
9 cm (3-1/2'') x 2
(DIN 45 511)
Output power:
QT-12ES/ER/EB/EY; 0.3% (CCIR)
QT-12HS/HR/HB/
Input impedance:
External mic; 600 ohms
HY/BL;
MPO; 3.4W + 3.4W (AC operation)
DIN socket; 0.56mMV/2.5K ohms
(DIN 45 324)
RMS; 2.3W + 2.3W (DC operation,
Output impedance:
Headphones; 8 ~ 32 ohms
10% distortion)
OT-12ES/ER/EB/
RADIO
EY;
MPO; 3.6W + 3.6W (AC operation)
Frequency range:
LW;
150 kHz ~ 285 kHz
RMS; 2.3W + 2.3W (DC operation,
MW;
520 kHz ~ 1,620 kHz
10% distortion)
SW;
5.95 MHz ~ 18.0 MHz
Semiconductors:
5 ICs
FM;
87.6 MHz ~ 108 MHz
6 transistors
12 diodes
2 LEDs
Dimensions:
Width;
404 mm (16")
at
;
:
:
Height;
136.5 mm (5-3/8")
Specifications for this model are subject to change without
Depth; 79.5 mm (3-1/8")
SN
eee
_—
Weight:
2.0 kg (4.5 lbs.) without batteries
NAMES OF PARTS
1. FM/SW Telescopic Rod Antenna
11. Record Button
21. Tape Counter Reset Button
2. Volume Control
12. Tone Control
22. Cassette Holder
3. Balance Control
13. Band Selector
23. Speaker (R-ch)
4. Mode Selector
14. Tuning Control
24. DIN Socket
5. Function Selector
15. Built-in Microphone (L-ch)
25. External Microphone Jacks
6. Pause Button
16. Power Indicator
26. Battery Compartment Lid
7. Stop/Eject Button
17. FM Stereo Indicator
27. Beat Cancel Switch
8. Fast-forward Button
18. Built-in Microphone (R-ch)
28. Headphones Jack
9. Rewind Button
19. Speaker (L-ch)
29. AC Power Supply Socket
10. Playback Button
20. Digital Tape Counter
2
3
45
67891011
12
13.
«14
Figure 2—1
2425
26
27
Figure
2—3
19
20 21
22
23
Figure
2-4
Figure 2—2
_9_
