WIRING &
CONNECTION
The unit requires connection to a
240Vac 50Hz mains electricity supply. This
is best achieved by connecting the unit to
the domestic lighting circuit. It is suggested
that 3-core round flexible cable of at least
2
1mm gauge is used. It is also allowable
for the unit to be connected to the domestic
socket ring main, though it is suggested
that a 5 amp fused spur is used in this
case.
IMPORTANT
ALWAYS switch OFF the mains power
BEFORE attempting to install or maintain
the PIR. If in doubt,
consult a qualified electrician.
All installations shall comply with
National Wiring Regulations.
NOTE : when connecting to METAL LIGHT
FITTINGS ensure an earth conductor is
connected to provide earth continuity to
the metal fitting.

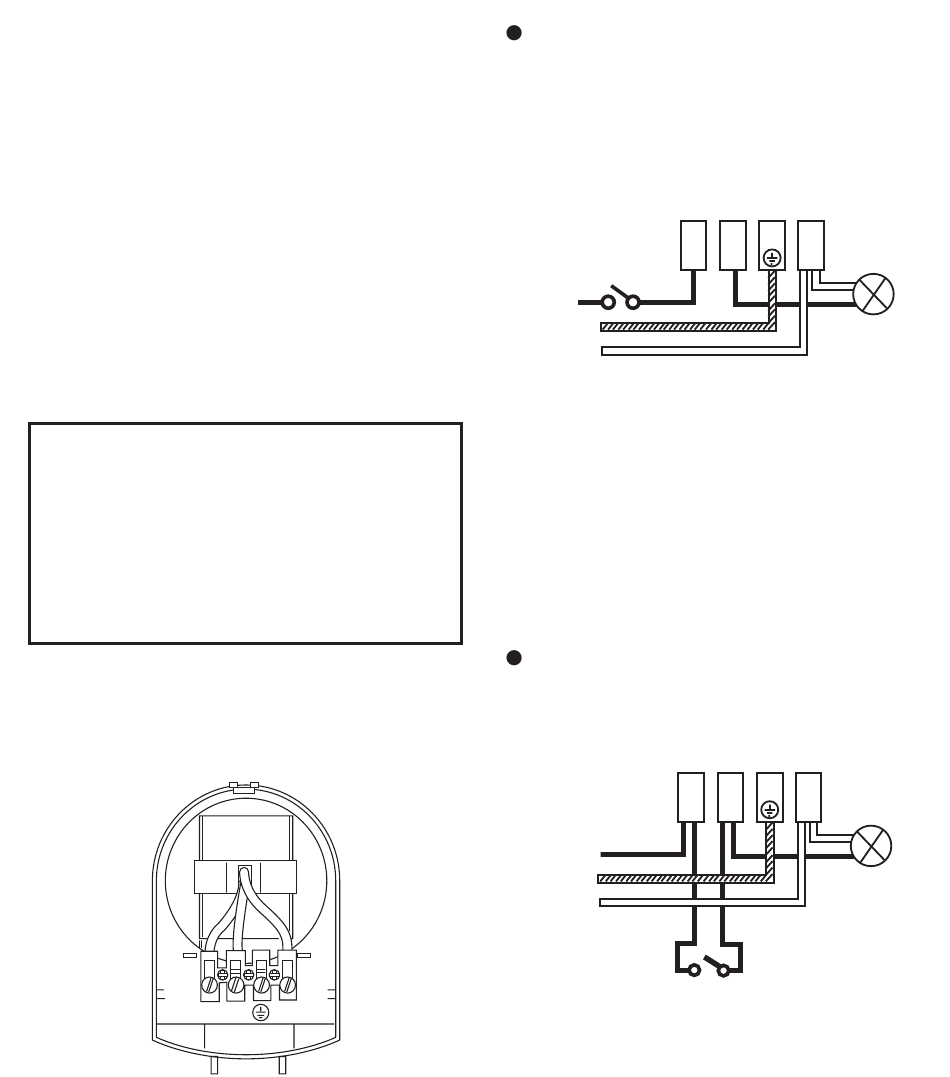

Fig. 9
L L1 L1 N
Auto / Off Wiring in this manner
provides the following lighting options:
Automatic operation (Switch closed)
Permanently Off (Switch open)
INDOOR SWITCH
FOR PERMANENT OFF
OVERRIDE
(OPTIONAL)
LIVE
EARTH
NEUTRAL
Fig. 10
Additional feature - when in Auto mode,
switching off, then back on, will result in
the lamp illuminating for the pre-set time
period. This is ideal for lighting the way
when leaving premises.
Auto / On Provides the following
lighting options:
Automatic operation (Switch open)
Permanently On (Switch closed)
LIVE
EARTH
NEUTRAL
INDOOR SWITCH
FOR PERMANENT ON
Fig. 11
OVERRIDE (OPTIONAL)
4
L L1 N
LAMP
L L1 N
LAMP
