FRIEDLAND SPECTRA 200 Bedienungsanleitung Seite 6

Fig. 4
15M
Fig. 5
2

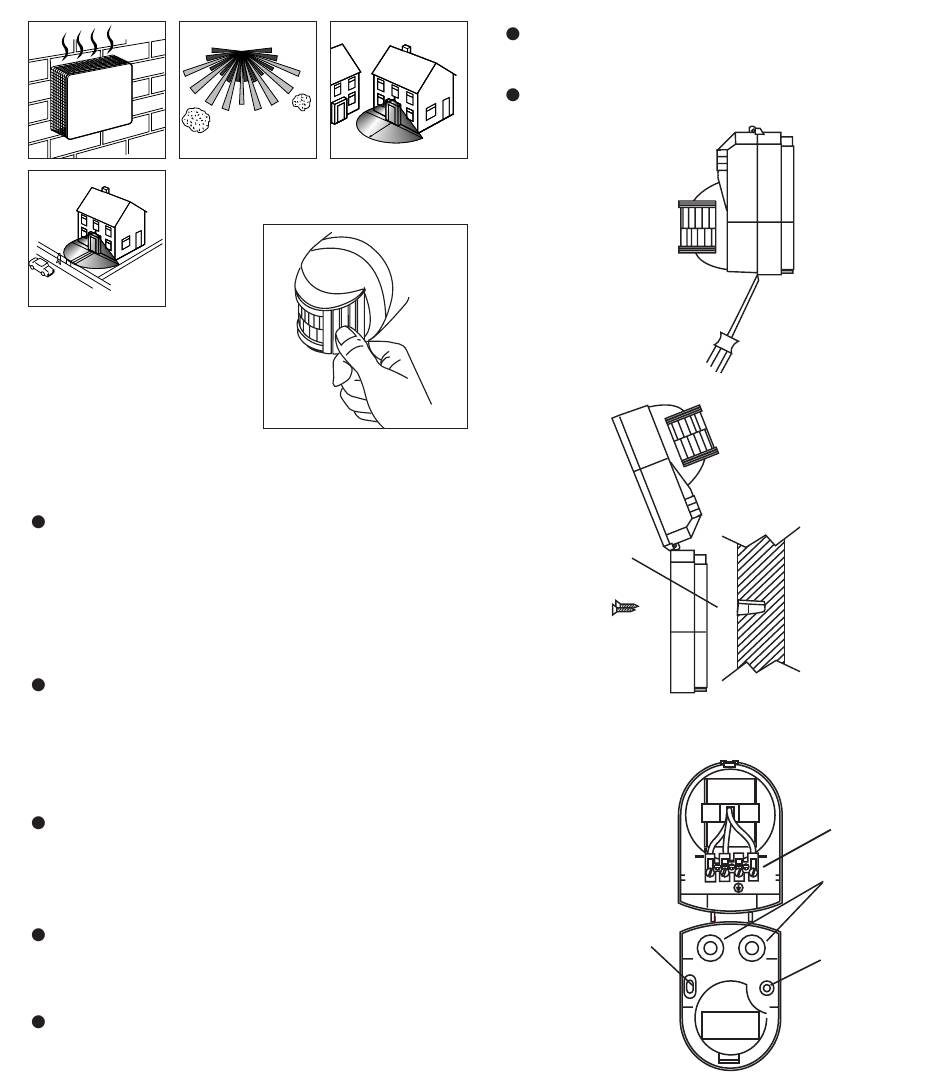

MOUNTING
Open the PIR Detector by inserting a
small flat bladed screwdriver into the
slot at the base of the unit [Fig. 6]. Push
screwdriver gently to release catch and
to allow front cover to be opened fully -
the cover is hinged at the top.
Place the backplate of the unit in the
desired position and mark the locations
of the mounting holes [Fig. 7]. Next
drill the holes to the required depth
and insert the wall plugs.
Cabling can either be from directly
behind the unit through the wall, or
along the surface from below - via the
gaps provided in the housing [Fig. 8].
Pierce the grommets and feed the
recommended cable through them,
ensuring a watertight seal.
Screw the unit to the wall - do not
over-tighten screws.
Connect cables according to one of
the diagrams in Section 3.
Re-assemble the unit.
30M 15M
Fig. 7
L L1 N
SURFACE CABLING
Fig. 8
3
Fig. 6
MOUNTING
HOLES
CUT-OUTS FOR
L L1 L1
MOUNTING
HOLE
TERMINAL
BLOCK
CABLE ENTRY
N
MOUNTING
HOLE
