TILO™ Quick Start Guide
Safety Notice!
!
Do not blaze directly into the eyes when using the
high brightness levels. Take special care when using
the IR LED. Since the light is invisible, the adverse-ef-
fects reflex of the eye (eyelid reflex) does not work.
Therefore, especially when using the IR light, an eye
hazard has to be avoided.
Find more useful information on our website:
www.andres-industries.de

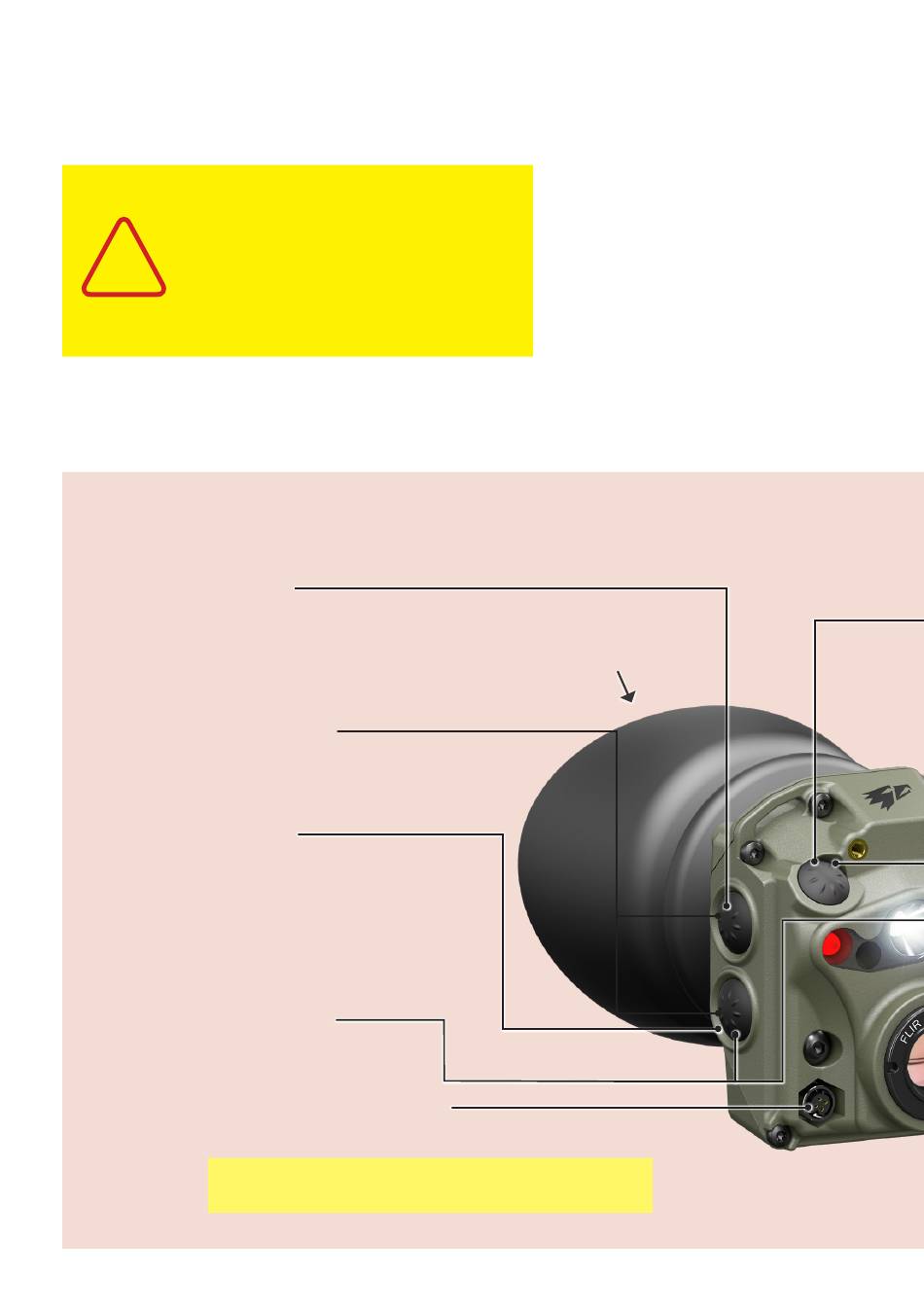

Operating thermal image
Button 2
Press and hold: Change filter
Press briefly: Zoom
The zoom levels are:
0.8× (better overview)
1×, 2×, 4×, 8×
Button 1 & 2
Press and hold both buttons:
Thermal mode on / off
(e.g. if flap is damaged)
Button 1
Press briefly:
Display brightness, alternating
Press for 2 seconds:
Manual calibration e.g. with afocal lens
Press for 7 seconds:
Video mode (PAL/NTSC) off
Button 1 & 4
Press and hold both buttons:
Enter menu
Device connector for external power
supply and video output
Note: If the power/video access of the device connector is not used,
it must always be closed waterproof with the cap provided.
30
Valid for (from firmware 1.0.09):
TILO - 3Z™
TILO - 3Z+™
TILO - 3M™
TILO - 3Z+2
™
×
TILO - 6Z™
TILO - 6Z+™
TILO - 6M™
TILO-6MA™
Eyecup
(option)
2
1
3
