7.3
Maintenance:
1. Periodically check tightness of mounting bolts and electrical connections. Remove all the dirt or
corrosion that may have accumulated on the electrical connections.
2. Do not attempt to disassemble the gearbox. Disassembly will void warranty. Repairs should only
be done by manufacturer or by authorized repair centers.
3. The gearbox has been lubricated using high temperature lithium grease at the factory.
No internal lubrication is required.
7.4
Replace the wire rope:
1. Engage the clutch by turning the clutch knob to the "In" position.
2. When inserting the wire rope into the drum, insert it into the correct end of the hole provided
(Figure 2). Tighten the set screw securely.

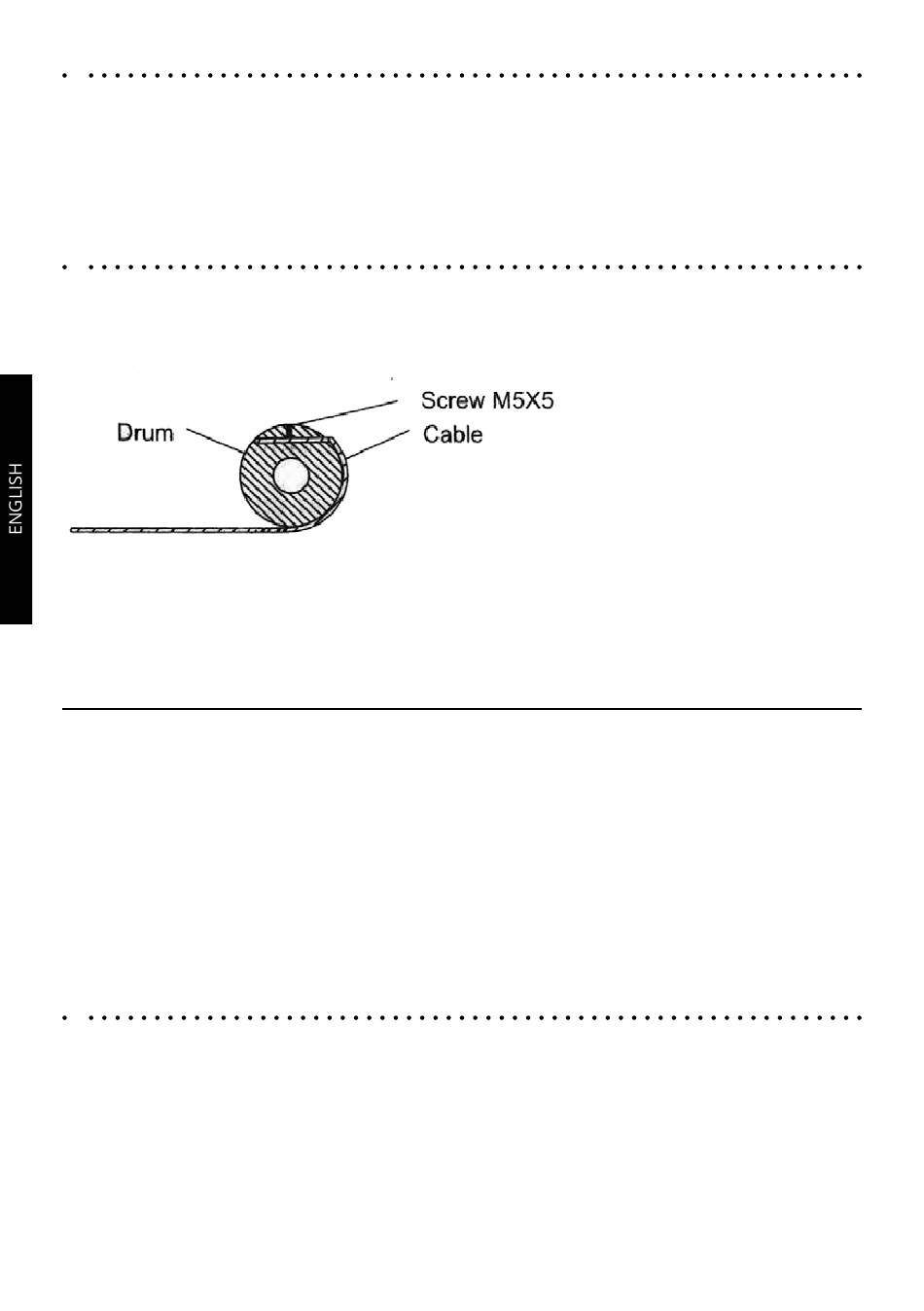

Figure 2
3. Operate the winch and re-spool the wire rope around the drum.
8. Instruction for use
Make sure that the machine has been installed correctly. Make sure that the rope has been wound
up correctly.
Make sure that the load is properly attached to the hook and is not more than 3 ° out of equilib-
rium.
Immediately switch off the machine if the impression arises that the load can hardly be pulled at
all or not at all.
Keep an eye on the load during operation.
Stop the machine as soon as the red part of the rope becomes visible. The red part of the rope
must not be unwound.
The following factors influence the resistance of the load to be pulled: weight of the load; to be
passed through surface; Slope on which the load is moved.
8.1
Working at larger angles
Use the cable guide if working with angles greater than 3 °.
Make sure the rope is not tangled.
Make sure that the rope is wound up normally after work.
Figure 1
