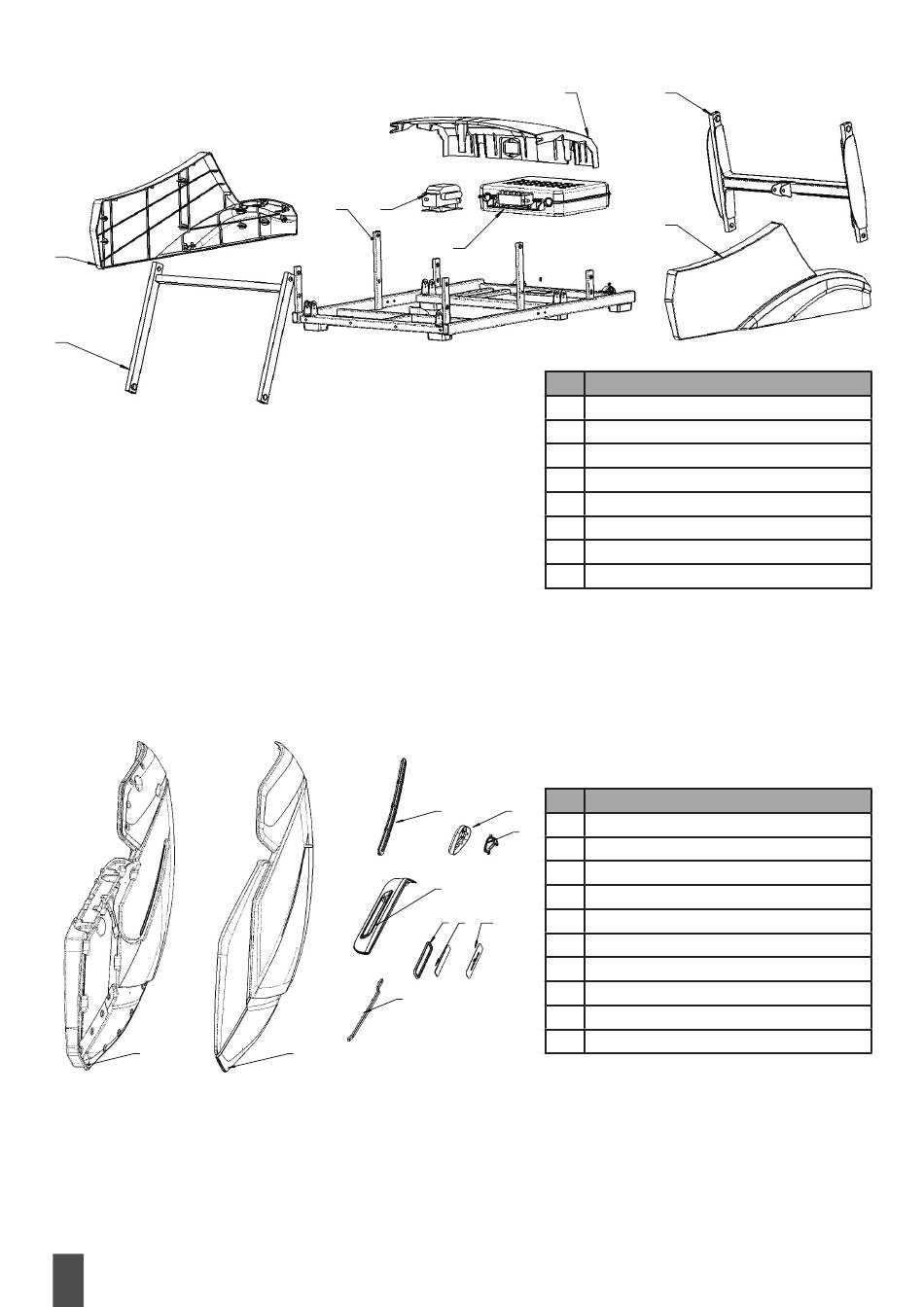

3. Massage Chair Base Assembly Drawing
4
3
4. Left Armrest Assembly Drawing
2
2
32
1
8
7
1
3
4
8 9
5
1
6
No� Name
1 Base Welded assembly
2 Back Rack assembly
3 Front Rack assembly
4 Lower Armrest - Right
5 Lower Armrest - Left
6 Power Supply box cover
7 Power Supply box
8 Air Pump
No� Name
6
7
1 Armrest Decorative cover - Left
2 Armrest assembly - Left
3 LED cover - Left
4 Upper Decorative cover - Left
10
5 Small Decorative cover - Left
6 Speaker cover - Left
7 Speaker Inner plastic cover - Left
8 LED Fixing base - Left
9 LED Plate
10 Logo Sticker
