Connection of heating elements

PLEASE NOTE THAT THE HEATING ELEMENTS HAVE THE CORRECT
POSITION!
Please mount the heating elements as described in the manual. Please note their
numbering as follows:
II
I
III
IV
VI
V

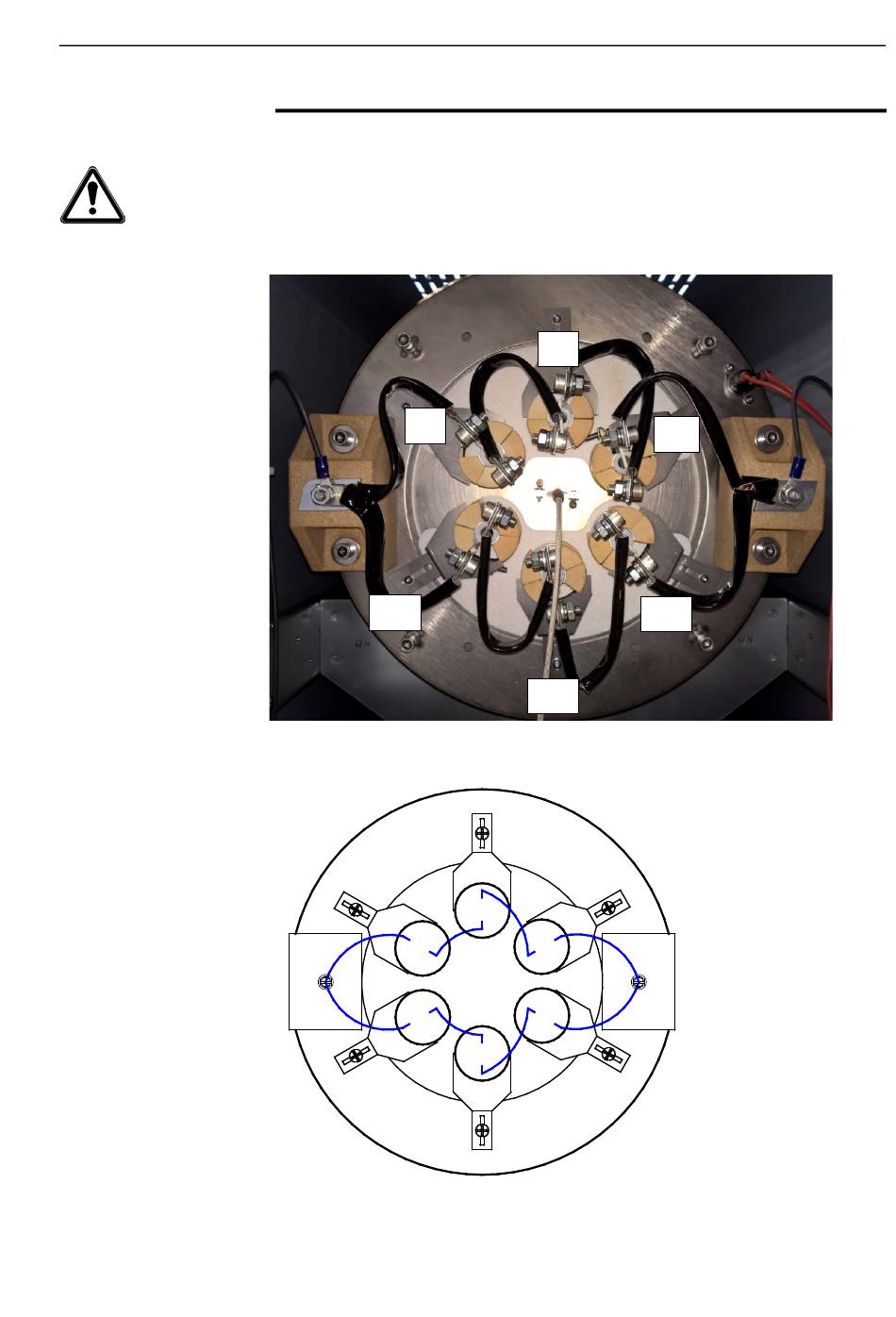

Connection of the heating elements with a supply voltage of 230 V AC
