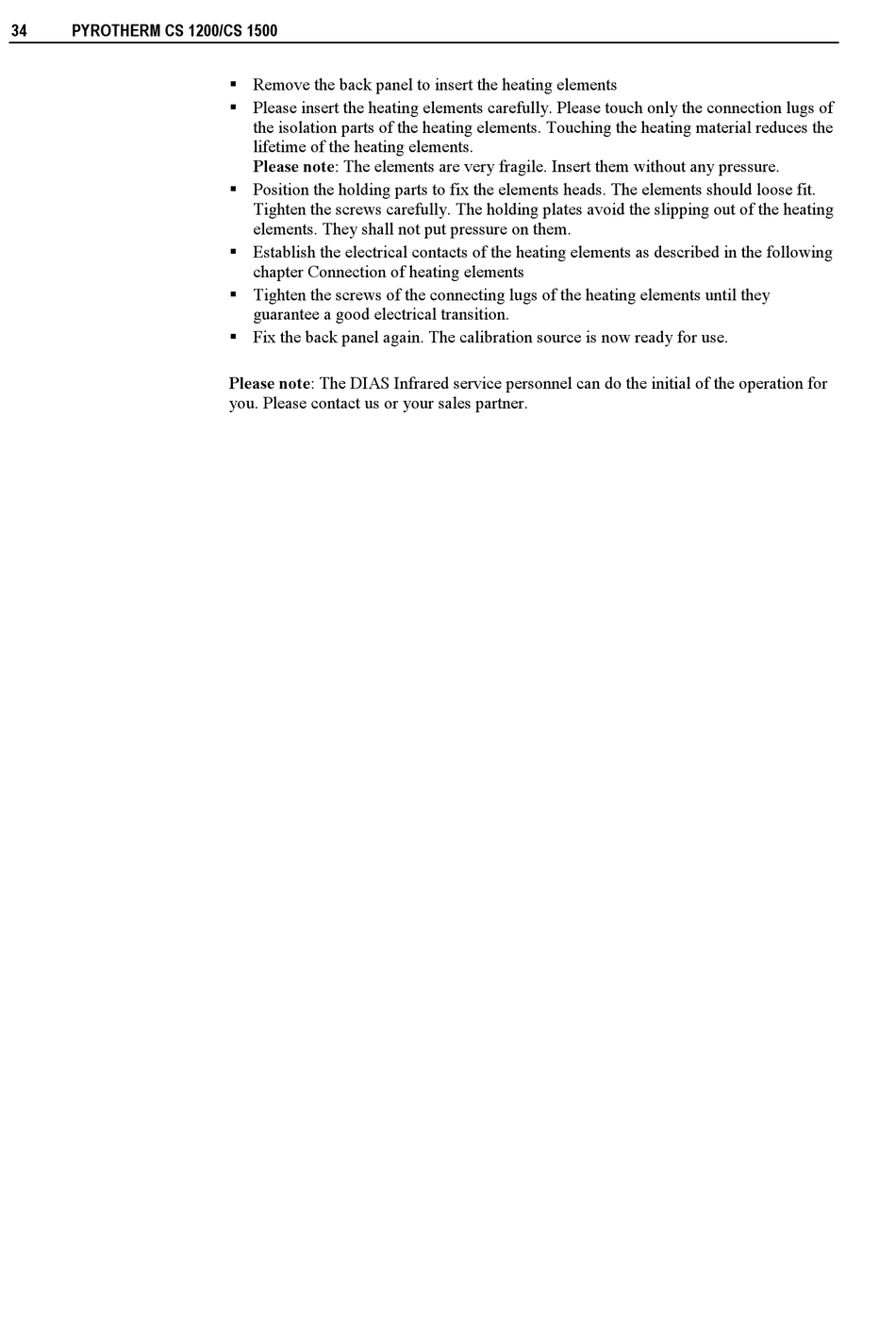

34 PYROTHERM CS 1200/CS 1500
 Remove the back panel to insert the heating elements
 Please insert the heating elements carefully. Please touch only the connection lugs of
the isolation parts of the heating elements. Touching the heating material reduces the
lifetime of the heating elements.
Please note: The elements are very fragile. Insert them without any pressure.
 Position the holding parts to fix the elements heads. The elements should loose fit.
Tighten the screws carefully. The holding plates avoid the slipping out of the heating
elements. They shall not put pressure on them.
 Establish the electrical contacts of the heating elements as described in the following
chapter Connection of heating elements
 Tighten the screws of the connecting lugs of the heating elements until they
guarantee a good electrical transition.
 Fix the back panel again. The calibration source is now ready for use.
Please note: The DIAS Infrared service personnel can do the initial of the operation for
you. Please contact us or your sales partner.
