C 1 2
H A P T E R

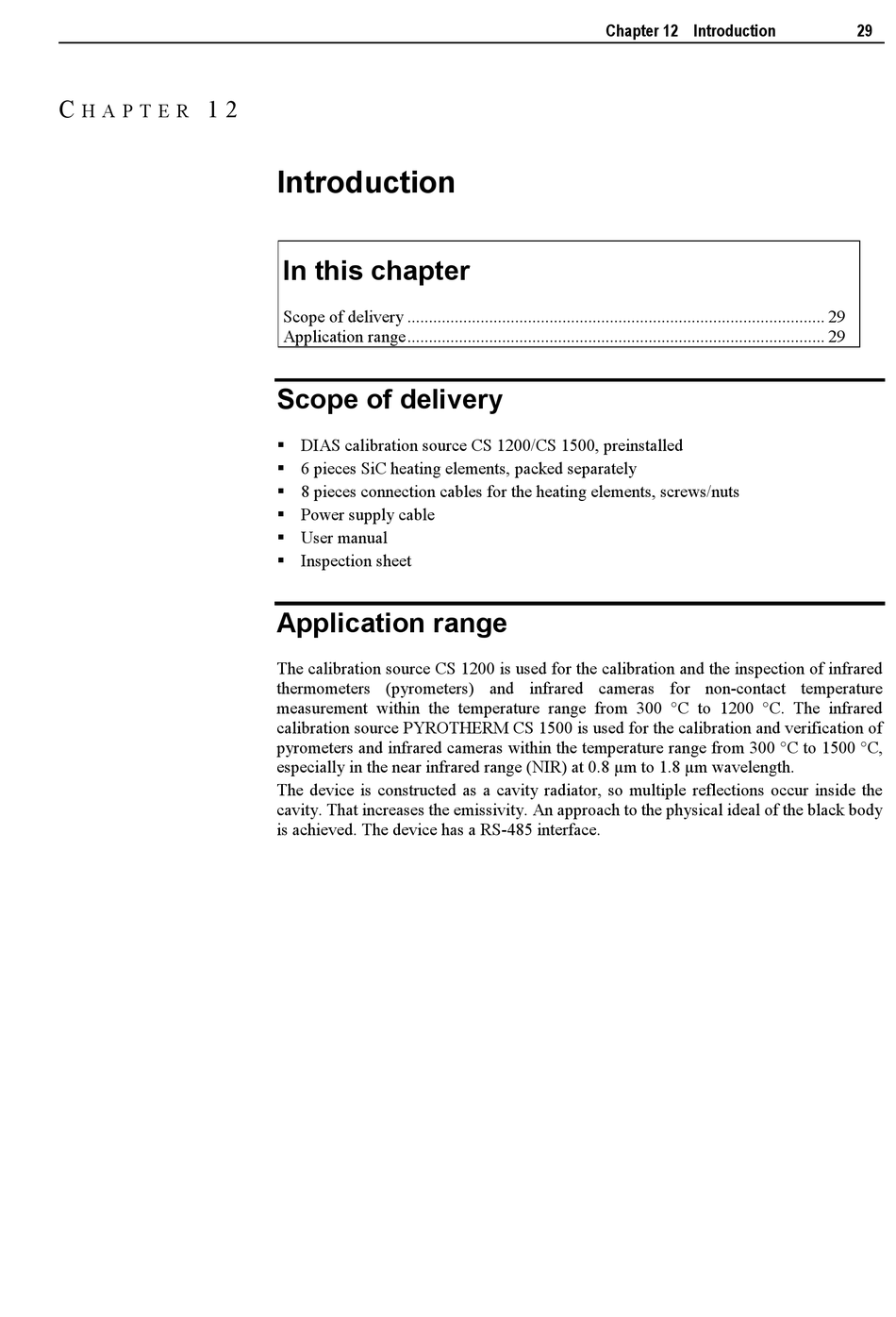

Introduction

In this chapter

Scope of delivery ................................................................................................. 29

Application range ................................................................................................. 29

Scope of delivery
 DIAS calibration source CS 1200/CS 1500, preinstalled
 6 pieces SiC heating elements, packed separately
 8 pieces connection cables for the heating elements, screws/nuts
 Power supply cable
 User manual
 Inspection sheet
Application range
The calibration source CS 1200 is used for the calibration and the inspection of infrared
thermometers (pyrometers) and infrared cameras for non-contact temperature
measurement within the temperature range from 300 °C to 1200 °C. The infrared
calibration source PYROTHERM CS 1500 is used for the calibration and verification of
pyrometers and infrared cameras within the temperature range from 300 °C to 1500 °C,
especially in the near infrared range (NIR) at 0.8 µm to 1.8 µm wavelength.
The device is constructed as a cavity radiator, so multiple reflections occur inside the
cavity. That increases the emissivity. An approach to the physical ideal of the black body
is achieved. The device has a RS-485 interface.
Chapter 12 Introduction 29
