Initial operation
Please check the scope of delivery according to the delivery note. Check the delivered
goods with regard to transport damages. If transport damages have occurred, please
inform immediately the carrier and the manufacturer. Please do not send damaged parts
back until the carrier has accepted the complaint. Keep the damaged parts and the
packaging ready for a possible inspection.
To reduce the risk of damage of the radiator during transport, the heating elements are
packed separately.

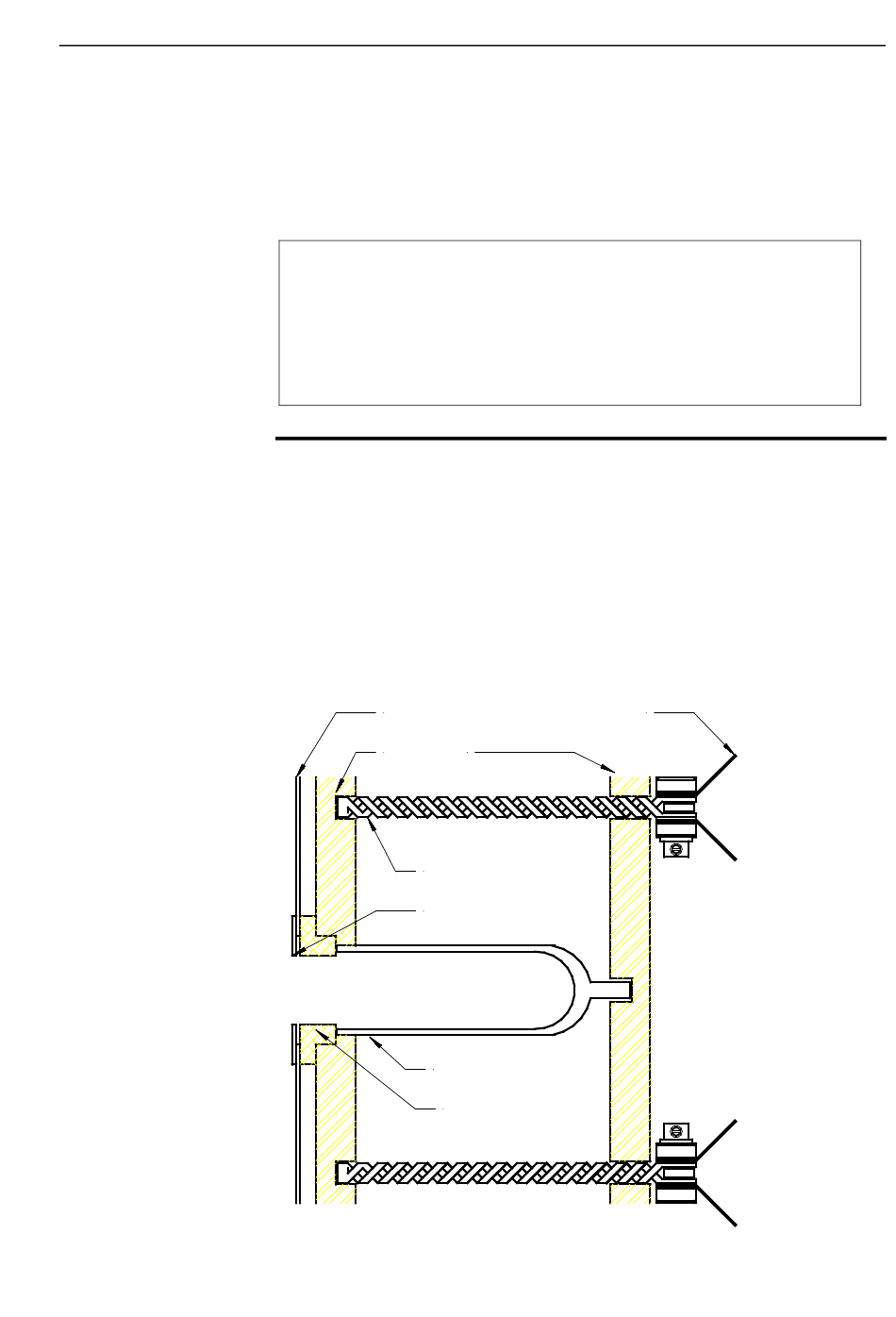

These parts should be mounted as follows:
Frontplatte
front plate
Isolation
ceramic insulation
Widerstandsheizelement SiC
resistance heating elements SiC
Metallring Front
metal ring front
Strahler Kavität Siliziumcarbid
radiation cavity silicon carbide
Frontisolationsring
front insulation plug
Anschlussfahnen
terminal connection
