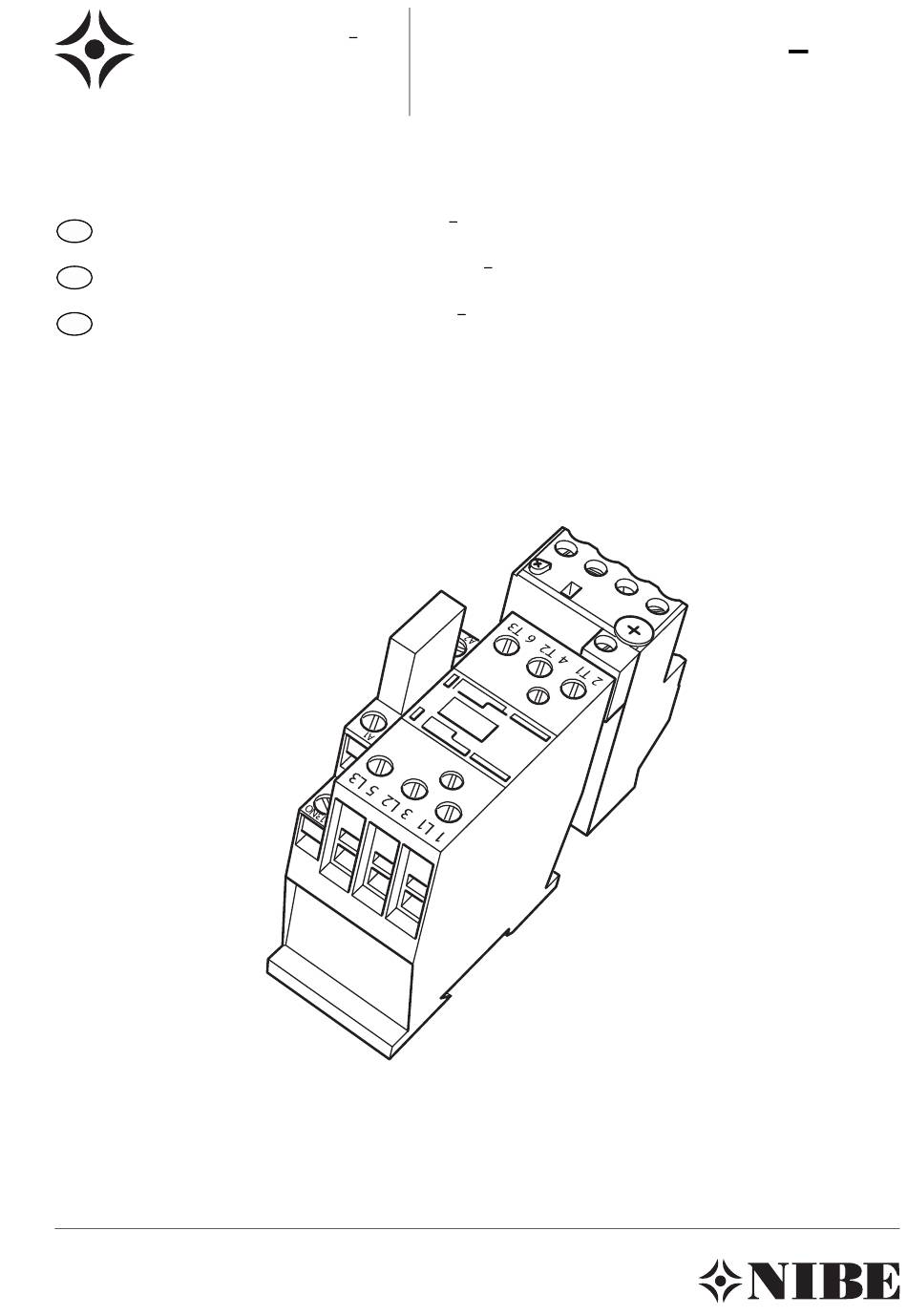

SERVICEINSTRUKTION - Motorskyddssats 10 16 A. Byte av motorskydd på NIBE FIGHTER 1110/1115/1120/1210/1220/1310/1320/1330. SERVICE INSTRUCTION - Motor protection kit 10 16 A . Replacement of motor protection kit on NIBE FIGHTER 1110/1115/1120/1210/1220/1310/1320/1330. SERVICE- INSTRUKTION - Motorschutzsats 10 16 A. Austausch Motorschutz bei NIBE FIGHTER 1110/1115/1120/1210/1220/1310/1320/1330.
Seite 3
SERVICEINSTRUKTION Motorskyddssats 10–16 A Allmänt Innehåll Motorskyddssats 10–16 A är framtagen för byte av motorskydd och kontaktor till NIBE FIGHTER Antal Beskrivning 1110/1115/1120/1210/1220/1310/1320/1330. Läs lämpligen 2 st Låsmutter M6M Loc-King M5 igenom hela denna instruktion innan arbetet påbörjas. 2 st...
Seite 4
OBS! All elektrisk inkoppling skall ske av behörig elektriker. Elektrisk installation och ledningsdragning skall utföras enligt gällande bestämmelser. FIGHTER 1110/1115/1120 Stäng av huvudbrytaren till värmepumpen och säkerställ att den är spänningslös. Demontera toppluckorna enligt nedan. Demontera den gamla kontaktorn (-K69 alternativt 68, be- roende på...
Seite 5
Komponentplacering FIGHTER 1110/1115/1120 Motorskyddssats 10–16 A...
Seite 6
FIGHTER 1210/1220 Stäng av huvudbrytaren till värmepumpen och säkerställ att den är spänningslös. Demontera luckorna enligt nedan. Demontera den gamla kontaktorn (-K69 alternativt 68, be- roende på modell) och motorskyddet (-F26 alternativt 26). Montera den nya kontaktorn och motorskyddet. Återanslut kablarna till den nya kontaktorn och motorskyd- det (se bifogat elschema).
Seite 7
Komponentplacering FIGHTER 1210/1220 I II III I II I II 5 0 . 0 V a r m v a t t e n t e m p . 1 .0 VB-Fram 49 (50) °C Varmvatten 51°C L E K Motorskyddssats 10–16 A...
Seite 8
FIGHTER 1310 Stäng av huvudbrytaren till värmepumpen och säkerställ att den är spänningslös. Demontera toppluckorna enligt nedan. 10. Starta värmepumpen och kontrollera att allt fungerar som det ska enligt monterings- och skötselanvisningen. OBS! Tänk på fasföljden! Demontera kontaktorerna (-K69A, -K69B) och motorskyd- den (-F26A, -F26B).
Seite 9
FIGHTER 1320/1330 Stäng av huvudbrytaren till värmepumpen och säkerställ att den är spänningslös. Demontera toppluckorna enligt nedan. 10. Starta värmepumpen och kontrollera att allt fungerar som det ska enligt monterings- och skötselanvisningen. OBS! Tänk på fasföljden! Demontera kontaktorerna (-K69A, -K69B) och motorskyd- den (-F26A, -F26B).
Seite 10
General Contents Motor protection kit 10–16 A is designed for replacing motor Quantity Description protection and contactors for NIBE FIGHTER 1110/1115/1120/1210/1220/1310/1320/1330 . Read all of Lock nut M6M Loc-King M5 these instructions carefully before starting work. Washer BRV 5, 3X10X1...
Seite 11
Electrical installation and wiring must be carried out in accordance with the stipulations in force. FIGHTER 1110/1115/1120 Turn off the main switch to the heat pump and make sure that it is disconnected from the power source. Dismantle the top covers as shown below.
Seite 12
FIGHTER 1110/1115/1120 component placement Motorskyddssats 10–16 A...
Seite 13
FIGHTER 1210/1220 Turn off the main switch to the heat pump and make sure that it is disconnected from the power source. Remove the covers as shown below. Dismantle the old contactor (-K69 or, alternatively, 68, de- pending on the model) and the motor protection (-F26 or, alternatively, 26).
Seite 14
FIGHTER 1210/1220 component placement I II III I II I II 5 0 . 0 V a r m v a t t e n t e m p . 1 .0 VB-Fram 49 (50) °C Varmvatten 51°C L E K Motorskyddssats 10–16 A...
Seite 15
FIGHTER 1310 Turn off the main switch to the heat pump and make sure that it is disconnected from the power source. Dismantle the top covers as shown below. 10. Start the heat pump, and check that everything works the way it should according to the Installation and Maintenance Instructions.
Seite 16
FIGHTER 1320/1330 Turn off the main switch to the heat pump and make sure that it is disconnected from the power source. Dismantle the top covers as shown below. 10. Start the heat pump, and check that everything works the way it should according to the Installation and Maintenance Instructions.
Seite 17
Allgemeines Inhalt Motorschutzsats 10–16 A wurde entwickelt für den Aus- Anzahl Beschr eibung tausch von Motorschutz und Schütz gegen NIBE FIGHTER 1110/1115/1120/1210/1220/1310/1320/1330 . Bitte lesen 2 St. Verschlussmutter M6M Loc-King M5 Sie diese Anleitung vor Beginn der Arbeiten vollständig durch.
Seite 18
Elektriker ausgeführt werden. Bei der Elektroinstallation und beim Verlegen der Leitun- gen sind die geltenden Vorschriften zu berücksichtigen. FIGHTER 1110/1115/1120 Schalten Sie den Hauptschalter für die Wärmepumpe aus und stellen Sie sicher, dass sie spannungsfrei ist. Demontieren Sie die Abdeckklappen wie unten angegeben.
Seite 19
Unterbringung der Bauteile FIGHTER 1110/1115/1120 Motorskyddssats 10–16 A...
Seite 20
FIGHTER 1210/1220 Schalten Sie den Hauptschalter für die Wärmepumpe aus und stellen Sie sicher, dass sie spannungsfrei ist. Demontieren Sie die Klappen wie unten angegeben. Demontieren Sie das alte Schütz (-K69 bzw. 68, abhängig vom Modell) und den Motorschutz (-F26 bzw. 26). Montieren Sie das neue Schütz und den neuen Motorschutz.
Seite 21
Unterbringung der Bauteile FIGHTER 1210/1220 I II III I II I II 5 0 . 0 V a r m v a t t e n t e m p . 1 .0 VB-Fram 49 (50) °C Varmvatten 51°C L E K Motorskyddssats 10–16 A...
Seite 22
FIGHTER 1310 Schalten Sie den Hauptschalter für die Wärmepumpe aus und stellen Sie sicher, dass sie spannungsfrei ist. Demontieren Sie die Abdeckklappen wie unten angegeben. 10. Starten Sie die Wärmepumpe und überprüfen Sie, dass alles ordnungsgemäß entsprechend der Montage- und Wartungs- anweisung funktioniert.
Seite 23
FIGHTER 1320/1330 Schalten Sie den Hauptschalter für die Wärmepumpe aus und stellen Sie sicher, dass sie spannungsfrei ist. Demontieren Sie die Abdeckklappen wie unten angegeben. 10. Starten Sie die Wärmepumpe und überprüfen Sie, dass alles ordnungsgemäß entsprechend der Montage- und Wartungs- anweisung funktioniert.
Seite 24
Elschema/Wiring diagram/Elektrischer schaltplan FIGHTER 1110 Tariff N L1 L2 L3 N L1 L2 L3 Läge 1 Läge R Motorskyddssats 10–16 A...
Seite 25
FIGHTER 1110 N PE T5AH 5 – 15 kW 3-fas 6 kW X22 L3 X22 L2 X22 L1 3 kW 4 kW 1-fas Motorskyddssats 10–16 A...
Seite 26
FIGHTER 1115 A1 A2 N L1 L2 L3 N L1 L2 L3 Motorskyddssats 10–16 A...
Seite 27
FIGHTER 1115 N PE T5AH -X200 -X200 6 kW X22 L3 X22 L2 X22 L1 3 kW Motorskyddssats 10–16 A...
