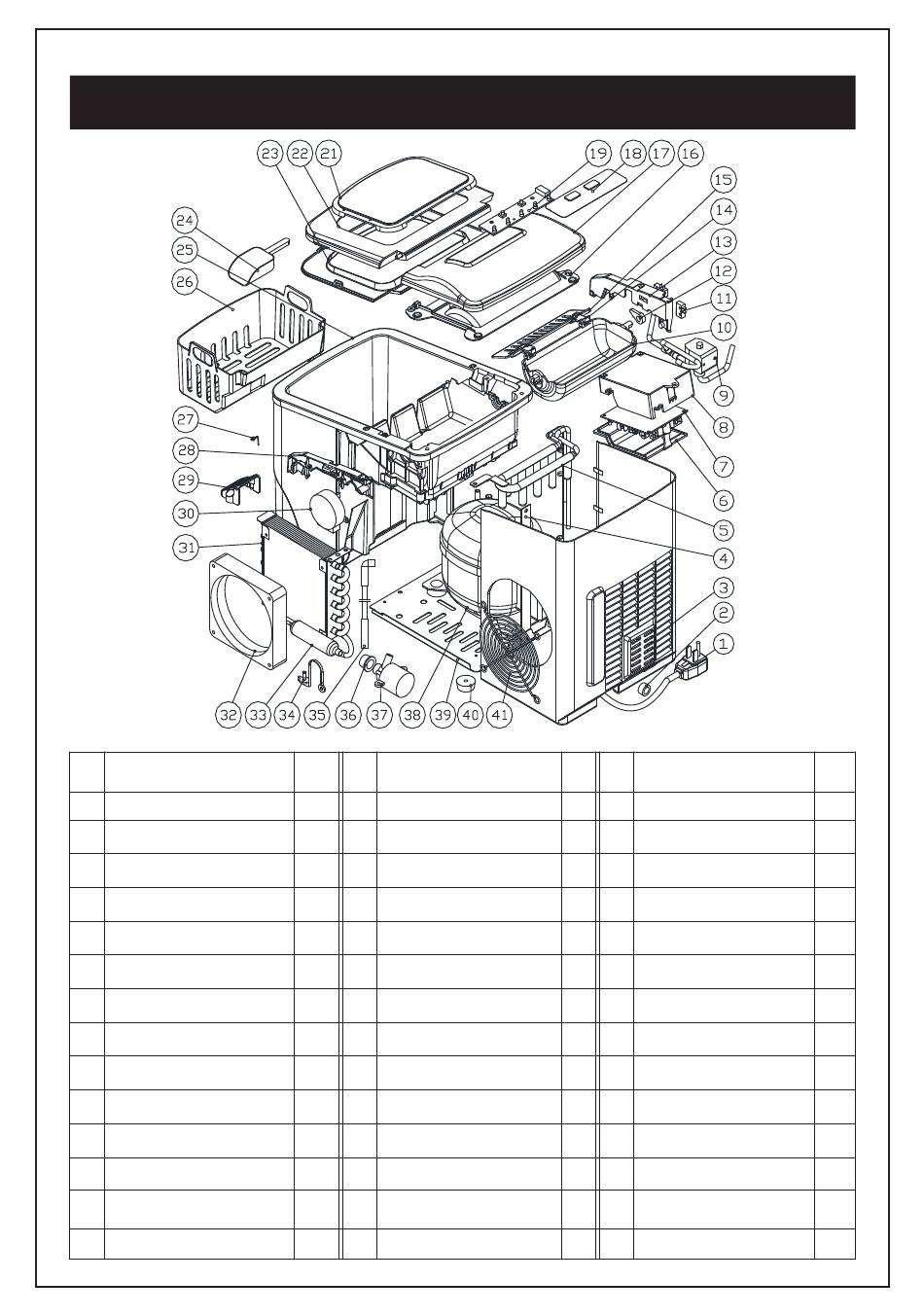

EXPLOSIVE DRAWINGS
S/N Part description
1 Power cord
2 plastic clip
3 Back panel
4
Plate back support
5 Evaporator
6 Control box cover
7 Main PCB
8 Control box
9 Magnetism valve
10 Ice making box
11 Micro switch
12 Cam
13 Inner tank bracket, LH
14 Ice scoop link
Qty/
S/N Part description
Per
1 15 Ice scoop
1 16 Back btm panel
1 17 Back top panel
1 18 Touch pad
1 19 Displaying PCB
1 20 Bracket displaying
1 21 Clear window
1 22 Front top panel
1 23 Front btm panel
1 24 Ice shovel
2 25 Foaming asm
1 26 Ice basket
1 27 Stainless wire
2 28 Inner tank brackt, RH
10
Qty/
S/N Part description
Per
1 29 Water filter
1 30 Sychronuous motor
1 31 Condenser
1 32 DC Fan motor
1 33 Copper tube filter
1 34 Nylon plug drain
1 35 Water Supply pipe
36 Silicon pump sealing
1 37 DC water pump
1 38 Compressor
1 39 Plate bottom
1 40 Rubber foot
1 41 Air grille
1 42 Internal Wire
Qty/
Per
1
1
1
1
1
1
1
1
1
1
1
2
1
1
