control unit

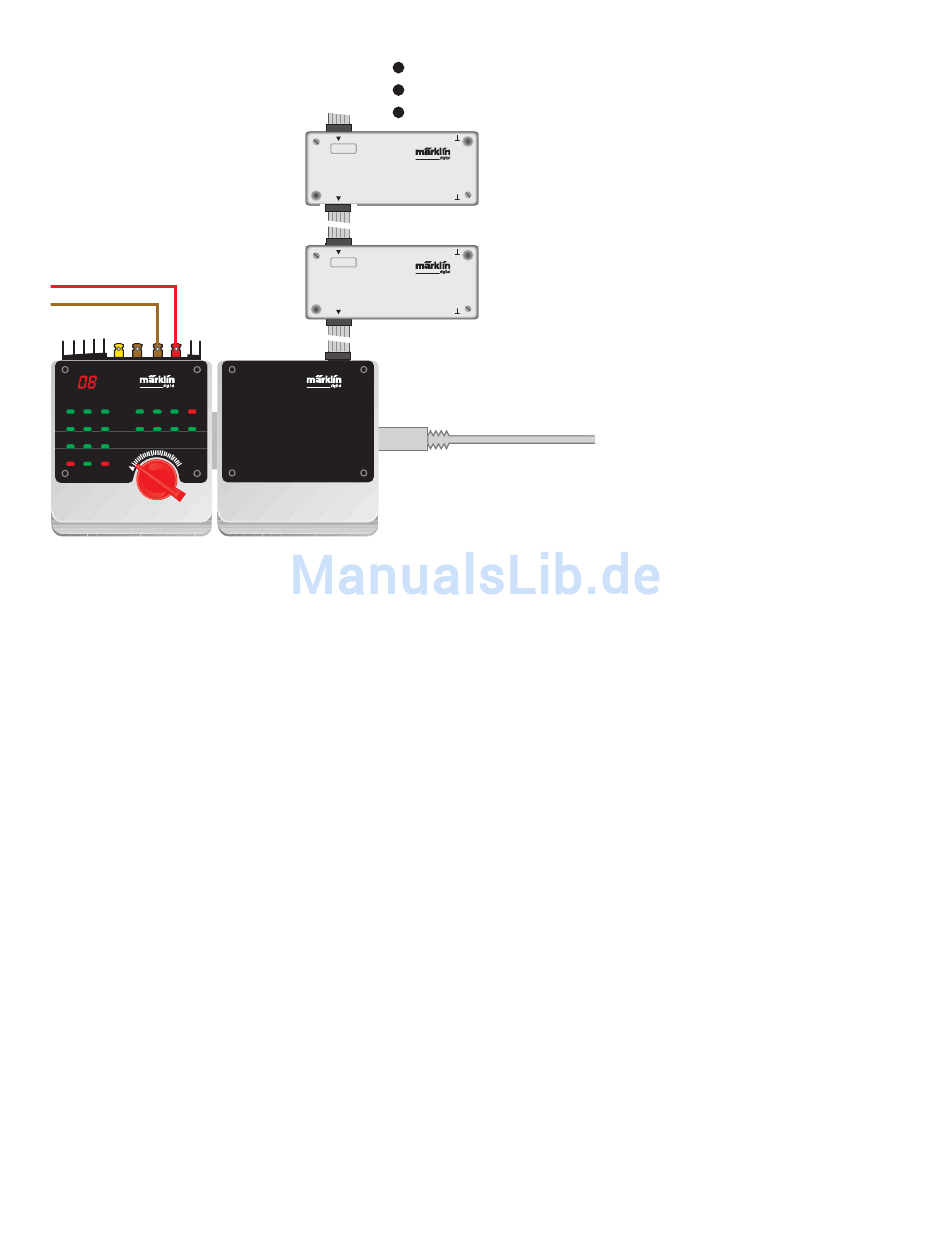

Connecting up to 31 s 88 decoders to the Interface. The arrows
on the s 88 decoders must all point to the Interface.
Important information:
• If necessary the special connecting cable included with the
decoder can be replaced by the 6089 cable which is
200 cm / 78-3/4". If more then 3 decoders are to be connected
one after the other, then you should not use this longer con-
necting cable.
• The minimum distance between the connecting cable for the
decoder and other wiring on the layout: 20 cm / 7-3/4".
• Suitable plugs and sockets for connections: 71400.
10
8 7 6 5 4 3 2 1
decoder s 88
9 10 11 12 13 14 15 16
8 7 6 5 4 3 2 1
decoder s 88
9 10 11 12 13 14 15 16
interface
Computer
