Blind rivet nuts Mandrels and anvils complete
M3 Mandrel for blind rivet nuts M3
Anvil complete for mandrel M3
M4 Mandrel for blind rivet nuts
Anvil complete for mandrel M4
M5 Mandrel for blind rivet nuts M5
Anvil complete for mandrel M5
M6 Mandrel for blind rivet nuts M6
Anvil complete for mandrel M6
M8 Mandrel for blind rivet nuts M8
Anvil complete for mandrel M8
M10 Mandrel for blind rivet nuts M10
Anvil complete for mandrel M10
M12 Mandrel for blind rivet nuts M12
Anvil complete for mandrel M12
5. Screw the mandrel on to the sleeve [to the backstop] and then turn it back, so
that the flats of the hexagons of the screw-plug gauge and sleeve are matching.
6. Slide on the anvil to the hexagons of the mandrel and sleeve.
7. Screw on the anvil to the front nozzle.
8. Set-up the anvil:
> for blind rivet nuts - the blind rivet nut is screwed on the entire length of the
thread on the mandrel and the front of the blind rivet nut leans on the anvil.
Fasten the position of the anvil with the counternut.
> for blind rivet bolts - set-up the anvil so that there is about 1 mm space
between the outer side of the puller and inner side of the anvil. Do it as follows:
screw on the anvil to the backstop to the puller and then screw it back one or
two turns. Fasten the position of the anvil with a counternut.
9. Basic stroke set-up as following [does not apply for all types of blind rivet nuts]:
Blind rivet nut M3 M4
Basic stroke [mm]
1.5 2
6
Spare part nr.
04D1400103
04S1400323
04D1400104
04S1400324
04D1400105
04S1400325
04D1400106
04S1400326
04D1400108
04S1400328
04D1400110
04S1400330
04D1400112
04S1400332
M5 M6 M8 M10 M12
2.5 3 4 5 6

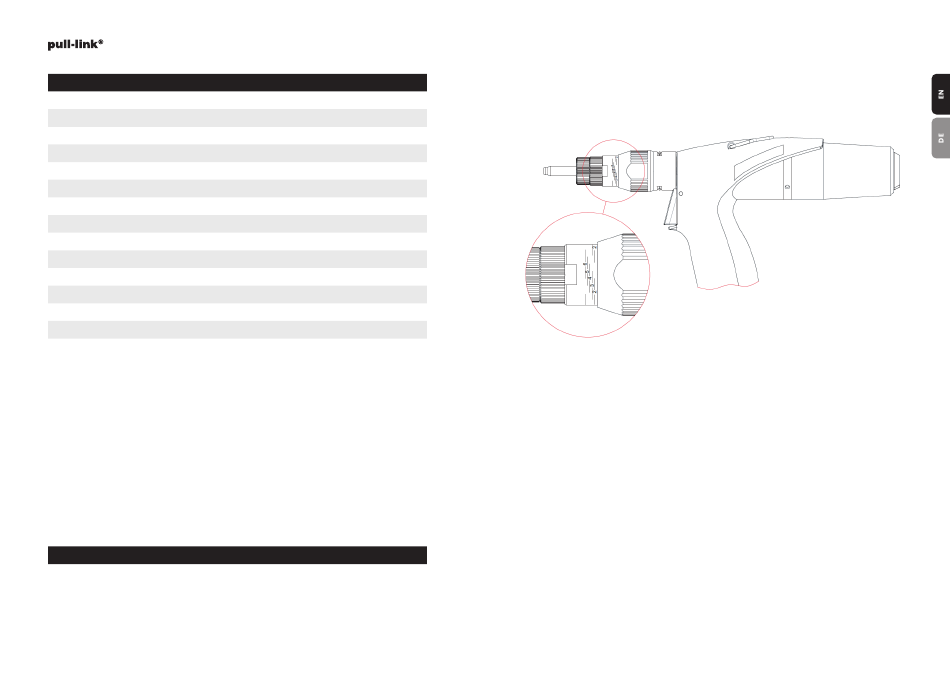

- to set-up the stroke turn the covering sleeve of the front nozzle, value of the stroke
are indicated between the scale on the body of the front nozzle and the edge of the
covering sleeve of the front nozzle, digits indicate the stroke into millimeters, see the
following picture:
10. Check the hand slide valve [main valve 2.1] on the tool. All devices in our
AS-SERIES can be quickly disconnected from the compressed air to check or
temporarily switch off the suction device. Turn this on with the slider to use the
tool. With the revolver system you can move the compressed air connection 360
degrees into any position.
11. Put the blind rivet nut/bolt on the mandrel/puller and push towards the anvil, this
will screw on the blind rivet nut/bolt.
12. Put the screwed blind rivet nut/bolt into the prepared hole.
13. Press the trigger and the blind rivet nut/bolt will be riveted in.
14. Relieve the trigger, the mandrel/puller will screw out from the blind rivet nut/bolt.
[if it is not fully screwed out, use the unscrewing button].
15. Check the fastened blind rivet nut/bolt.
> if the blind rivet nut/bolt is not fully fastened it is necessary to increase
the stroke.
> if the blind rivet nut/bolt is too fastened, which results in deformation of the
blind rivet nut/bolt and the mandrel/puller is hard to unscrew out from the
blind rivet nut/bolt, it is necessary to decrease the stroke.
16. Check the setting-up of the anvil according to step 8.
The tool, which is set up a prepared this way is ready for riveting.
